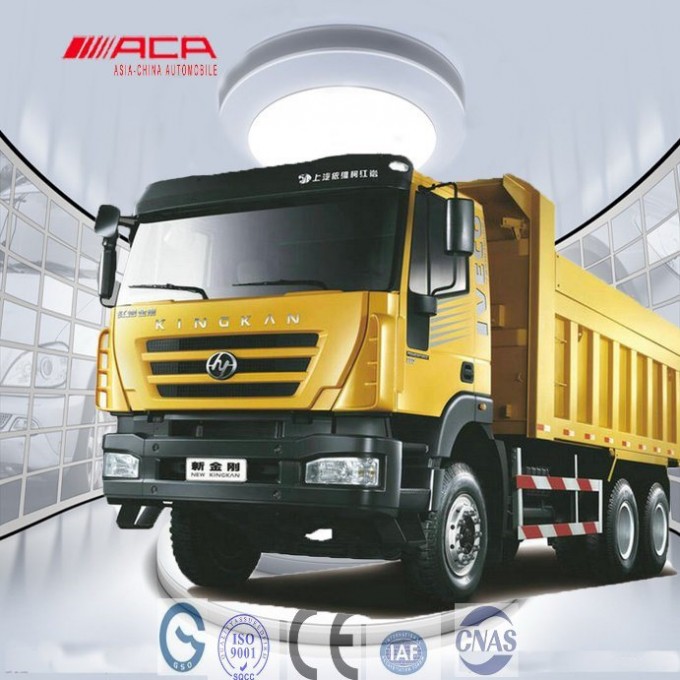

6X4 New Kingkan Heavy Dump Truck (WP10.340E32)

SAIC-IVECO HonGYAN Company is an experienced heavy duty truck manufacturer. based in Chongqing city, China, we design, manufacture a wide range of heavy duty trucks and special trucks based on heavy duty trucks such as tractor unit, dump truck, cargo truck, tanker truck, and some construction engineering vehicles like concrete mixer truck. SIH is based on China state owned enterprise.
SIH implemented a series of effective quality control measures , introduced advanced IVECO prototype vehicle technology, acquired state-of-the-art production and inspection equipment, employed experienced staff, and strictly implemented the ISO9001:2000 quality management system to monitor every production process. In addition, we provide continuous training to improve employee efficiency, which greatly reduces our production costs, thus enabling us to provide our heavy trucks at lower price.
Chongqing Asia-China Automobile Sales Co., Ltd is a leading sales company of heavy trucks and xcmg equipment products , related accessories,founded in 2002 China, which is one of the biggest authorized agents of Chongqing Hong Yan Automobiles.

We have twelve subsidiary company and offices in China and overseas. The average sales has reached to 2500 units per year in china while the export amount is more than thousands units. And the annual income has surpassed 80 million dollars.Because of excellent quality, flexible sales model, complete unit of accessories, our company set up impssive image in China automobiles field. Recent years, our company is dedicating in extending overseas market. Our products have exported to more than 20 countries, primarily to markets in Vietnam, Tadzhikistan, Saudia Arabia, Algeria, Congo, Nigeria and etc. At the same time, our sales and service team accumulated a lot of experience in international trade and established complete sales and service network in Africa and Central Asia. What's more, we enjoyed excellent reputation among our customers.



Saic-Iveco hongyan new kingkan dump truck:

1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, best after-sale services and mature spare parts system.

If you are interested in this model, please feel free to send your inquiry, and we will always be glad to quote.

TECHNICAL SPECIFICATION
NO.	SPECIFICATION	PARAMETER			NOTE
1	Model	CQ3254HMG414(A)
2	Cab	New KINGKAN Flat-roof cab, Left-Hand drive, with AC			Yellow/Red/White
3	Drive	6×4
4	Rated Payload(kg)	12620
5	Kerb Weight(kg)	12250
6	Gross Vehicle Weight(kg)	25000
7	Overall Dimension(mm)	8770×2500×3510(L×W×H)
8	Dump Box Dimension(mm)	5800×2300×1100(L×W×H)
9	Dump Box Volume (m 3 )	15
10	Thickness of Dump Box	Bottom 8mm,side 6mm
11	Lifting Cylinder	Hyva 150			Front lift
12	Max Speed(km/h)	94
13	Wheelbase(mm)	4075+1400
14	Engine	WP10.340E32			Euro III
15	Engine Output(HP)	340HP
16	Gearbox	12JSD160T			Fuller technology
17	Steering gear	Germany Technology ZF steering gear
18	frame	Outside width 865mm, longeron cross section 317x(8+8)mm
19	Front Axle	Iron Cast I-Shaped Axle, Capacity: 7000 kg
20	Driving axle	Full floating, double reduction with differential cast steel driving axle, Capacity:18000 kg
21	Tyre	12.00R20
22	Oil Tank	350L Aluminum-Magnesium Alloy

HonGYAN ConSTRUCTION VEHICLES-OVER ROUGH COUNTRY

Maximum transportation performance during multi-shift operations, extremely heavy loads, adaptability to rough terrain and high exposure to dust-construction vehicles have to stand up to the most demanding conditions. For more than 40 years, HonGYAN has been supplying construction trucks, and special usage trucks for all over the world and gotten a wide reputation because of timely service and good quality as below repsented,
l based on advanced European design and fashionable elements, the vehicle has got an imposing and impssing appearance, straight, strong and smooth, with every detail being so attractive and irresistible.
1) With a V-shape front face, the vehicle looks bold and magnificent.
2) The Italian painting technology of multiple coats and powerful anti-corrosion ability greatly adds to its grade and beauty.
3) Pressure sidewall air deflector is self cleaned, which can effectively avoid the splash and attach of spots from both sides of the cab.
4) Pressurizing-down Sunvisor is designed with low width, which not looks beautiful but effectively reduces the scrape of the branch.
5) Multi-function rear view mirror has wide vision and leaves no blind-spots, which are suitable for various road conditions and ensure safety.
6) Golden eye headlights are 30% brighter than vehicles of the same type of vehicle.
7) The three-piece combined metal bumper is more durable, with high ground clearance and good traffic ability.

l based on the concept of people oriented, NEW KINGKAN safety system and humanized driving cab make the driver safe and comfortable, bringing incomparable driving experience.
1) The maximum thickness of the body steel sheet of the cab is 1.5mm, which is 20%thicker than comparable models. 80% of body steel sheets apply double galvanized steel sheet, which is welded with high pcision and stamped completely, not easy to deform, and has strong collision resistance.
2) Short cab is configured with standard sleeper. It provides a comfortable environment for the driver to have a good rest and improve the working efficiency.
3) The roundabout instrument console ,DCS control panel, and functional keys are close enough to touch.
4) Two folding service covers are convenient for overhaul and can provide much operation room and save time and strength.
5) Card case is convenient for drivers to place various passing cards, fully embodying the humanized care. Pull and storage type cup holder is easy to open and close and convenient for drivers to place cup.
6) The rear view window in the cab has wide vision scope which is convenient for backing vehicles, lifting and loading and so on.
7) Electric window can be easily switched on and off and is convenient for adjustment.
8) Multi-angle steering wheel adjustment makes more flexible, rendering safe driving at the comfortable conditions.
9) Stereo type air conditioning system has 11 air outlets, which can realize refrigeration and heating in five minutes with low noise, strengthen the seal of the gas circuit connection, and reduce the flowing resistance of air.
10) The air external circulation filter can filter dust and guarantee a clean, quiet and comfortable driving environment.
l All the powr assemblies are subjected to strict working conditions tests, so as to ensure the easy running of the vehicles under all kinds of working conditions and greatly enhance the working efficiency. We provide engines and gearbox assemblies adapting to various working conditions for users to select, meeting your needs to the utmost extent.
1) The available engine brands: Cursor Power, WEICHAI Power, SHANGCHAI Power.
2) The available horse power scopes ranges from 270hp to 430hp.
3) The available engine torque scope: 1100-2100N/M.
4) The available gearbox brands: Fast, shangchi, the shifting life of the synchronizer exceeds 200000 times.
5) The available shifting scope of the gearbox is 9-12 shift, the backup coefficient of the static torque is greater than 3.5.
l We have established leading platform production method and modular management method according to the using environment of the dump heavy truck. Science and technology improves the working efficiency of the vehicle and make it more intelligent with longer life and the production easier and more confident.
1) Powerforce platform is the exclusive dump truck platform specially developed by SAIC-IVECO HONGYAN, which uses platform production method, popular parts, and modular complete vehicle management to allow the complete vehicle have shorter development cycle and faster updating speed, stronger scalability capability and lower maintaining and repairing costs.
2) Powerforce has strong driving forces, which means it is valiant and invincible with mighty strength. Characteristics of the platform: high bearing, high-tech, high-durability and high scalability.
3) The inclined cad shock-proof suspension can considerably absorb vibration, and guarantee a comfortable operation environment.
4) Three-tube cyclone intake system is equipped with cyclone vane, which can effectively filter 78% of dust in the air, remarkably reduce the damage to the engine by the unclear air, effectively enhance the efficiency of the engine and elongate the life of the engine.
5) The compensator of the exhaust system has an increased length, which is connected with the exhaust pipe by ball connector, so as to enhance the reliability of the compensator.
