ANKAI CITY BUS, NATURAL GAS DRIVEN, 30-31 SEATS, 10M LONG
1. active and passive safety protection
2. energy saving, low fuel consumption
3. excellent comfortability
4. humanistic design
5. anticorrosion technology
| Model | HFF6100G39C City Bus |
|---|
| Profile Dimension(mm) | 10320,10420×2500×2930,3140,3250 |
|---|
| Wheel base(mm) | 5000 |
|---|
| Track Space (mm) | 2020,2096/1830 |
|---|
| F/R Overhang (mm) | 2340/2980 |
|---|
| Kerb Mass (kg) | 9600 ,9800 |
|---|
| Maximum Total Mass (kg) | 15500 |
|---|
| Max Speed (km/h) | 90 |
|---|
| Max Gradeability (%) | ≥20 |
|---|
| Minimum Diameter of Turning Circle(m) | ≤20 |
|---|
| Ground Clearance(mm) | ≥210 |
|---|
| Approach/Departure Angle(o) | 8/8 |
|---|
| Fuel Tank(L) |
|
|---|
| Engine |
|---|
| Model | YC6J210N-30 | CA6SF2-21NE3 |
|---|
| Position | rear | rear |
|---|
| Displacement(L) | 6.5 | 7.127 |
|---|
| Rated Power(kw) | 155 | 155 |
|---|
| Fuel Type | NG | NG |
|---|
| Emission | EuroIII | EuroIII |
|---|
|
| Chassis |
|---|
| Transmission | QJ805 |
|---|
| Front Axle | AK153 |
|---|
| Real Axle | AK153 |
|---|
| Suspension | Power Steering |
|---|
| Steering System | Leaf Spring Front 4/Rear 5 or Air Suspension |
|---|
| Brake System | Dual-circuit Air Break |
|---|
| Tyre | 10.00-20,10.00R20,275 |
|---|
| Body |
|---|
| Structure | Monocoque |
|---|
| Door | F & R inward swing doors, F single R double door leaves |
|---|
| Seats Capacity | 30--31 |
|---|
| Air Conditioner | 28000Kcal/h |
|---|

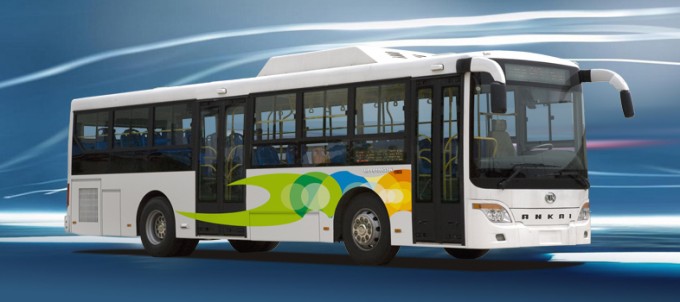

Product Image
