Light Cargo Truck with High Quality
1.WEICHAI Turbocharger Intercooler Engine
2.Drive Wheel:4*2
3.3800MM Strengthen Dumper box.
4.Radial Tyre options.
5.Air Brake.
6. Power Steering.

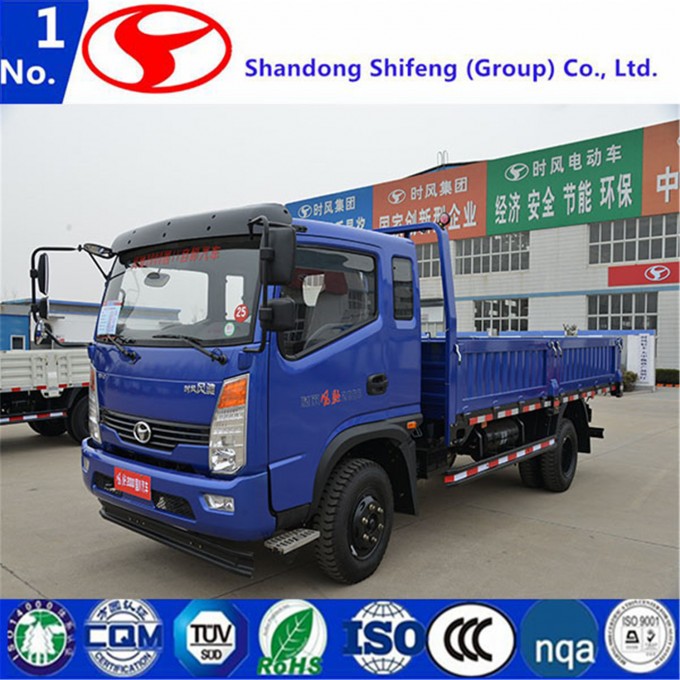

ShiFeng Light Truck
| ShiFeng Light Truck Specification |
| Brand | SHIFENG | SHIFENG |
| Item | FENGCHI 2000 | FENGCHI 2000 |
| Model | SSF1091HHP77 | SSF1100HHP88 |
| Cabin | ONE AND HALF CABIN | ONE AND HALF CABIN |
| whole vehicle main dimensions | Overall dimensions (L*W*H)mm | 7590×2350×2570 | 7965×2350×2570 |
| Dimensions of cargo body(L*W*H)mm | 5290×2150×550 | 5690×2150×550 |
| Driving type | 4×2 | 4×2 |
| Wheel base | 4140 | 4350 |
| Wheel track(F/R)mm | 1770/1600 | 1770/1600 |
| Min groud clearance (mm) | 210 | 210 |
| Weight data | Curb weight (kg) | 4310 | 4670 |
| Rated payload(kg) | 6000 | 8000 |
| Person in cab (persons) | 3 | 3 |
| whole vehicle main performance | Max.speed(km/h) | 100 | 100 |
| Max.slope of climb(%) | 25 | 25 |
| Min.turning radius (m) | 9 | 9.5 |
| Engine | Engine model | 4DX23-140E5 | 4DX23-140E5 |
| Engine type | Vertical,
water-cooled,
four-stroke,
turbocharged
and intercooled | Vertical,
water-cooled,
four-stroke,
turbocharged
and intercooled |
| Fuel injection equipment | Common-rail
with EDC +SCR | Common-rail
with EDC +SCR |
| Emission standard | Euro5 | Euro5 |
| Displacement (L) | 3.857 | 3.857 |
| Rated power (KW) | 105 | 105 |
| Max torque (N.m/rpm) | 450N.m/
1800-2000r/min | 450N.m/
1800-2000r/min |
| Steering gear type | Power steering | Power steering |
| Brake system | Service brake and boosting type | Air brake | Air brake |
| Parking brake | Central drum brake | Central drum brake |
| Auxiliary brake | Air brake | Air brake |
| Wheels and tyre size | 8.25-20/8.25-20 | 8.25-20/8.25-20 |
| Electric system | Rated voltage | 24V | 24V |
| Battery | 100Ah | 100Ah |
Main Features
1.Strong Power: Weichai 4105Turbocharger Intercooler engine, with Strong output and high torque.
2.Extra loading capacity: 8tons capacity.
3.Fuel consumption: economic, comparing lower than the current models.
4.Easily operation and maintenance: Spare parts and services are easily managed.
5.Technical supporting and Modification according to customers' requirements are available.
6.Driving Comfort: The vehicle cab interface adopts ergo
nomic design, thus reduces the fatigue of the driver.
Company introduction:
1.Shifeng Group Co., Ltd was established on 18th May, 1993 and is one of the leading companies of Chinese machinery industry.
2.There are 5industry parks of the company and all factories cover more than 335 hectares.
3.The total value of the company's assets is US$ 3billions till now and staff number reaches up to 30,000
4.The company is engaged in production and sale of 3-wheel trucks, low-speed trucks, LCV, electric vehicles, tractors, engines, combined harvesters, tires, nylon-6 cord fabrics and etc.. The selling quantity of Shifeng three-wheel truck ranks NO.1 for 16 years in the same industry of China, the low-speed trucks of Shifeng were sold in the first place for 13 years in the same industry in China.
5.There are 13 departments in charge of correspo
nding products and process in the company's R&D Center and the total number of engineers is a
bout 2500
6.Shifeng R&D Center is aCAD demo
nstration ba
se of 3-wheel trucks and low-speed trucks. The R&D center worked out more than 1000 R&D results and Chinese natio
nal patents.
7.The production abilities of pouncing, welding, painting, assembling, machining, casting and heat treatment of the company are all very advanced.
8.The company's sale distributors in China are more than 1500 and supplying vendors are more than 2000.
9.The company's products are sold not o
nly to all over China but also to more than 50 countries and areas including USA, Indonesia, Myanmar, India, Russia, Egypt, Nigeria, Liberia and etc.
10.The company's annual production capacity are 1.3 million of 3-wheel trucks, 80 thousand of LCV, 200 thousand of electric vehicles, 1.5 million of diesel engines, 300 thousand of tractors, 8.8 million of tires and 5thousand of combined harvesters.
Service
Pre-sales service
1, 24 hours o
nline .Your inquiry will be quick replyby email .
2,Professio
nally and patiently introduction,details pictures and working video to show machine .
3,Visting our factory.
Service on sales
1,Test every machine and inspect the machine seriously .
2,Send the machine picture which you order ,then packing it with standard export package after you co
nfirm the machine is ok .
3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time .Finally, send all original docu
ments to you by Expss. We will tell you the tracking number after we post the docu
ments.
After-sales service
1, 24 hours o
nline to solve any problem .Supply you English manual book and technical support ,maintain and install video to help you solve the problem, or dispatch worker to your factory.
2 Training how to install the machine, training how to use, maintain and repair the machine.
FAQ
1,What is the voltage/phase for this machine ?
220V 50Hz/single phase ,380V 50Hz/three phase .We also could produce according to customer's requirement.
2.What is your terms of payment?
T/T 30% as deposit, and &70% beforedelivery. We will show you the photos of the products and packages before you pay the balance.
3.What your terms of delivery?
EXW,FOB,CFR,CIF,DAF.
4.How a
bout your delivery time?
Generally, it will take a
bout 13 days after receipt of deposit payment. The specific delivery time depends on the items and the quantity of your order.
5 ,What's your MOQ?
1 set
6, How should Ido if meet some trouble while using?
We can supply English manual book and also take avideo for showing how to resolve the problems
or dispatch our worker to your factory.
