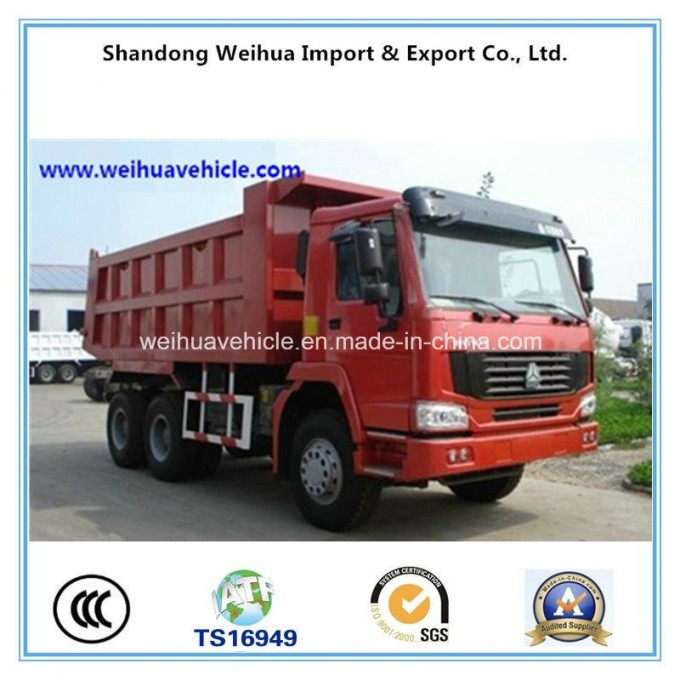

High Quality HOWO 6X4 Dump Truck, 371HP Sinotruck,

Truck Trailer HOWO 30 Tons Dumper Tipper 6X4 Dump Truck
TruckModel:ZZ3257N4347W
TruckBrand:SINOTRUK-HOWO
Dimension:9185x2496x3386
Cargobodysize(L*W*H,mm):6000x2300x1400
Cargobodythickness(mm):bottom:8mm,side:6mm,
LifttypeofCarriage:Frontlifting

1 Better aerodynamics with improved front
Improved aerodynamics : better fuel economy, which again improves your bottom line. Easy access for maintenance.
2 Ergonomically designed workspace
Ergonomically designed driver's seat: easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.
3 A comfortable ride with air suspended seats
Air-suspended driver and passenger seats: relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.
4 Ample power when you need it
WD615.47, Euro II emission standard,4 stroke direct injection diesel 6 cylinder in-line engine with water cooling, turbo-charging & intercooling. Maximum output: 371hp (273Kw) at 2200 rpm according to DIN and maximum torque 1500 Nm at at 1100~1600 rpm. Meanwhile , WD615.69,WD615.87,WD615.62 is optoinal

Contact
Mrs. Betty
Mobile : +86 15564131333

Here data is only for your reference.

TruckModel		ZZ3257N4347W
TruckBrand		SINOTRUK-HOWO
Dimension(LxWxH)		9185x2496x3386
Cargobodysize(L*W*H,mm)		6000x2300x1400
Cargobodythickness(mm)		bottom:8mm,side:6mm,
LifttypeofCarriage		Frontlifting
Approachingangle/Departureangle(°)		19/26
Overhang(front/rear)(mm)		1500/1739
Wheelbase(mm)		4325+1350
Maxspeed(km/h)		75
Curbweight(kg)		12290
LoadingWeight(kg)		25000
Fuel Tanker		300Lwithlockingfuelcap
Fuelconsumption(L/100km)		32
Clutch		Single-platedryclutchΦ420mm
Engine	Model	WD615.69,4-strokedirectinjectiondiesel engine,6cylindersinlinewithwatercooling,
	HorsePower,	336HP
	EmissionStandard	EUROII
Transmission	Model	HW19710,10forwardsand2reverse
Brakesystem	Servicebrake	Dualcircuitcompssedairbrake
	Parkingbrake	springenergy,compssedairoperatingon rearwheels
	Auxiliarybrake	Engineexhaustbrake
Steeringsystem	Model	ZF8098hydraulicsteeringwithpowerassistance
Frontaxle	HF9
Rearaxle	HC16
Tire	12.00R20
Electricalsystem	Operatingvoltage		24V,negativegrounded
	Starter		24V,7.35KW
	Alternator		28V,1500W
	Batteries		2*12V.165Ah
