1. Quick information

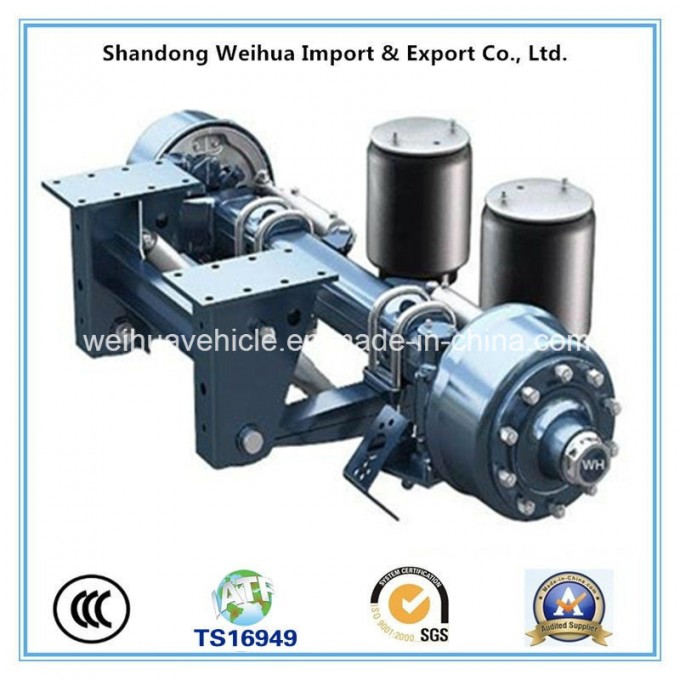

Item:11 Ton Professio
nal Air Suspension American Type for Semi Trailer
Rated load: 11000 kg
Axle lift: optional
Axle beam: dia.127mm or 150mm (spuare)
Leaf spring: 2-100 X 38mm
2. Here below is the detailed specification for your reference.
| Model | Axlelift | Ratedload(KG) | AxleBeam(mm) | Leafspring(mm) | Airbagspec. | L1(mm) | L2(mm) | H1(mm) | H2(mm) | H3(mm) |
| WHGA11-1 | NO | 11000 | Ø127 | 2-100x38 | 350 | 500 | 380 | 296 | 206 | 230 |
| WHGA11-2 | NO | 11000 | Ø127 | 2-100x38 | 350 | 500 | 380 | 296 | 206 | 335 |
| WHGA11-3 | NO | 11000 | Ø127 | 2-100x38 | 350 | 500 | 380 | 296 | 442 | 335 |
| WHGA11-4 | NO | 11000 | Ø127 | 2-100x38 | 350 | 500 | 380 | 276 | 210 | 257 |
| WHGA11-5 | YES | 11000 | Ø127 | 2-100x38 | 350,260 | 500 | 380 | 251 | 400 | 407 |
| WHGA11-6 | NO | 11000 | 150(square) | 2-100x38 | 350 | 500 | 380 | 231 | 400 | 413 |
| WHGA11-7 | YES | 11000 | 150(square) | 2-100x38 | 350,260 | 500 | 380 | 231 | 400 | 413 |
3. Production feature:
-- Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
-- High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
-- High performance pmium non-asbestos brake linings, estend serbice life.
-- Easy for ABS installation.
-- Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
-- New tight fit hub cap habe Orings, high property for sealing.
--Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
--Full range of stud fixing such as ISO, TS16949, it can meet the requirements of various wheel rims.
4.Scope of our business:
1. Lowbed Semi trailer, tanker trailer, co
ntainer semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)
