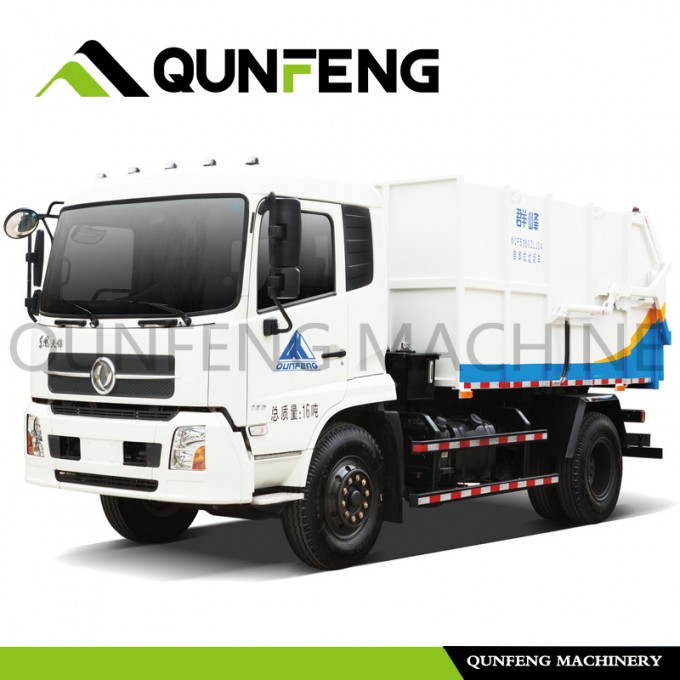

Dump garbage truck
Des
cription:
MQF5160ZLJD4 dump garbage truck is wholly sealed garbage dump truck, ba
sed on sanitary market demand. This truck is in good appearance, easy to manipulate and driving, flexible, and high reliability. It can match the LJYS100-CZ vertical compssion garbage transfer station, to be medium or large compssion transfer station.
Features:
1,The Garbage truck is with fully enclosed compartment, sealed back-door and sewage tank. Sealed transportation can eliminate waste and sewage spill, avoid seco
ndary pollution during transportation.
2,The garbage tank is welded by reinforced beams and steel board, which solid structure and light weight.
3,Using tipping discharge mode, dump angle more than 50 degrees, simple structure, fast and clean unloading.
4,Using advanced chassis modifications, low fuel consumption, high-quality turbocharged engine.
5,According to user's requirements, the car can choose im
port pumps, im
ported multi-valve and other groups.
6,The hydraulic system of lift car is equipped with explosion valve.
7,There are two modes of operation: in the cab or outside the cab.
Technical Specification:
| Model No. | MQF5160ZLJD4 |
| Chassis No. | DFL1160BXB |
| Engineer model/ power(kw) | ISDe185 40/136 |
| Outlet standard | IV |
| Wheelbase(mm) | 3800 |
| Distance from the tank to the floor(mm) | 1380 |
| Lifting angle(°) | ≥50 |
| Max. Speed(Km/h) | 90 |
| Outer size(mm) | 6822x2500x3075 |
| Tank Inner size(mm) | 4200x2202x1582 |
| loading weight(kg) | 7915 |
| Whole weight(kg) | 16000 |
Fully enclosed garbage bin and enclosed back door, of which design in good appearance.
Docking with the refuse station
The self-discharging angle is more than 50 degrees which enables quick and clean discharging.
