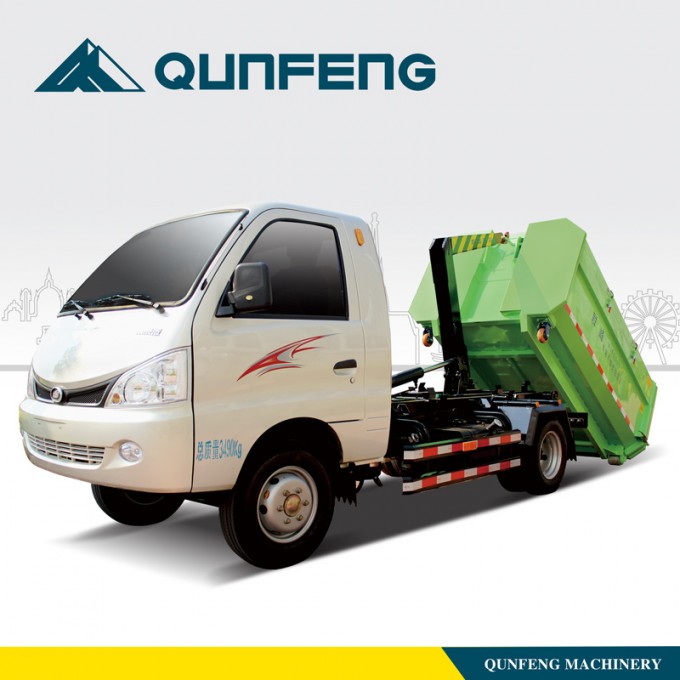

Garbage Truck with Detachable Carriage
Des
cription:
MQF5030ZXXH4 Garbage Truck with detachable carriage is used together with auxiliary garbage collection box (3-5m3). The technology and performance are in natio
nal advanced level, which achieved large garbage bins and garbage compssion transfer vehicle docking, avoiding junk transit seco
ndary landing, reducing pollution, especially for the urban fringe and town places.
Features:
1, using the well-known brand mini-car chassis and arm assembly, the technology is mature, stable, and reliable.
2, low maintenance costs, operation and maintenance is simple and convenient.
3.Garbage bin can be apart from truck, one truck can work with multiple bins which lessen the vehicle's configuration, improve transport efficiency and reduce operation cost.
4, small size is suitable working in narrow countryside lanes and residential roads
5. garbage collection point to point mode and proceed with FCL, improve transport efficiency, also reduce pollution due to garbage exposed to the environment.
Technical da
ta:
| Model | MQF5030ZXXH4 |
| Chassis Type | YTQ1036D20FV |
| Engine Model/Power(kW) | 4A1-68C43/50 |
| Emission Standards | GB IV |
| Dimensions(mm) | 4922x1710x2262 |
| Maximum Weight(kg) | 3490 |
| Wheel base(mm) | 2700 |
| Hook lifting capacity(kg) | ≥1500 |
| Garbage bin volume(m³) | 3 |
| Garbage bin dimension(mm) | 2555×1655×1335 |
| Garbage bin weight(kg) | 543 |
Hook load or unload garbage bin
Garbage collecting bin self-discharge
The garbage bin can be put on the road to collect garbage.
