8X4 Tipper Truck, Dump Truck (QDT3310CZ74) (Strenthened type)

8X4 Tipper Truck, Dump Truck (QDT3310CZ74) (Strenthened type)

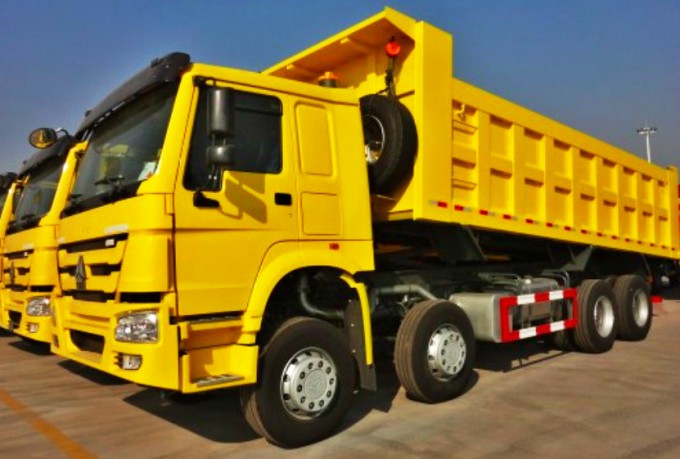

HOWO 40-50 Tons Tipper Truck 8X4 Dump Truck

Specifications
Tractiontype:8X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO extra length cab, Air Conditioner. flat head, double doors, tippable, one sleeper
Engine brand: SINOTRUK
Engine model: WD615.47
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling Displacement: 9.726 liters
Max. output:371hp@2200rpm
Max torque:1460NM@1400-1600rpm
Bore/Stroke(mm):126/130
Mean Position Speed: 9.53m/s
Compssion ratio:15.5:1
Specific fuel consumption: 198g/Kwh
Gear box:
Model: HW9 (SINOTRUK) - HOWO HW19710 10 Speeds
Clutch:
Model: 430 imported diaphragm type
Steering:ZF8098Technology from Germany
Front axle: HOWO front axle 9tons
Rear axle: HC16 (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock)
Tyre: 12.00-20 (rim: 8.5-20)
Spring: 14/13, 14/12,13
Fuel consumption (L/100km): 36
Fuel tank capacity (L): 200
Max. speed (km/h): 75
Max. gradeability(%): 25
Kerb. mass: 14610kg
Total mass: 25000kg
Wheel base (mm): 1800+2800+1350
Front overhang (mm): 1500
Rear overhang (mm): 1695
Front track (mm): 1500
Rear track (mm): 1870
Turning circle diameter: 24m
Dimension (mm): 10145x2496x3237
Body:
Inner size(mm): 6200x2300x1500
Capacity:21.4m3
Thickness of body steel(mm): floor 8mm side & back 6mm
Tipping type: Front tipping type( in front of the body with HYVA tipping system Holland technology )


Main specification

Model	ZZ3317N4067C1
Parameters	Overalldimension	10655X2496X3450mm
	TotalMass(kg)	31000
	PayloadMass(kg)	15770
	KerbMass(kg)	15100
	Approachangle/Departureangle(mm)	19/22
	Frontsuspension/rearsuspension(mm)	1500/2005
	FuelType	Diesel
	MaxSpeed	75
Engine	Type	WD615.95E
	EmissionStandard	Euro3
	Horsepower	375HP
	Displacement/Power(kw)	9726/247
	Wheelbase(mm)	1800+4000+1350
	Cab	2person
	Numberofspringaxle(front/rear)	11/11/12,11/11/-
	TireType	11.00-2018PR
