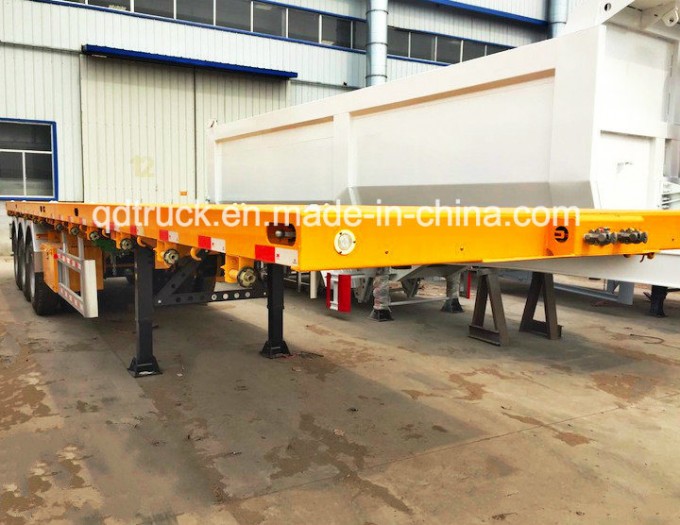

Hot sale! 40ft Co
ntainer trailer truck
Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes
500mm Height, Top Flange 14mm, width 140mm; Middle Flange 6mm; Bottom Flange 16mm, width 140mm
1)Floor:
Steel Sheet 3mm thickness
2)Axle
Three Units German or American Styre axle
3)Suspension
A couple of FUWA(Brand) mechanical 3-axle suspension
4)Leaf Spring
Eight sets of reliable local brand, 7-piece leaf spring, 16X90mm
5)King Pin
One unit of 2Inch standard welded kingpin
6)Landing Gear
Two-speed, manually operating, heavy duty landing leg
7)Wheel Rim
Thirteen units of 8.25*22.5 rim
8)Tyre
Thirteen units of 11R22.5 Tubeless tyre
9)Twist Lock
12 sets ISO twist lock
10)Spare Wheel Carrier
One set of spare wheel carrier including ariser.
11)Pneumatic Braking System
Two unit of WABCO RE 6relay valve; Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, Two unit of reliable local brand 40L air tank; Two units of reliable local brand standard coppery air-connector.
13)Electrical System
One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light &reflector, side lamp etc.
One set of DAFA(brand )6-pin standard Cable.
14)Painting Sand blasting processing clean rust
1. Coat of anticorrosive primer
2. Coats of finish urethane paint
3. Color as customer choice
15)Accessory
One tooling box with whole set of standard trailer tool
| Technical Specifications |
| Dimensions (L*W*H) mm: | 12375*2480*1510 |
| Fifth Wheel Coupling Height (mm): | 1200 |
| Loading Plate Height (mm): | 1430 |
| Front overhand (mm): | 900 |
| Number of wheel: | 3 |
| Wheel space (mm): | 7000+1356+1356 |
| TyreSpecification: | 10.00-20 |
| Steel rim: | 7.5-20 |
| Number of Tyre (pcs): | 12 |
| Tare Weight (kg): | 6000 |
| Rated Payload (kg): | 40000 |
| Total Mass (kg): | 48000
|
