[Main Technical Parameter] | |||
Chassis Brand | DONGFENG | Batch No. | 257 |

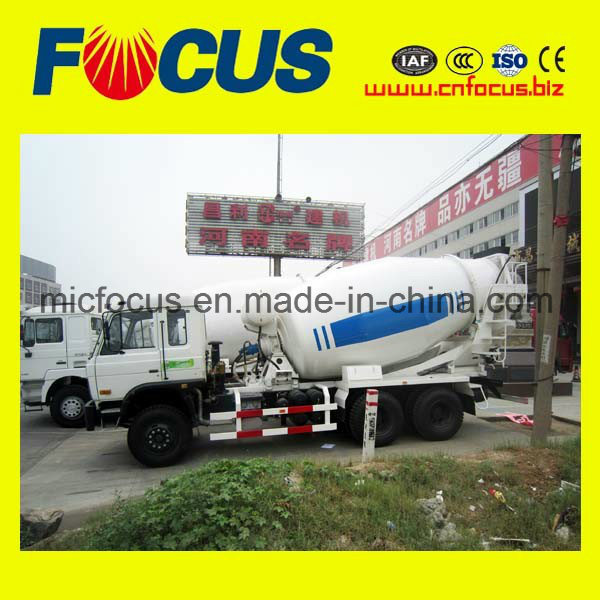

Product Name | DLQ5150GJBG4 Concrete Mixer Truck | Truck Model | ZL2S54D701L |
Total weight(Kg) | 14960 | Tank Volume(m3) | 4 |
Rated Load(Kg) | 8785 | Dimension(mm) | 6650x2460x3380 |
Curb Weight(Kg) | 5980 | Passenger(person) | 3 |
Approach angle/departure angle(°) | 22/20 | Front overhang/rear overhang(mm) | 1180/2070 |
Axel No. | 2 | Wheelbase(mm) | 3400 |
axle load (Kg) | 5050/9910 | Max. Speed(Km/h) | 90 |
Other | Mixing Volume:3m3 Material of side and below protective device:Q235-A, Connection type: Bolt Connection Height of back protective device:510mm | ||
[Chassis Parameter] | |||
Chassis Model | EQ1168GLJ3 | Brand | DONGFENG |
Dimension(mm) | 6570x2100x2550 | Quantity of Tire | 6 |
Approach angle/departure angle(°) | 22/17 | Tire specification | 8.25-16 |
Steel Spring No. | 9/11+8 | Front Tread(mm) | 1810 |
Fuel | Diesel | Back Tread(mm) | 1800 |
EMISSION STANDARD | Euro III | ||
Engine Model | Engine Manufacturer | Displacement(ml) | Power(Kw) |
YC4D140-45 | Yuchai Machinery Co.,Ltd | 4214 | 103 |
