Detailed Description
Boom length of co
ncrete boom pump truck:
24m, 37m, 39m, 42m 45m, 48m 52m
Features of FOCUS 24m small co
ncrete boom pump truck:
1. Large pumping capacity with high efficiency;
2. Light-weighed and optimized design enables FOCUS small co
ncrete boom pump truck small occupation of ground area;
3. Low oil consumption, eco
nomic engineered;
4. Full hydraulic system guarantee stable pumping performance;
| Model | HDT5180THB-24/3 | Chassis Model | SX1165TN561 |
| Total Weight | 18460kg | Driving Mode | 4x2 |
| Max. Driving Speed | 92km/h | Driver Cab with Air Conditioner, Sleeping Room |
| Wheel base | No.1 & No.2 | 5600 mm |
| shape | Total Length | 13740mm | No.2 & No.3 | 1310mm |
| Total Width | 2490mm | Wheel Tread | Front | 2065mm |
| Total Height | 4000mm | Rear | 1850mm |
| Engine | Engine Model | Weichai Power WP10.290 | Tire Size | 12.00R20 Radial Tire |
| Mini. Turning Radius | 8800mm |
| Driving Brake | Double Loop Air Brake |
| Power | 290PS(213KW) | Boom
System | Model | 3 section, Folded, Hydraulic |
| Max. Torque | 1055NM | Max. Height | 23.1m |
| Emission Standard | EU III | Pipe Diameter | DN125 |
| Displacement | 9726ML | Section1boom | Length | 8220 |
Pump
Delivery
System | Driving Mode | Hydraulic | Rotation | 910 |
| Oil cylinder DiameterxStroke | φ140mmx2000mm | Section2boom | Length | 5680mm |
| Delivery cylinder DiameterxStroke | φ230mmx2000mm | Rotation | 1800 |
| Distribution Vale | S Valve Mode | Section3boom | Length | 5215mm |
| Concrete Output in Theory | 100/70m3/h | Rotation | 2680 |
| | |
| Rotation Range | Any Angles |
| Pump Delivery Times in Theory | 19times/min | Max. Working Radius | 19.1 m |
| Max. Working Height | 23.1 m |
| Hydraulic System Pressure | 32MPa |
| Lubrication | Grease self-lubrication |
| Bucket Capacity | 0.7M3 | Oil Tank Capacity | 1000L |
| Outrigger span | 4550x2280x6030 | Pipe Clean Mode | Water/Dryer |

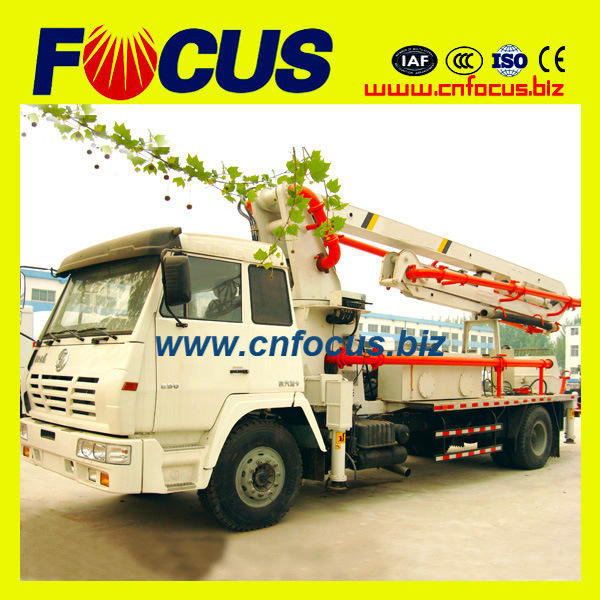

Product Image
