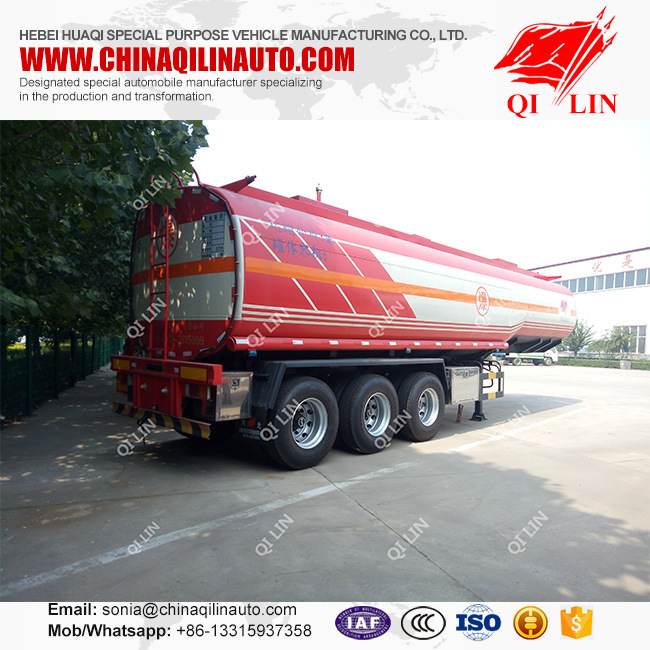

BPW axles REMOLQUE CISTERNA de 35 cbm for benzene stroage
| Dimension | |
| Trailer Model | QLG9409GRY | |
| Material | q235b carbon steel | |
| Overall dimensions:(mm) | 9800*2500*3600 | |
| Tanker Body Dimension(mm) | 9000*1850*1850 | |
| Tare Weight(KGS) | 8000 | |
| Curb Capacity(cbm) | 22000 liters | |
| Function | Loadbenceno | |
| Main beam | 220mm height ,middle is 8mm ,down plate is 10-16mm | |
| Tanker Body | Tank Body is 5mmm,The front and end plate is 6mm,
Baffle is 4mm | |
| Chamber | 1 piece | |
| Manhole Cover | Diameter:450-500mm (2 pieces) | |
| Running construction | |
| Axle | BPW/fuwa13T | |
| Axle number | 3 pieces | |
| Tyre | 315/80R22.5/ 12R22.5 | |
| Tyrenumber | 13 pieces | |
| Rim | 9.0-20/13 pieces | |
| Kingpin | Interchangeable 90# &50# | |
| Landing gear | JOST C200/ optional | |
| Suspension | mechanicalsuspension | |
| Leaf Spring | 90mm*13mm*10pcs/6sets | |
| Discharge valve | DN100/1pieces | |
| Emergency valve | 1pieces | |
| Discharge pipe | 2 pcs,8meters each side tube | |
| Fire extinguisher number | 2 | |
| Spare wheel carrier | 1 standard | |
| Water tank | 30L | |
| Tool box | 1 standard | |
| Braking System | With WABCO ABS system | |
| Electrical system | Standard electrical equipment | |
| Painting | Outside of the tanker uses the special painting which is able to
Bear high temperature, and it is antisepsis | |
| Color | Customer required | |
| Packing | Nude,Polish with Wax before Shipment | |
| Remark | the Specification is only for your reference | |
|
Packaging &Shipping
1.Nude,polish with water wax before shipment.
2. 40HQ ,Ro-Ro ship and bulk ship transport.
OurService
*When the semi-trailer psents amanufacturer's defect, our engineers willpsent help for you.
*Semi-trailers and their accessories will be sent to you as soon as possible.
*Lifelong technical consultation.
Company Information
1.Hebei Huaqi Special Purpose Vehicle Manufacturing Co., Ltd. was established in 1956,with more than 60 years experiences of making trailers.
2.We have more than 300 employees,including 24 technical engineers and 18 senior engineers .
3.We are one of the biggest manufacturers in China. We have got ISO9001:2008,CCC Natio
nal Compulsory Certificate.
4. "Qi Lin" is afamous brand in Hebei province, China.
Welcometo visit our factory !
1. We can pick you up in the airports.
2. We'll reserve the hotel for you.
3. Show you around the workshop and production line.
4. We can supply the truck parts.
5. We can supply the stocked trucks if you need the trucks urgently.
FAQ
1. Can Ihave atrailer sample to test the quality?
Yes, you can buy any sample to test the quality, our starting unit is 1unit.
2. How much can the delivery time be reduced?
It depends on the order. The delivery time is usually within 20 business days after receive your ppayment. Ifyou have abig order, the price can benefit.
3. Can you provide some trailer parts?
Yes, we can provide trailer accessories such as traction, traction pin, balance beam and semi-trailer spring, suspension accessories, turntable, all kinds of trailer brakes, brake discs, bearings and so on.
4. What is the payment method?
TT 30% as deposit, the restsettled before shipment.
5. Do you have any used trailers for sale?
We have alot oftrailers in store from 2012 ton 2016, the price is economical.
6. How can ensure the delivery after customer's ppayment?
Don't worry. We've joined Alibaba's trade guarantee. If we do not provide trailers, the deposit will be returned.
7. How can ensure the quality?
Don't worry. We have joined Alibaba's trade guarantee. If the product psents quality defects,customer will get compensation.
