Obt Fruehauf Trailer Axle with Factory Price

OBT fruehauf trailer axle with factory price

OBT axle Features:

1.OBT axle beam use 20Mn2 seamless pipe, through one-piece pss forging and special heat-treatment, which has great over loading capacity and high intensity.

2.OBT axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.

3.OBT axle spindle is connected by the by submerged -arc welding, which make the whole beam more reliable and solid.

4.OBT axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.

5.OBT axle grease lubricant is supplied by EXXON Mobile which could provide high lubricating performance and protect bearing well.

6.OBT axle brake lining is high performance, non-asbestos, non-pollution and long service life. To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.

7.OBT Axle bearing is adopted famous brand in China, with the advantages of over loading capability, High rotating speed, good intensity, abrade resistant and heat resistant.

8.OBT Axle wheel hub and brake drum use the international standard material of ball iron and gary iron separately, which has the advantages of over loading capability, abrade resistant, heat resistant and do not distort.

9.OBT axle be National Automobile Monitor and Inspe ction Center certified ,axle shaft that undergoes over 1.2 million times of Fatigue testing and built to meet or exceed national industry standards.

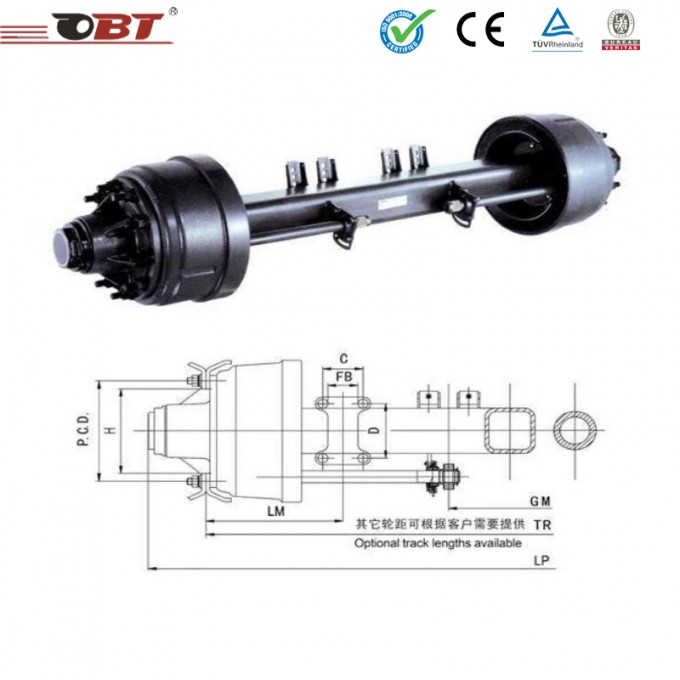

Semi Trailer Axle Specification:

Model

Max. Load

"S"cam Brake Series φ× Width

TR

LM

Axle beam

GM

Stud

P.C.D

φH

LP

Recomm ended Wheel

Weight

Bearing

kg

mm

mm

mm

mm

mm

mm

mm

mm

kg

OBTO2001

8000

S420 ×150

1850

≤435

Ο127

428

10×M22 ×1.5ISO

335

281

~2145

7.50V-20

~323

33215 /33213

OBTO2023

10500

S420 ×180

1820

≤435

Ο127

368

10×M22 ×1.5ISO

335

281

~2165

7.50V-20

~363

(Outer) HM518445 /10 (Inner) HM518445 /10

OBTO2024

10500

S420 ×180

1820

≤435

Ο127

368

10×M20 ×1.5JAP

285.75

221

~2165

7.50V-20

~359

OBTO2026

10500

S420 ×180

1820

≤435

Ο127

368

10×M22 ×1.5ISO

285.75

220.1

~2165

7.50V-20

~356

OBTO2023 B11

10500

S420 ×220

1840

≤435

Ο127

325

10×M22 ×1.5ISO

335

281

~2165

7.50V-20

~365

OBTO2423

13000

S420 ×180

1840

≤455

◊150

390

10×M22 ×1.5ISO

335

281

~2185

7.50V-20

~350

(Outer) HM518445 /10 (Inner) HM518445 /10

OBTO2424

13000

S420 ×180

1840

≤455

◊150

390

10×M20 ×1.5JAP

285.75

221

~2185

7.50V-20

~363

OBTO2426

13000

S420 ×180

1840

≤455

◊150

390

10×M22 ×1.5ISO

285.75

221

~2185

7.50V-20

~361

OBTO2423 B11

13000

S420 ×220

1840

≤455

◊150

354

10×M22 ×1.5ISO

335

281

~2185

8.00V-20

~365

OBTO2023 AD

15000

S420 ×180

1850

≤455

Ο127

396

10×M22 ×1.5ISO

335

281

~2185

8.00V-20

~385

(Outer) HM518445 /10 (Inner) HM220110 /49

OBTO2423 AD

15000

S420 ×180

1850

≤455

◊150

396

10×M22 ×1.5ISO

335

281

~2185

8.00V-20

~365

OBTO2062 B11

16000

S420 ×220

1850

≤455

Ο127

354

10×M22 ×1.5ISO

335

281

~2185

8.00V-20

~410

OBTO2462 B11

16000

S420 ×220

1850

≤455

◊150

354

10×M22 ×1.5ISO

335

281

~2205

8.00V-20

~410

OBTO2482 B11

20000

S420 ×220

1850

≤455

◊150

354

10×M24 ×1.5ISO

335

281

~2270

8.50V-20

~455

(Outer) HM518445 /10 (Inner) HM32222

Semi Trailer Axle Photos:








Packaging & Delivery:

1. Standard package for shipping in containers.

2. Naked or pallet.

3. Offer the best packaging solution to decrease transportation cost and give you the very competitive price.

4. Support transit report with pictures.

One-stop Service:

1. Professional Production Team:
More than 300 Experinced workers, provide clients high assembling for fast quality delivery.

2.Customize:
Professional design team provide suitable programs and customized, support local adaptive trailer.

3. 7*24h Service
7*24h service provide professional fast response.

4. Parts Support:
Abundant parts supply provide lasting support for worldwide clients.

5. DDP Logistic Transport:
Deliver to client anywhere in the worldby best logistic supplier.

Company information:

OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In

2007,we merged the company CSRS for air springs ,also in 2007,built our trailer company B&C in Australia in 2010,we

built our branch company SCG in Singapore in 2012, in order to expand our business areas ,we build our tyre branch

ZERMATT in 2013,special for tires. After 18 years of pioneering spirit, it has developed into an important vehicle and

auto parts production base and export base.
