Saic-Iveco ho
ngyan new kingkan dump truck:
1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, bset after-sale services and mature spare parts system.
If you are interested in this model, please feel free to send your inquiry, and we will always be glad to quote.
| TECHNICAL SPECIFICATION |
| NO. | SPECIFICATION | PARAMETER | NOTE |
| 1 | Model | CQ3314HTG466(B) | |
| 2 | Cab | New Kingkan flat-roofed cab, Left-Hand drive, with AC | Yellow/Red/White |
| 3 | Drive | 8×4 | |
| 4 | Rated Payload(kg) | 15500 | |
| 5 | Kerb Weight(kg) | 15370 | |
| 6 | Gross Vehicle Weight(kg) | 31000 | |
| 7 | Overall Dimension(mm) | 11435×2500×3510(L×W×H) | |
| 8 | Dump Box Dimension(mm) | 8500×2300×980(L×W×H) | |
| 9 | Dump Box Volume (m 3) | 19 | |
| 10 | Thickness of Dump Box | Bottom 8mm,side 6mm | |
| 11 | Lifting Cylinder | Hyva 150 | Front lift |
| 12 | Max Speed(km/h) | 95 | |
| 13 | Wheelbase(mm) | 4550+1400 | |
| 14 | Engine | C9 380 | Euro III |
| 15 | Engine Output(HP) | 380HP | |
| 16 | Gearbox | 12JSD200T | Fuller technology |
| 17 | Steering gear | Germany Technology ZF steering gear | |
| 18 | frame | Outside width 865mm, longeron cross section 317x(8+8)mm | |
| 19 | Front Axle | Iron Cast I-Shaped Axle, Capacity: 6,500 kg x2 | |
| 20 | Driving axle | Full floating, double reduction with differential Steyr cast steel driving axle, Capacity:18,000 kg | |
| 21 | Tyre | 12.00R20 | |
| 22 | Oil Tank | 350L Aluminum-Magnesium Alloy | |

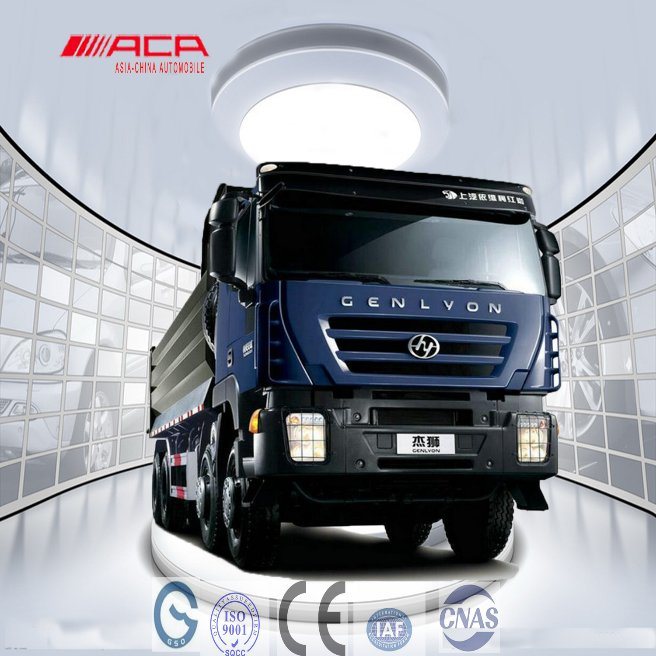

Product Image
