Trailer Axle and Axle Parts Features
OBT Fuwa/Henred type axle Features:
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance pmium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
Trailer Axle Specification:
| Model | Max. Load | Series Width | TR | LM | Beam | GM | Stud | P.C.D | φ H | LP | Suitable Wheel | Weight | Note |
| kg | mm | mm | mm | mm | mm | mm | mm | mm | kg | ||||
| OBT2023 | 10,500 | S 420x180 | 1820 | ≤ 435 | C 127 | 368 | 10xM22x1.5 ISO | 335 | 281 | 2165 | 7.50V-20 | 363 | HM518410/45 |
| OBT2024 | 10,500 | S 420x180 | 1820 | ≤ 435 | C 127 | 368 | 10xM20x1.5 JAP | 286 | 221 | 2165 | 7.50V-20 | 359 | |
| OBT2026 | 10,500 | S 420x180 | 1820 | ≤ 435 | C 127 | 368 | 10xM22x1.5 ISO | 286 | 220 | 2165 | 7.50V-20 | 356 | HM518410/45 |
| OBT2423 | 13,000 | S 420x180 | 1840 | ≤ 455 | S 150 | 390 | 10xM22x1.5 ISO | 335 | 281 | 2185 | 7.50V-20 | 368 | HM518410/45 HM518410/45 |
| OBT2424 | 13,000 | S 420x180 | 1840 | ≤ 455 | S 150 | 390 | 10xM20x1.5 JAP | 286 | 221 | 2185 | 7.50V-20 | 363 | |
| OBT2426 | 13,000 | S 420x180 | 1840 | ≤ 455 | S 150 | 390 | 10xM22x1.5 ISO | 335 | 221 | 2185 | 7.50V-20 | 361 | |
| OBT2023 AD | 16,000 | S 420x180 | 1850 | ≤ 455 | C 127 | 396 | 10xM22x1.5 ISO | 335 | 281 | 2185 | 8.00V-20 | 398 | HM518410/45 |
| OBT2423 AD | 16,000 | S 420x180 | 1850 | ≤ 455 | S 150 | 396 | 10xM22x1.5 ISO | 335 | 281 | 2185 | 8.00V-20 | 383 | |
| OBT2062 B | 16,000 | S 420x220 | 1850 | ≤ 455 | C 127 | 354 | 10xM22x1.5 ISO | 335 | 281 | 2185 | 8.00V-20 | 423 | HM220110/49 |
| OBT2462 B | 16,000 | S 420x220 | 1850 | ≤ 455 | S 150 | 354 | 10xM22x1.5 ISO | 335 | 281 | 2205 | 8.00V-20 | 425 | |
| OBT2482 B | 15,000 | S 420x220 | 1850 | ≤ 455 | S 150 | 354 | 10xM24x1.5 ISO | 335 | 281 | 2270 | 8.50V-20 | 460 | HM518410/45 |
Trailer axle and parts include:
Trailer axle assembly, brake chamber, brake drum, hubs, oil seals, bearings,brake shoe and lining assembly, brake shoe bracket,camshaft, auto and manual slack adjuster,hub caps. etc
Packaging & Shipping

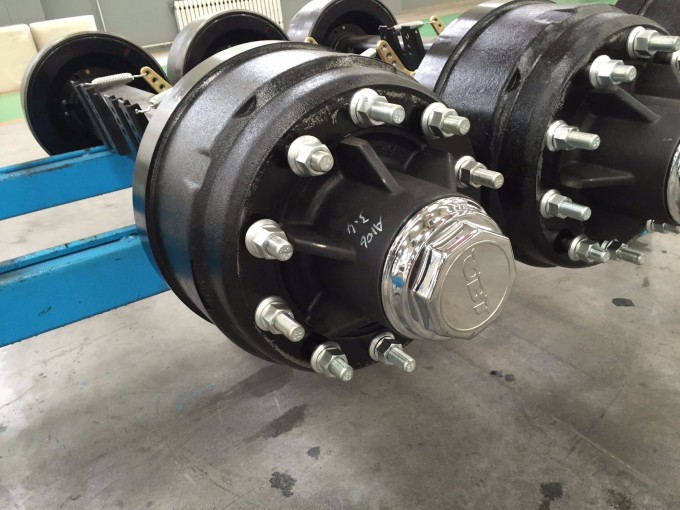

Trailer Axle Photos
HUB cup is our OBT brand,we could make your logo on that.
Trailer Axle Drawings
Can't find your axle,please contact me.
