USA Design 13t American Truck Trailer Axle with Green Test

American axle with 13T capacity

Material of axle
1.Axle beam material:20Mn2
2.Brake drum:QT450
3.Hub:HT250
4.BRAKE CHAMBER:Q235
5.AXLE HEAD:20MN2
6.SELF-LOCKING NUT:40Cr
7.SELF-LOCKING BOLT:35m10x15
8.WASHER:35CrMn
9.AXLE BOLT:35CrMn
10.BEARING LANDINGPLATE:Q235

Technical parameters of axle

Axle Type

Max.Capacity

S-cam Brake

Track

Center Distance of Brake Chamber

Axle Beam

Spring Seat Installation

Wheel Fixing

Tatal Length

Weight KG

Recommended Wheel

SP

GM

F

Stud

P.C.D.

φH

LP

OBT13TB1-00

13,000

S 420×180

1840

384

150

≤455

10-M22×1.5 iso

335

281

≈2196

≈365

7.50V-20

OBT15TB1-00

15,000

S 420×220

1850

386

150

≤455

10-M22×1.5 iso

335

281

≈2184

≈418

8.00V-20

OBT16TB1-00

16,000

S 420×220

1850

352

150

≤455

10-M22×1.5 iso

335

281

≈2210

≈430

8.50V-20

Axle with normal cup and American STEMCO oil cup

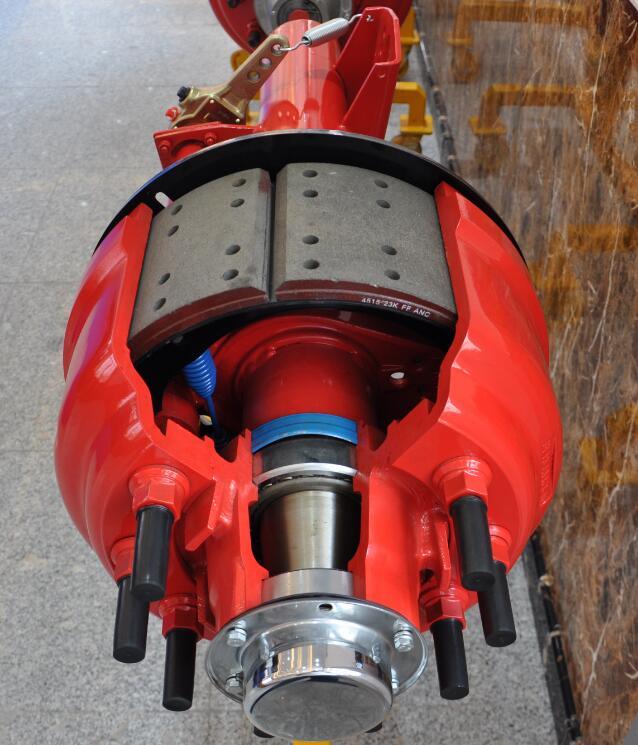

Details of axle
Really strictly welding process,and brake lining passed FMVSS for USA marekt.

Accessories of axle
including raw material,drum,brake lining,cup,and bracket,the parts you saw the one we produce by ourselves.

Our lab


Stock of axle

Our market
We offer axle and suspension to USA and Russia market.
We have confidence in offer really qualified axle for your use.
Please feel free to contact me.
