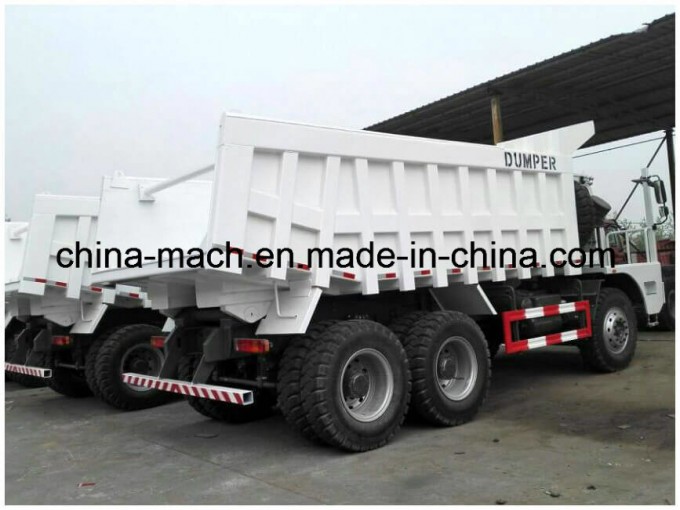

| SINOTRUK HOWO 70T 371HP MINING DUMP TRUCK |
| MAIN SPECIFICATION |
| Description | SINOTRUK HOWO 70T 371HP MINING DUMP TRUCK DUMPER TIPPER |
| Model | ZZ5707S3840AJ |
| Engine Power | 371Hp |
| Dump Body Dimension | 5800*3100*1500(26.97m3) |
| Loading Capacity | 50,000Kgs |
| Place of Origin | China |
| DETAIL SPECIFICATION |
| Weight | Chassis weight(kg) | 17300 |
| Dead weight(kg) | 29300 |
| Max. Theoretical Loading Weight(kg) | 50000 |
| Max. Theoretical G.V.W(kg) | 75000 |
| Performance | Min. Turning Diameter(m) | 22 |
| Max. Speed(km/h) | 50(57) |
| Fuel Tank Capacity(L) | 500 |
| Chassis frame | Type | strenghthened aequilate ladder type frame |
| Main beam cross-section | 380*120*10(mm) |
| Auxiliary beam cross-section | 355*110*10(mm) |
| Transmission | Model | HW19710 |
| Forward Ratio | 14.28, 10.62, 8.87, 5.88, 4.38, 3.27, 1.80, 1.34, 1.00 |
| Reverse Ratio | 13.913.18 |
| Wheel alignment | Front-wheel camber | 1° |
| kingpin inclination(Inward) | 5° |
| kingpin inclination(Rear) | 3°7′ |
| Driving axle | Model | Central reduction with hub reduction |
| Rotio | 10.47Option: 8.51 |
| Differential Locks | Exist between wheels and axles |
| Body(Tilting End) | Dimension(L*W*H mm) | 5800*3100*1500 |
| Thickness(Floor*Side mm) | 16*12 |
| Hoist System | HYVA 196 |
| Dimension | Overall dimension(mm) | 8600*3300*4000 |
| Wheelbase(mm) | 3800+1500 |
| Front/Rear overhang(mm) | 1500/1800 |
| Front/Rear wheeltrack(mm) | 2750/2520 |
| Min. ground clearence(mm) | 340 |
| Approach/Departure angle(°) | 30/40 |
| Engine | Model | WD615.47 |
| Displacement(L) | 9.726 |
| Rated power hp(r/min) | 371/2200 |
| Max. torque Nm(r/min) | 1500/1100~1600 |
| Cabin | Type | HW7D |
| Nos of passengers | 1 person |
| Clutch | Type | Diaphragm spring clutch, hydraulic operating with air assitance |
| Outside diameter of driven plate | Φ430(mm),1900mm |
| Steering | Model | ZF8118 |
| Brake | Service brake | Dual circuit compssed air brake |
| Parking brake (emergency brake) | Spring energy, compssed air operating |
| Auxiliary brake | Engine exhaust brake |
| Others | Brake heat sink |
| Electrics | Operating voltage | 24 V, negative grounded |
| Alternator | 1500w |
| Battery voltage/capacitance(V/Ah) | 12/180 |
| Tyre | Model | 14.00-25(14.00R25 for option) |
| Rim | 10.00-25 |
Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
