Introductio

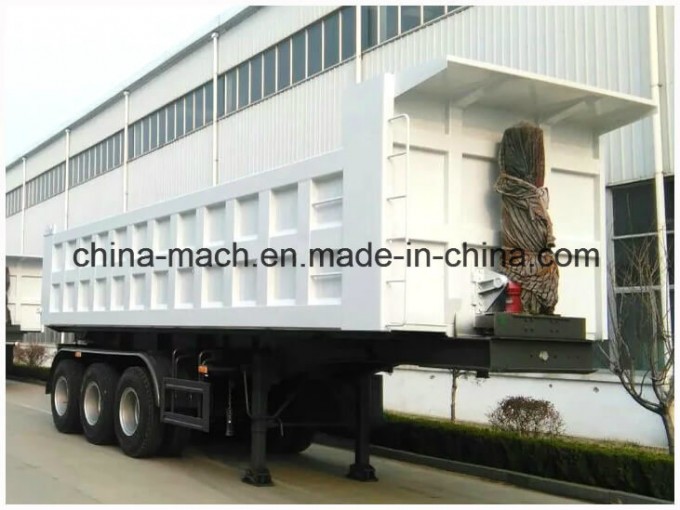

nDump Trailer is built for transport of loose material such as coal, mud, sand, gravel, iron, building materials and other scattering bulk goods. ChinaMach can provide you different tipper designs per your operation needs.
Specification
(below only for refer. other specific requirements will be accepted)| Dimensions | 11000 x2500 x3500 mm |
| Weight | Loadingcapacity | 40-60 tons |
| Tare weight | 7 tons |
| G.V.W.R. | 47-67tons |
| frame &Structure | Main beam | Material Q345B. Fabricated "H"beam height 500mm, Top
flange thickness 12mm, middle flage thickness 8mm,
bottom flange thickness 10mm |
| Cross beam | Q235B |
| Deck thicknesss | 3mm checked plate |
| King pin | 2'' and 3.5 welded or bolted type |
| Side walls | 4mm thickness |
| Painting | Shot blast at Standard SA 2.5 prior to application of primer polyurethane top coat. |
| Running gear | Suspension | Mechanical suspension, leaf spring 13mmx90mm*10pcs |
| Axle | JMCG ,3pcs*13 ton capacity without ABS |
| Brake system | Dual line pneumatic brake, with hose and connector |
| Brake chamber | 2 units T30/30 spring brake chambers, 4units T30 brake |
| Air tank | 50L, 2pcs, China |
| Emergency relay valve | WABCO brand |
| Tire | 12R22.5, 12 pcs |
| Rim | 9.00*22.5 steel disc wheel, 10 holes ISO, 12pcs |
| Landing gear | Single side operation, Static capacity 28ton |
| Electrical System | Voltage | 24 Volt |
| Receptacle | 7 way socket standard |
| Lamps | Front marker lamp, Side marker lamp, Rear lamp,Turn signal lamp Number plate lamp and Fog lamp,according international standard. |
| Reflector | Per customer's requirement |
| Accessories | Steel mud guard and plastic mud flap;2pcs spare wheel carriers and 1piece tool box |
| Color | Customized |
Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
