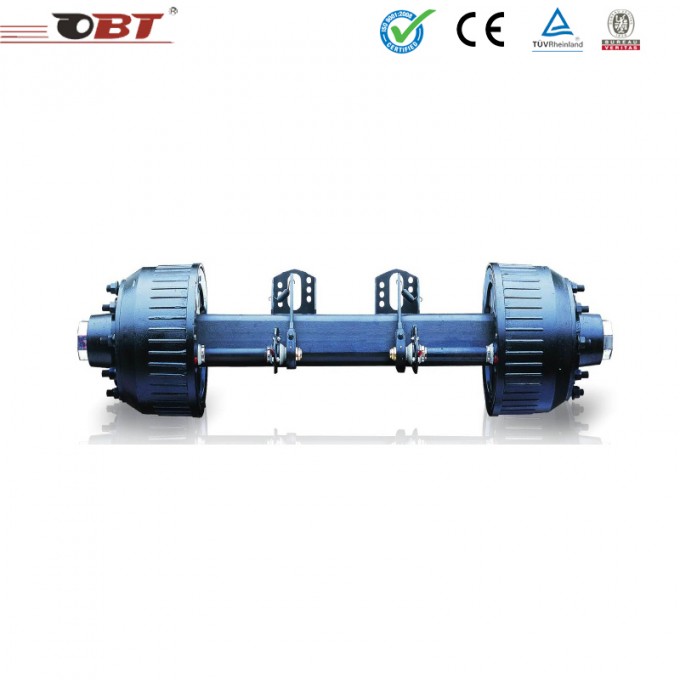

Obt German Heavy Duty Semi Trailer Truck Axle

Obt German Heavy Duty Semi Trailer Truck Axle



OBT axle Features:

1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.

2). Forged camshafts with hardened wear surface for the axle.

3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.

4). High performance pmium non-asbestos brake linings, extend service life.

5). Easy for ABS installation.

Semi Trailer Axle Specification:

GermanAxle
Model	105km /H Max. Load (kg)	"S"cam Brake Series φ× Width mm	Track TR mm	GM mm	Axle Beam mm	Spring Seat LM mm	WheelFixing			Total Length LP mm	Bear ing	Weight (kg)	Recomm ended Wheel
							Stud mm	P.C.D mm	φH mm
OBT 180	9000	S420 ×180	2040	622	Ο127	980	10-M22× 1.5 ISO	335	281	∽2146	33213 33118	∽364	7.50V-20
OBT 181	12000	S420 ×200	2040	622	Ο127	1180	10-M22× 1.5 ISO	335	281	∽2356	33213 3118	∽375	7.50V-20
OBT 182	12000	S420 ×180	1840	420	◊150	980	10-M22× 1.5 ISO	335	281	∽2156	33213 33118	∽372	7.50V-20
OBT 183	12000	S420 ×200	1840	354	◊150	900	10-M22× 1.5 ISO	335	281	∽2156	33213 33118	∽96	7.50V-20
OBT 184	14000	S420 ×180	1840	422	◊150	980	10-M22× 1.5 ISO	335	281	∽2188	33215 32219	∽402	8.0V-20
OBT 185	14000	S420 ×200	1840	354	◊150	980	10-M22× 1.5 ISO	335	281	∽2188	33215 32219	∽416	8.0V-20
OBT 186	14000	S420 ×220	1840	354	◊150	980	10-M22× 1.5 ISO	335	281	∽2188	33215 32219	∽430	8.0V-20
OBT 187	16000	S420 ×200	1850	356	◊150	900	10-M22× 1.5 ISO	335	281	∽2242	32314 32222	∽468	8.0V-20
OBT 188	16000	S420 ×220	1850	376	◊150	980	10-M22× 1.5 ISO	335	281	∽2242	32314 32222	∽474	8.0V-20
OBT 189	18000	S420 ×200	1850	356	◊150	900	10-M22× 1.5 ISO	335	281	∽2242	32314 32222	∽478	8.0V-20
OBT 190	18000	S420 ×220	1850	376	◊150	980	10-M22× 1.5 ISO	335	281	∽2242	32314 32222	∽484	8.0V-20

Semi Trailer Axle Photos:










Packaging & Delivery:

1. Standard package for shipping in containers.

2. Naked or pallet.

3. Offer the best packaging solution to decrease transportation cost and give you the very competitive price.

4. Support transit report with pictures.




One-stop Service:

1. Professional Production Team:
More than 300 Experinced workers, provide clients high assembling for fast quality delivery.

2.Customize:
Professional design team provide suitable programs and customized, support local adaptive trailer.

3. 7*24h Service
7*24h service provide professional fast response.

4. Parts Support:
Abundant parts supply provide lasting support for worldwide clients.

5. DDP Logistic Transport:
Deliver to client anywhere in the worldby best logistic supplier.

Company information:

OBT, founded in 1997 located in Qingdao, China, is an international, cross-industry, diversified group company. In

2007,we merged the company CSRS for air springs ,also in 2007,built our trailer company B&C in Australia in 2010,we

built our branch company SCG in Singapore in 2012, in order to expand our business areas ,we build our tyre branch

ZERMATT in 2013,special for tires. After 18 years of pioneering spirit, it has developed into an important vehicle and

auto parts production base and export base.
