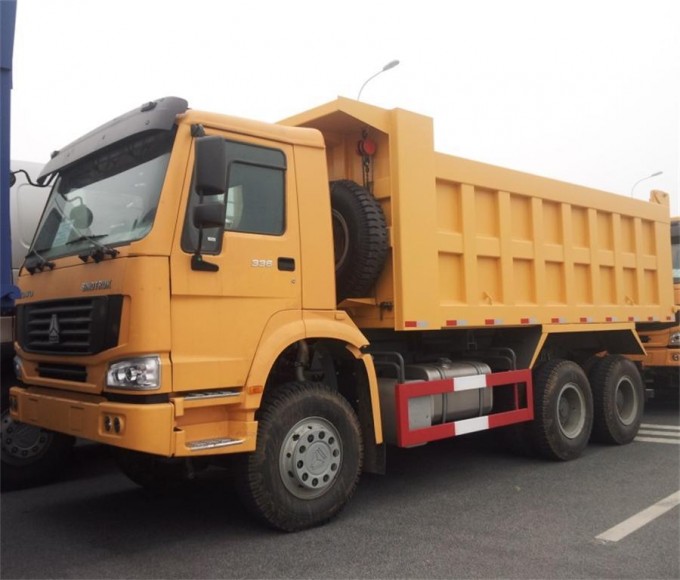

HOWO 6X4 Tipper 25 Ton Dump Truck (ZZ3257N3847A)

1--336HP, Load 30 ton, HOWO 6X4 Tipper ZZ3257N3847A

1. Engine: CNHTC brand WD615.69, 336HP, Euro II emission;
2. Fuel type: Diesel
3. Cab: HW76 length cab, with air conditioner, with 1 sleeper;
4. Carriage Internal Dimensions(mm): 5600x2300X1500;
5. Steel thickness of Carriage: Floor: 8mm, Side: 6mm
6. Hydraulic Lift of Carriage: Chinese Hydraulic System (front lift)
7. Whole truck dimensions: 8545X2496X3170 mm;
8. Dead weight: 12270kgs, Gross vehicle weight: 25000kgs;
9. Transmission: 10 speeds (HW15710)
10. Rim/Tyres: 12.00-20 bias tire
11. Brake: Without ABS system
12. Max speed: 75 km/h

2--336HP, Load 25 ton, HOWO 6X4 Tipper ZZ3257N3647A

1. Engine: WD615.69, 336HP, Euro II emission;
2. Fuel type: Diesel
3. Cab: HW76 length cab, with air conditioner, with 1 sleeper;
4. Carriage Internal Dimensions(mm): 5400x2300X1200;
5. Steel thickness of Carriage: Floor: 8mm, Side: 6mm
6. Hydraulic Lift of Carriage: F model (middle lifting);
7. Whole truck dimensions: 8145X2496X3170 mm;
8. Dead weight: 12200kgs, Gross vehicle weight: 25000kgs;
9. Transmission: 10 speeds (HW15710)
10. Rim/Tyres: 12.00-20 bias tire
11. Brake: Without ABS system
12. Max speed: 75 km/h

3--290HP, Load 30 ton, HOWO 6X4 Tipper ZZ3257M3847W

1. Engine: WD615.87, 290HP, Euro II emission;
2. Fuel type: Diesel
3. Cab: HW76 length cab, with air conditioner, with 1 sleeper;
4. Carriage Internal Dimensions(mm): 5600x2300X1200;
5. Steel thickness of Carriage: Floor: 8mm, Side: 6mm
6. Hydraulic Lift of Carriage: Chinese Hydraulic System (front lift).
7. Whole truck dimensions: 8545X2496X3170 mm;
8. Dead weight: 12200kgs, Gross vehicle weight: 25000kgs;
9. Transmission: 10 speeds (HW15710)
10. Rim/Tyres: 12.00-20 bias tire
11. Brake: Without ABS system
12. Max speed: 75 km/h


4--290HP, Load 25 ton, HOWO 6X4 Tipper ZZ3257M3647W

1. Engine: WD615.87, 290HP, Euro II emission;
2. Fuel type: Diesel
3. Cab: HW76 length cab, with air conditioner, with 1 sleeper;
4. Carriage Internal Dimensions(mm): 5400x2300X1200;
5. Steel thickness of Carriage: Floor: 8mm, Side: 6mm
6. Hydraulic Lift of Carriage: F model (middle lifting);
7. Whole truck dimensions: 8145X2496X3170 mm;
8. Dead weight: 12080kgs, Gross vehicle weight: 25000kgs;
9. Transmission: 10 speeds (HW15710)
10. Rim/Tyres: 12.00-20 bias tire
11. Brake: Without ABS system
12. Max speed: 75 km/h

Descriptions & Specifications

HOWO 8x4 Tipper ZZ3257N3847A , L HD .

Engine: CNHTC brand WD615.69, 336hp , Euro II emission;

Transmission: HW15710 (10 speeds);

Steering: ZF8098 hydraulic steering with power assistance

Front axle: HF9 drum, rated loading 9T

Rear axle:HC16 double reduction driving axle

Cab: HW76 length cab, with air conditioner, with 1 sleeper;

Rim/Tyres: 12.00-20 bias tyre

Brake: without ABS system

Carriage Internal Dimensions: 5600x2300x1500 mm;

Wheelbase(front/rear):2022/1850mm

Steel thickness of Carriage: Floor: 8mm, Side: 6mm

Max speed: 75 km/h

Hydraulic Lift of Carriage: Chinese Hydraulic System (front lift)

English panel; Color: red;

Whole truck dimensions: 8545x2496x3406mm;

Gross vehicle weight:25000kgs;

Dead weight:122700kgs;

Fuel type: diesel

Fuel Tank: 400L;
