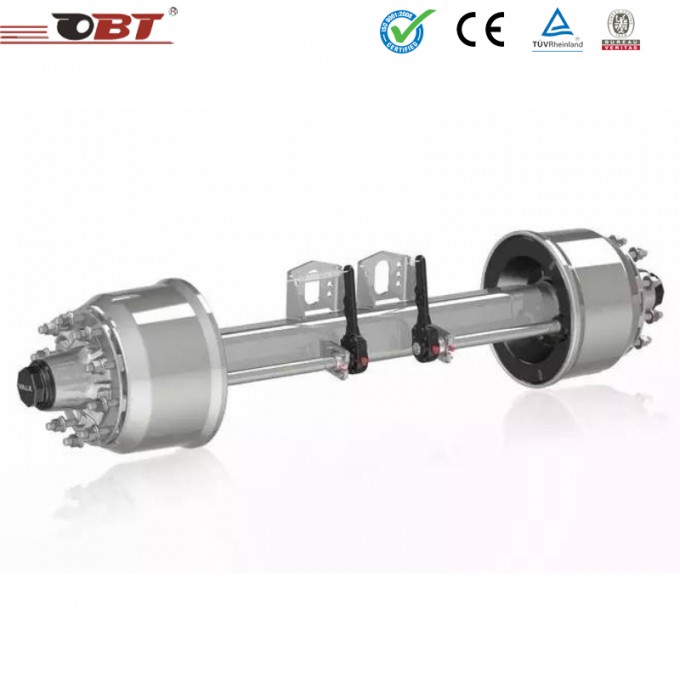

Heavy Duty Obt Semi Trailer Truck Axles for Sale

Obt Semi Trailer Truck Axles for Sale

OBT Axles Features:

1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.

2). Forged camshafts with hardened wear surface for the axle.

3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.

4). High performance pmium non-asbestos brake linings, extend service life.

5). Easy for ABS installation.


Semi Trailer Axle Specification:

German type Axle
Model	105km /H Max. Load (kg)	"S"cam Brake Series φ× Width mm	Track TR mm	GM mm	Axle Beam mm	Spring Seat LM mm	WheelFixing			Total Length LP mm	Bear ing	Weight (kg)	Recomm ended Wheel
							Stud mm	P.C.D mm	φH mm
OBT 180	9000	S420 ×180	2040	622	Ο127	980	10-M22× 1.5 ISO	335	281	∽2146	33213 33118	∽364	7.50V-20
OBT 181	12000	S420 ×200	2040	622	Ο127	1180	10-M22× 1.5 ISO	335	281	∽2356	33213 3118	∽375	7.50V-20
OBT 182	12000	S420 ×180	1840	420	◊150	980	10-M22× 1.5 ISO	335	281	∽2156	33213 33118	∽372	7.50V-20
OBT 183	12000	S420 ×200	1840	354	◊150	900	10-M22× 1.5 ISO	335	281	∽2156	33213 33118	∽96	7.50V-20
OBT 184	14000	S420 ×180	1840	422	◊150	980	10-M22× 1.5 ISO	335	281	∽2188	33215 32219	∽402	8.0V-20
OBT 185	14000	S420 ×200	1840	354	◊150	980	10-M22× 1.5 ISO	335	281	∽2188	33215 32219	∽416	8.0V-20
OBT 186	14000	S420 ×220	1840	354	◊150	980	10-M22× 1.5 ISO	335	281	∽2188	33215 32219	∽430	8.0V-20
OBT 187	16000	S420 ×200	1850	356	◊150	900	10-M22× 1.5 ISO	335	281	∽2242	32314 32222	∽468	8.0V-20
OBT 188	16000	S420 ×220	1850	376	◊150	980	10-M22× 1.5 ISO	335	281	∽2242	32314 32222	∽474	8.0V-20
OBT 189	18000	S420 ×200	1850	356	◊150	900	10-M22× 1.5 ISO	335	281	∽2242	32314 32222	∽478	8.0V-20
OBT 190	18000	S420 ×220	1850	376	◊150	980	10-M22× 1.5 ISO	335	281	∽2242	32314 32222	∽484	8.0V-20

American type Semi Trailer Axles Specification:

Model

Max. Load

"S"cam Brake Seriesφ ×Width

TR

LM

Axle beam

GM

Stud

P.C.D

φH

LP

Recomme nded Wheel

Weight

Note

kg

mm

mm

mm

mm

mm

mm

mm

mm

kg

OBTO2001

8000

S420×150

1850

≤435

Ο127

428

10×M22× 1.5ISO

335

281

~2145

7.50V-20

~323

33215/ 33213

OBTO2023

10500

S420×180

1820

≤435

Ο127

368

10×M22× 1.5ISO

335

281

~2165

7.50V-20

~363

(Outer) HM518445 /10(Inner) HM518445 /10

OBTO2024

10500

S420×180

1820

≤435

Ο127

368

10×M20× 1.5JAP

285.75

221

~2165

7.50V-20

~359

OBTO2026

10500

S420×180

1820

≤435

Ο127

368

10×M22× 1.5ISO

285.75

220.1

~2165

7.50V-20

~356

OBTO2023 B11

10500

S420×220

1840

≤435

Ο127

325

10×M22× 1.5ISO

335

281

~2165

7.50V-20

~365

OBTO2423

13000

S420×180

1840

≤455

◊150

390

10×M22× 1.5ISO

335

281

~2185

7.50V-20

~350

(Outer) HM518445 /10(Inner) HM518445 /10

OBTO2424

13000

S420×180

1840

≤455

◊150

390

10×M20× 1.5JAP

285.75

221

~2185

7.50V-20

~363

OBTO2426

13000

S420×180

1840

≤455

◊150

390

10×M22× 1.5ISO

285.75

221

~2185

7.50V-20

~361

OBTO2423 B11

13000

S420×220

1840

≤455

◊150

354

10×M22× 1.5ISO

335

281

~2185

8.00V-20

~365

OBTO2023 AD

15000

S420×180

1850

≤455

Ο127

396

10×M22× 1.5ISO

335

281

~2185

8.00V-20

~385

(Outer) HM518445 /10(Inner) HM220110 /49

OBTO2423 AD

15000

S420×180

1850

≤455

◊150

396

10×M22× 1.5ISO

335

281

~2185

8.00V-20

~365

OBTO2062 B11

16000

S420×220

1850

≤455

Ο127

354

10×M22× 1.5ISO

335

281

~2185

8.00V-20

~410

OBTO2462 B11

16000

S420×220

1850

≤455

◊150

354

10×M22× 1.5ISO

335

281

~2205

8.00V-20

~410

OBTO2482 B11

20000

S420×220

1850

≤455

◊150

354

10×M24× 1.5ISO

335

281

~2270

8.50V-20

~455

(Outer) HM518445 /10(Inner) HM32222

Semi Trailer Axle Photos:

Packaging & Delivery:

1. Standard package for shipping in containers.

2. Naked or pallet.

3. Offer the best packaging solution to decrease transportation cost and give you the very competitive price.

4. Support transit report with pictures.

One-stop Service:

1. Professional Production Team:

More than 300 Experinced workers, provide clients high assembling for fast quality delivery.

2.Customize:

Professional design team provide suitable programs and customized, support local adaptive trailer.

3. 7*24h Service

7*24h service provide professional fast response.

4. Parts Support:

Abundant parts supply provide lasting support for worldwide clients.

5. DDP Logistic Transport:

Deliver to client anywhere in the worldby best logistic supplier.
