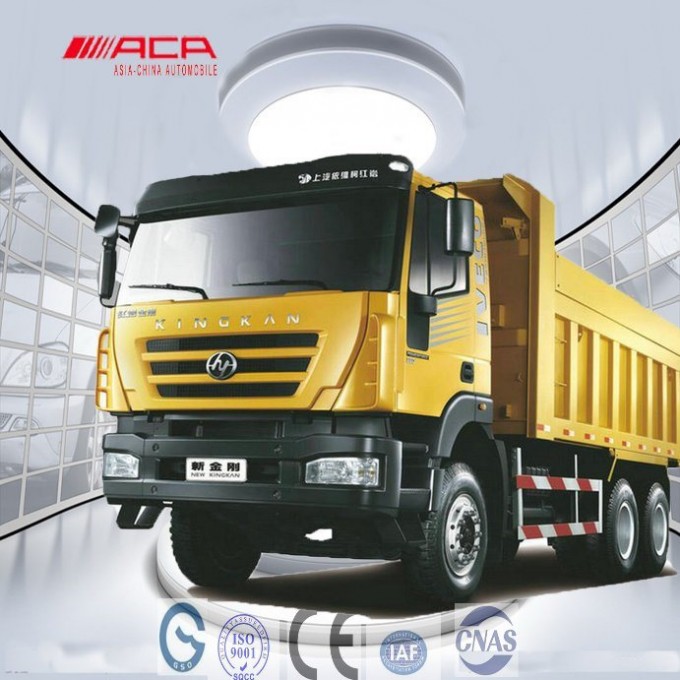

New Iveco Kingkan 6X4 Dump Truck

SAIC-IVECO HonGYAN Company is an experienced heavy duty truck manufacturer. based in Chongqing city, China, we design, manufacture a wide range of heavy duty trucks and special trucks based on heavy duty trucks such as tractor unit, dump truck, cargo truck, tanker truck, and some construction engineering vehicles like concrete mixer truck. SIH is based on China state owned enterprise.
SIH implemented a series of effective quality control measures , introduced advanced IVECO prototype vehicle technology, acquired state-of-the-art production and inspection equipment, employed experienced staff, and strictly implemented the ISO9001:2000 quality management system to monitor every production process. In addition, we provide continuous training to improve employee efficiency, which greatly reduces our production costs, thus enabling us to provide our heavy trucks at lower price.


Chongqing Asia-China Automobile Sales Co., Ltd is a leading sales company of heavy trucks and xcmg equipment products , related accessories,founded in 2002 China, which is one of the biggest authorized agents of Chongqing Hong Yan Automobiles.

We have twelve subsidiary company and offices in China and overseas. The average sales has reached to 2500 units per year in china while the export amount is more than thousands units. And the annual income has surpassed 80 million dollars.Because of excellent quality, flexible sales model, complete unit of accessories, our company set up impssive image in China automobiles field. Recent years, our company is dedicating in extending overseas market. Our products have exported to more than 20 countries, primarily to markets in Vietnam, Tadzhikistan, Saudia Arabia, Algeria, Congo, Nigeria and etc. At the same time, our sales and service team accumulated a lot of experience in international trade and established complete sales and service network in Africa and Central Asia. What's more, we enjoyed excellent reputation among our customers.TECHNICAL SPECIFICATION1 Model: CQ3254HMG384 6X4 Dump Truck
2 Cab: New Kingkan flat-roof cab, Air conditioner, Left-Hand drive
3 Drive: 6× 4
4 Total mass(kg): 25000
5 Curb weight(kg): 12090
6 Rated Payload(kg): 12780
7 Max Speed(km/h): 80
8 Max gradeability(%): 32
9 Overall Dimension(mm): 8275X 2500x3510
10 Skip Dimension(mm): 5400x2300X1200 (15CBM)
11 Wheelbase(mm): 3825+1350
12 Engine: Wp10.310E32 Euro III Emission Standard
13 Engine Output: 228KW (310HP)
14 Transmission: 10JSD140
15 Number of steel plate spring (front/rear): 9/12
16 frame: Outside width 865mm, longeron cross section 317x(8+8)mm
17 Tyre: 12.00R20
18 Oil Tank(L): 340L Aluminum-Magnesium Alloy.

KINGKAN is a whole new truck series developed by cooperation between Saic-Iveco Hongyan and IVECO's global research center. KINGKAN is not only durable and good-looking, but also excels in safety, comfort, power, carrying capacity & optimization with the implementation of the Powerforce platform.

Equipped with powerful Iveco Cursor engine or Weichai engine, FAST 12-gear gearbox, and Hongyan double-reduction cast axle. KINGKAN boasts of styling appearance, human-oriented interior, European technology & great carrying capability.

SPARE PARTS SYSTEM
