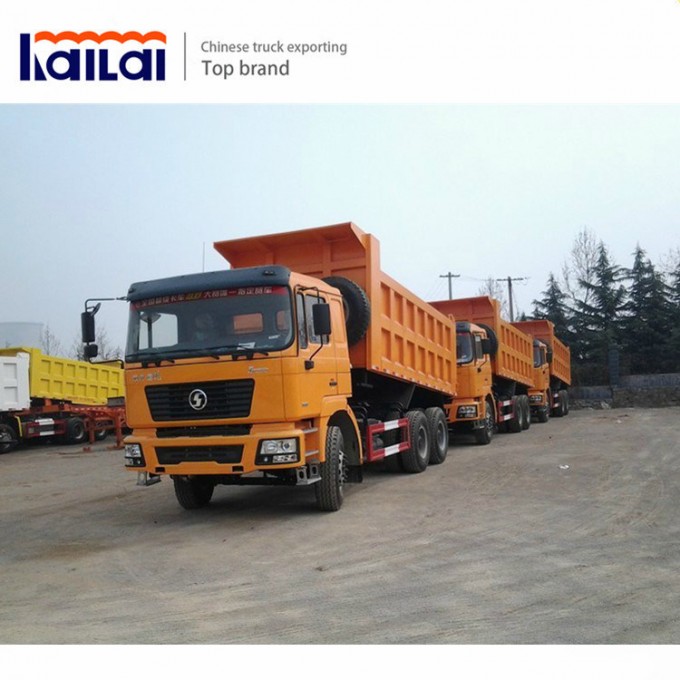

Shacman Tipper Truck F2000 6X4 25 Ton Dump Truck

Cabin

Air suspension MAN F2000 cab sleeper, hydraulic shock absorb adjustable seat,

safety belt, adjustable steering, warm air system, sunroof, sun cap, bumper

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WD615.44

European technology WEICHAI with MAN EVB technology

MAX Horse power:

320HP/235KW

Displacement(L):

9.726liter

Max torque:

1350Nm/1300-1600rpm

Bore/stoke:

126mm/155mm

Gear box

Applied American technology

Max torque:1600NM

Model:

FAST9JS135

Speed:

9speed, 1reverse

Axle(front/rear)

Front axle

7.5tonMANtechnology non-driving steering axle

Tandem

13tonSTRtechnology double reduction, hub redactor driving axle,

Clutch

D430 diaphragm type, single dry frictional disc, hydraulic boosting.

Brake

Service brake: Double circuit pneumatic brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)

Steering

ZF technology, driver sit at the left hand side(RHD is optional)

Electric Equipment

Operating voltage:

24Vnegative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah,cigar lighter

frame

strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim

12.00-20 tyre(can be changed to radial tyre)

Suspension system: strongthen heavy duty Leaf spring type

Front/Rear

10/12

Dump body: type of body :

Inside size of Body(mm): 5600x2300x1500 ,8x6mm, made of high intensity steel

Lifting type: Front lifter type hydraulic system. Refer to picture

Overall dimension(mm):8329x2490x3450 (Length x width x height)

Wheelbase

3800+1350mm

Track:

Front/Rear

2036/1850

Approach/Departure angle

28/30

Front /Rear overhang

1525/1654

Max speed

77km/h

Kerb weight:

12500kg

Oil tank capacity

300L fuel tank
