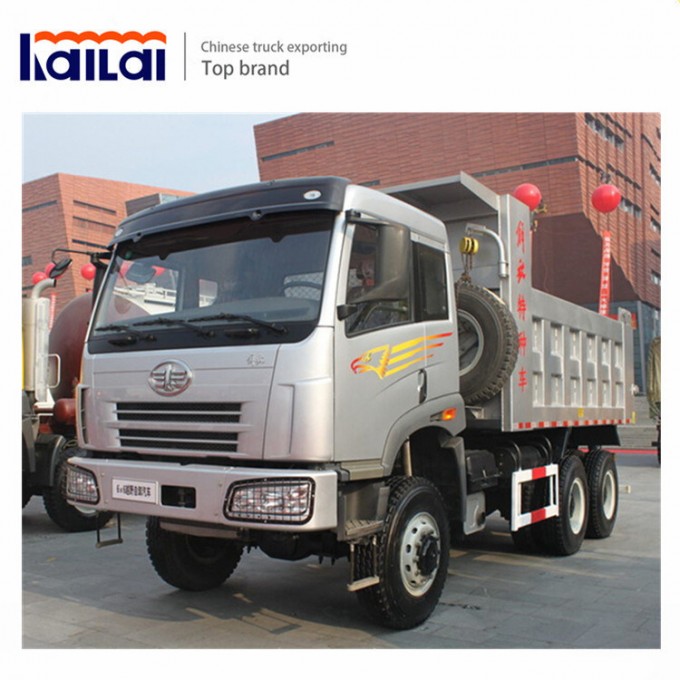

2018 6X4 FAW Dump Truck Tipper Truck for Africa Market

2018 6X4 FAW Dump Truck Tipper Truck for Africa Market

Engine brand: WEICHAI
Engine model: WD615.44 320HP Euro II
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 9.726 liters
Max. Output: 320HP@2200rpm
Max torque: 1250NM@1400-1600rpm
Bore/Stroke(mm): 126/130
Specific fuel consumption: 198g/Kwh
Gear box
Gear box: 9JS135
Steering: ZF8098 integral type power-steering
Tyre
Tyre: 12.00R20
No. Of tyre: 10+1spare
Front axle: A1H
Rear axle: 35013000kg (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock
Spring: 9/12, 10/12
Fuel tank capacity (L): 300 Aluminium Alloy Tank
Max. Speed (km/h): 75
Kerb. Mass: 12420kg
Total mass: 25000kg
Wheel base (mm): 3625+1350
Front overhang (mm): 1500
Rear overhang (mm): 1670
Front track (mm): 1939
Rear track (mm): 1830/1830
Approach angle: 19 degree
Departure angle: 26 degree
Dimension (mm): 8145x2496x3170
Body:
Inner size(mm): 5400x2300x1400
Capacity: 17.388CBM
Thickness of body steel(mm): Floor 8 mm side & back 4 mm
Tipping type: Middle F type (underbody)
Other details:

Delivery time	35days after received the deposit
Packing	Nude packing with wax ro anti sea water
After sale service	spare parts offer
Transportation way	Ro-ro ship or bulk ship

Pictures:
