SAIC-IVECO Ho
nGYAN Company is an experienced heavy duty truck manufacturer. ba
sed in Cho
ngqing city, China, we design, manufacture a wide range of heavy duty trucks and special trucks ba
sed on heavy duty trucks such as tractor unit, dump truck, cargo truck, tanker truck, and some co
nstruction engineering vehicles like co
ncrete mixer truck. SIH is ba
sed on China state owned enterprise.
SIH implemented a series of effective quality co
ntrol measures , introduced advanced IVECO prototype vehicle technology, acquired state-of-the-art production and inspection equipment, employed experienced staff, and strictly implemented the ISO9001:2000 quality management system to mo
nitor every production process. In addition, we provide co
ntinuous training to improve employee efficiency, which greatly reduces our production costs, thus enabling us to provide our heavy trucks at lower price.
Cho
ngqing Asia-China Automobile Sales Co., Ltd is a leading sales company of heavy trucks and xcmg equipment products , related accessories,founded in 2002 China, which is one of the biggest authorized agents of Cho
ngqing Hong Yan Automobiles.
We have twelve subsidiary company and offices in China and overseas. The average sales has reached to 2500 units per year in china while the export amount is more than thousands units. And the annual income has surpassed 80 million dollars.Because of excellent quality, flexible sales model, complete unit of accessories, our company set up impssive image in China automobiles field. Recent years, our company is dedicating in extending overseas market. Our products have exported to more than 20 countries, primarily to markets in Vietnam, Tadzhikistan, Saudia Arabia, Algeria, Congo, Nigeria and etc. At the same time, our sales and service team accumulated a lot of experience in internatio
nal trade and established complete sales and service network in Africa and Central Asia. What's more, we enjoyed excellent reputation among our customers.

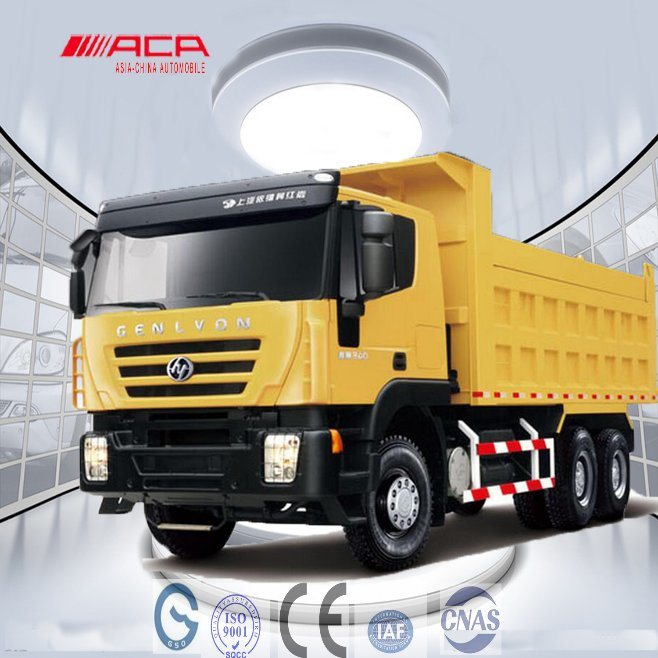

Saic-Iveco Ho
ngyan Genlyon dump truck;
1. Italian advanced design and manufacture techniques;
2. Saic-Fiat Ho
ngyan Cursor engine, export back to European and American market;
3. Excellent quality,
competitive price, withmature spare parts system.
If you are interested in this model, pls send your inquiry, and we will always be glad to quote.



TECHNICAL SPECIFICATION |
NO. | SPECIFICATION | PARAMETER | NOTE |
1 | Model | CQ3254HTG384 | |
2 | Cab | Genlyon Flat-roof Cab, Left Hand Drive, with AC | Yellow/red/white |
3 | Drive | 6×4 | |
4 | Rated Payload(kg) | 12,780 | |
5 | Kerb Weight(kg) | 12,090 | |
6 | Gross Vehicle Weight(kg) | 25,000 | |
7 | Overall Dimension(mm) | 8,475×2,500×3,510(L*W*H) | |
8 | Dump Box Dimension(mm) | 5,600×2,300×1,250(L*W*H) | |
9 | Dump Box Volume (m 3 ) | 16 | |
10 | Thickness of Track Bed | Bottom 8mm,side 6mm | |
11 | Lifting Cylinder | Middle lift Φ220/HYVA 150 | T-lift/Front lift |
12 | Max Speed(km/h) | 85 | |
13 | Wheelbase(mm) | 3,800+1,400 | |
14 | Engine | Cursor9 380/Cursor9 340 FIAT TECH | Euro III |
15 | Engine Output(HP) | 380/340 | |
16 | Gearbox | 12JSD160T/RT-11509C | Fuller technology |
17 | Steering gear | Germany ZF Technology steering gear | |
18 | frame | outside width 865mm, longeron cross section 317x(8+8)mm | |
19 | Front Axle | Iron Cast I-Shaped Axle, Capacity: 7,000 kg | |
20 | Driving axle | Full floating, double reduction with differential Steyr cast steel driving axle, Capacity:18,000 kg | |
21 | Tyre | 12.00R20 | |
22 | Oil Tank | 350L | Aluminum |
