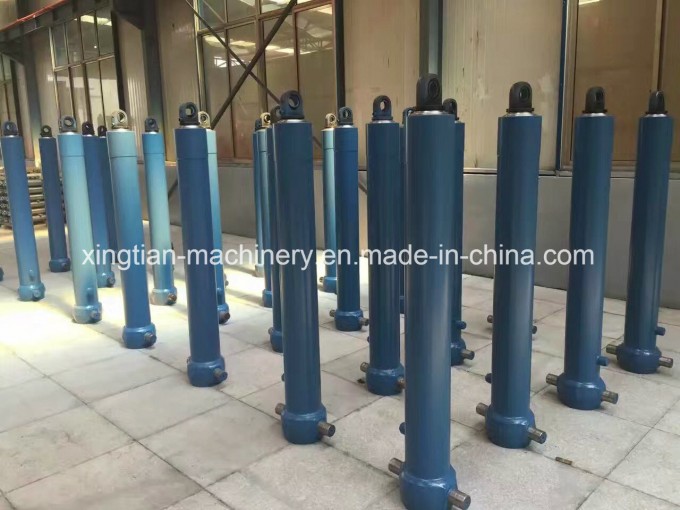

Hydraulic Telescopic Cylinder Used for Lifting Dump Truck Body

.Company Information
Our company was established in 2000, It is situated in Yishui economic
development zone, Shandong Province,and arrived area 42000 square meter.There are three branches;Shandong xingtian machinery co.,ltd(heardquarter),Sichuan xingtian factory,Chrome planting workshop.We are aprofessional manufacturer of Hydraulic Cylinders (with ISO9001&TS16949) for more than 20years.
They are usedfor dump truck,trailer,agriculture machine,construction,
mining, forestry, loader, waste management,Now we supply the goods to FOTON,HOWO,FAW, Shanxi AUTO, Sichuan Hyndai, Dayun, JAC Etc,The annual production capacity of cold drawn pipe is more than 2000 tons.

.Product Descripition and supply

STYLE	MODEL NO.	STAGES	STROKE	1STSTAGE DIA	VEHICLE BODY LENGTH(m)
FRONT END HYDRAULIC CYLINDER	3-150-3872	3	3872	150	4.6~5.2
	3-150-4270	3	4270	150	5.5~5.6
	4-160-4280	4	4280	160	5.5~5.6
	4-180-4280	4	4280	180	5.5~5.6
	4-180-4650	4	4650	180	5.8~6.1
	4-180-5000	4	5000	180	6.5~7.3
	4-180-5390	4	5390	180	6.6~7.8
	4-180-5780	4	5780	180	6.8~8.0
	4-196-5460	4	5460	196	6.6~7.8
	5-196-5780	5	5780	196	6.8~8.0
	5-196-6180	5	6180	196	7.5~8.2
	5-221-9030	5	9030	221	11.0~12.0
	5-214-7800	5	7800	214	9.0~10.0

HS Code	8412210000
Application	Dump truck, Tipper, Trailer
Material of cylinder tube	alloy steel
Seal	Hallite, SKF, NOK, Guarnitec, Parker
Coating	all tubes are chrome plated
Temperature	-30oC ~80oC
Working pssure	16mpa-23mpa
Stroke	3000mm-11000mm
Color	red black blue gray
Mounting Type	Earring-trunnion, double trunnion, double earring (eye end)
Plunger	20#, 45# steel with high frequency quenching
Certification	ISO9001-2009 and TS16949
Package	shrink film, pallet, plywood case and carton
Warranty	One year after shipping arrival
Main export market	US, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore
Payment terms	T/T, L/C, West Union
Delivery time	15- 25 days after down payment

.Quality Control.
1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
4. Type Inspection
Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.

FAQ

Q1. What are the same aspects of your cylinder with Hyva cylinder?
1. Same inside structure.
2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's
Q2. Compared with Hyva cylinder, what are your cylinder advantages?
1.Tubes are chrome plated.
2.Tubes are quenched and tempered.
3.Tube inner hole goes through deep-hole boring machine processing. Surface roughness is 0.4Ra
and circular degree is 0.025.
4.Good quality yet lower price.

.Welcome to visit our company.
With more than 15 years experiences, we can produce any hydraulic cylinders according to customers' requests. Provide you with best technical design of drawing service.

.Contact information:
Contact name:Amy
Phone:86-17854943444
