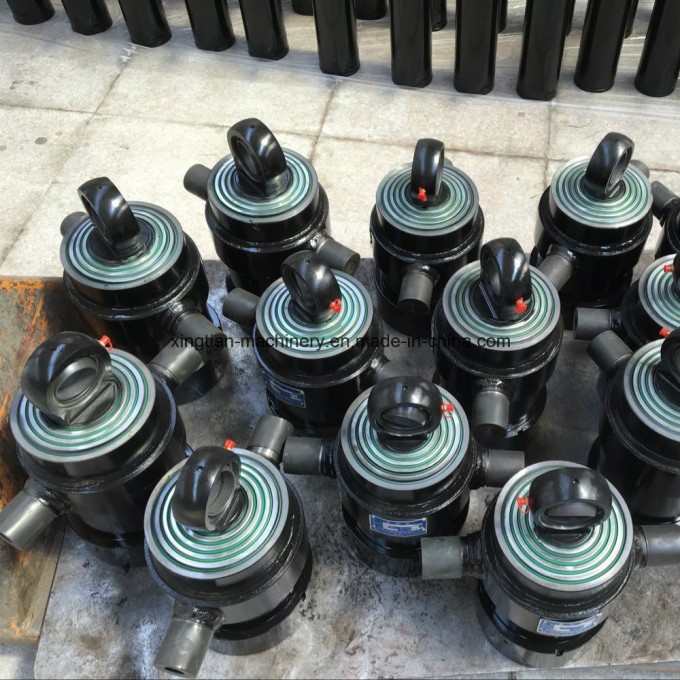

Under Body Telescopic Hydraulic Cylinder for Dump Truck

1.Product Description:

We are supplier of FOTON,HYNDAI, SINOTRUCK and Shanxi Automobile Group Co., Ltd,the most famous truck manufacturing and refitting company in China.It is aproof of our quality.

HS Code	8412210000
Application	Dump truck, Tipper, Trailer
Material of cylinder tube	alloy steel
Seal	Hallite, SKF, NOK, Guarnitec, Parker
Coating	all tubes are chrome plated
Temperature	-30ºC~80ºC
Working pssure	16mpa-23mpa
Stroke	3000mm-11000mm
Color	red black blue gray
Mounting Type	Earring-trunnion, double trunnion, double earring (eye end)
Plunger	20#, 45# steel with high frequency quenching
Certification	ISO9001-2008 and TS16949
Package	shrink film, pallet, plywood case and carton
Warranty	One year after shipping arrival
Main export market	US, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore
Payment terms	T/T, L/C, West Union
Delivery time	15- 25 days after down

2.Hydraulic Cylinders :
Our factory can make the Hydraulic Cylinders (HYVA,PARKER,MEILLER etc) as per your requirements.




3.Our Common Front End Hyva Type Hydraulic Cylinder List:

STYLE	Model NO.	Stages	Stroke	1st stage diameter
FC/FECYLINDER	110-3-3880	3	3880	110
	110-4-3800	4	3800	110
	110-4-4300	4	4300	110
	129-3-2970	3	2970	129
	129-3-3600	3	3600	129
	129-3-3985	3	3985	129
	150-3-2670	3	2670	150
	150-3-2970	3	2970	150
	150-3-3550	3	3550	150
	150-4-4280	4	4280	150
	172-4-4280	4	4280	172
	172-4-4620	4	4620	172
	172-4-5460	4	5460	172
	196-5-6000	5	6000	196
	196-5-6180	5	6180	196
	196-5-6500	5	6500	196
	221-5-9030	5	9030	221

4.Packing&Shipping:

5.Quality Control:

1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection
2. Process Inspection: First Inspection, Random Inspection, Handover Inspection
3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test
4. Type Inspection

Every piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.

6.Guarantee&After-sale Service:
1. 24 hours technical support through email
2. Goods will be delivered safely on time
3. One year guarantee after destination port arrival
4. Life long time follow up service


7.If you are interested in our products,please kindly provide us the following information or design drawing with your inquiry for our teams' reference:

1)Product data
a. Bore size:
b. Stroke length:
c. Rod Diameter:
d. Mounting Type:
e. Mounting length:
f. Paint color requirement.

2)Application data:
a. Type of machine (loader, steer loader, excavator, etc):
b. Type of function (hoist, swing. steering, etc)
c. Type of structure (piston, telescopic)
d. Single acting or double acting
e. Operating Pressure

FAQ:

Q1. What are the same aspects of your cylinder with Hyva cylinder?

1. Same inside structure.
2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva's

Q2. Compared with Hyva cylinder, what are your cylinder advantages?

1.Tubes are chrome plated.
2.Tubes are quenched and tempered.
3.Tube inner hole goes through deep-hole boring machine processing. Surface roughness is 0.4Ra
and circular degree is 0.025.
4.Good quality yet lower price.
