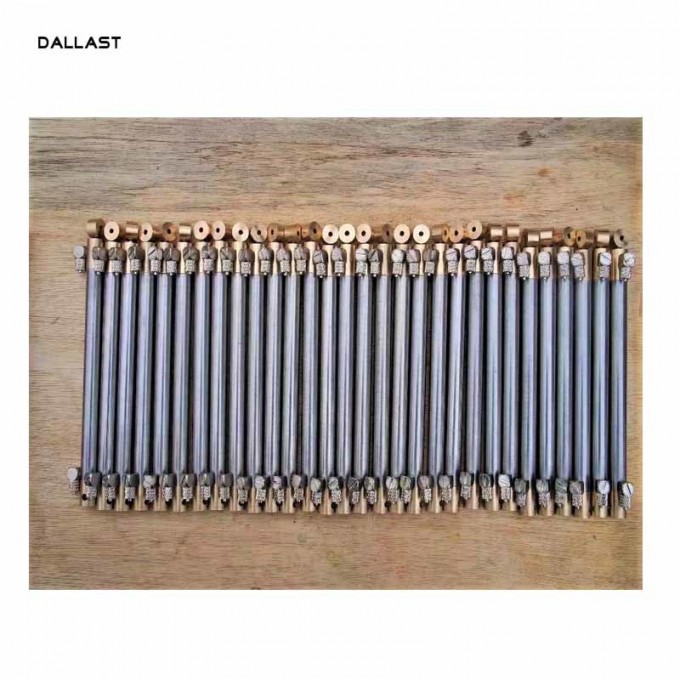

Mini hydraulic cylinder iscustomized hydraulic cylinder,can be customized to any size
We can customize the Min.bore diameter:5MM
| Bore Diameter 20-60 | |||
| Inner diameter(mm0 | Outer diameter(mm) | thickness(mm) | Weight(kg/m) |
| 32 | 40 | 4 | 3.55 |
| 40 | 48 | 4 | 4.34 |
| 40 | 50 | 5 | 5.55 |
| 40 | 60 | 10 | 12.33 |
| 45 | 53 | 4 | 4.83 |
| 45 | 55 | 5 | 6.17 |
| 45 | 57 | 6 | 7.55 |
| 45 | 60 | 7.5 | 9.71 |
| 50 | 56 | 3 | 3.92 |
| 50 | 60 | 5 | 6.78 |
| 50 | 63 | 6.5 | 9.06 |
| 50 | 65 | 7.5 | 10.63 |
| 50 | 70 | 10 | 14.8 |
| 55 | 65 | 5 | 7.4 |
| 55 | 70 | 7.5 | 11.56 |
| 55 | 75 | 10 | 16.03 |
| 55 | 80 | 12.5 | 20.81 |
| 56 | 66 | 5 | 7.52 |
| 60 | 70 | 5 | 8.01 |
| 60 | 73 | 6.5 | 10.66 |
| 60 | 75 | 7.5 | 12.48 |
| 60 | 76 | 8 | 13.42 |
| 60 | 80 | 10 | 17.26 |
| 60 | 85 | 12.5 | 22.35 |
Basic parameters:
1. Rated pssure: 2-5MPa;
2. Pressure pssure: 7MPa;
3. minimum starting pssure: 0.3MPa;
4. Operating temperature: -10 ° C - + 80 ° C (ambient temperature and oil temperature) in a non-freezing environment;
5. Use of media: hydraulic oil;
Custom micro-cylinder, servo cylinder, electro-hydraulic actuators. Miniature Cylinder: Bore 10mm Rod Diameter: 6mm (Piston Cylinder Bore 8mm, Stem Diameter: 4mm) Stroke up to 100mm Working Pressure: 10MPa about Us: DALLAST Technology Co., Ltd. is a trading company specialized in customizing various hydraulic cylinders, The company based on providing customers with a complete design and provide high-quality processed products.
Order Description:
1. Users can according to their own needs and the use of the company's samples within the scope of any order;
2. Users of the piston rod thread size, installation dimensions and other special requirements, please specify the user, negotiate processing orders;
FAQ:
1. How about the payment terms?
We usually accept T/T. other terms also could be negotiated.
2. What is your minimum order?
It depends on what you are buying. Normally, our minimum order is USD5000.
3. Do you accept OEM manufacturing?
Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact cylinder according to your specification and drawing.
4. Can we design our own package or print our own logo?
Yes! Package and logo will be made acording to your requirements.
5. Could we get small quantity samples?
Yes! We understand the quality test is important and we are glad to make the sample for you. The MOQ is 1pcs.
