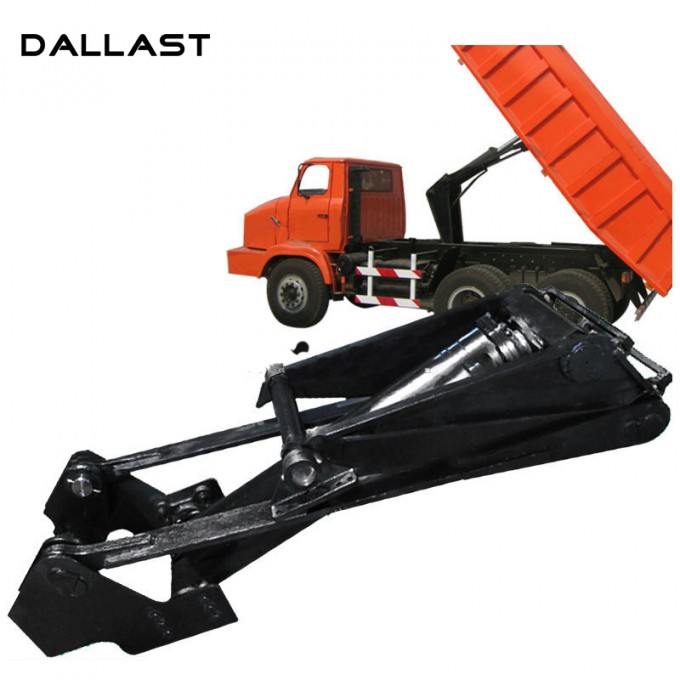

Three Advantages for Hydraulic Cylinder:
Longer serve life.
By optimizing the structure design and reduce bore, increase limit buffer design, reduce the system pssure
fluctuations and pssure shock, extend the service life of the parts of the lifting hydraulic system!
More strong stability.
Stability optimization design, improve the long box lifting high stability, reduce rollover risk!
Lift More.
Compared with other products with lift lifting 15%~20%. Lift larger, more loading more returns! Lighter weight, lift larger, more light!
Custom Hydraulic Cylinder (OEM):
Not only we could manufacture all kinds of heavy duty hydraulic cylinder construction and mining
trucks according to the drawing from customers, but also we could make a design according to
customers'requirements. If you require our engineer to make a design, please advise us the
following specification:
1. Rated pssure
2. Working pssure
3. Test pssure
4. Working condition and environment, for example, temperature, working frequency
5. Pulling force and return stroke force
6. Pulling and return speed
7. Assembly size
8. Seal ring requirements. For example, brand, seal material etc.
9. Tube and piston rod raw material requirements
10. Piston rod surface treatment requirements, for example chromating film thickness,
Surface hardness etc.
11. Painting and other spare parts requirements.
Company Profile:
Dallast Technology Co., Ltdis a hydraulic cylinder, hydraulic support rod and hydraulic system research and development design, the main products supporting construction machinery, agricultural machinery, bridges, dump trucks, excavators and other industry facilities, the company mainly to manufacturing, sales and service in one Professional factory. Company products are exported to Europe and the United States at home and abroad. Companies in accordance with the ISO quality assurance system, the production process in every detail of the attention, adhere to the "details determine the success or failure, improve the quality of the brand" business philosophy, do a good job of quality management. In the introduction of high-quality CNC machining equipment at the same time to Taiwan's technology as the basis for the production, improve product quality.
Product Show:
Application:
Double acting hydraulic cylinder mainly includes the HSG series double acting single piston rod hydraulic cylinder, double acting single piston hydraulic cylinder, double acting double piston rod hydraulic cylinder, double acting telescopic/ sleeve hydraulic cylinder and so on, according to the use function is divided into : steering cylinder, boom cylinder, lifting cylinder, tilt cylinder and quick change cylinder, has the characteristics of connecting mode diversification and buffer device etc.. mainly used in loaders, fork loaders, excavator, cranes and other projects, ships, mining machinery and fire engines, sanitation vehicles and other special vehicles.
| Application | Various Machinery |
| Material of cylinder tube | Stainless Steel |
| Coating | All tubes are chromeplated |
| Working pssure | 5MPa-32MPa |
| Bore size | 40mm-755mm |
| Color | Any color |
| Mouting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001:2008, SGS, TS16949 |
| Warranty | One year |
| Working temperature | -30° C to 80°C |
| Model No | Could be designed |
| Stroke | 200-10000mm |
| Package | Shrink film, pallet, plywood case, carton box |
| Main export market | USA, Canada, South Korea, Russia, Australia, Malaysia, Fiji Island, Kenya, Philippines, Singapore |
| Payment terms | T/T, L/C, D/A, D/P AND SO ON |
| Delivery time | 15-25 days after down payment |
Some models and main technical parameters of double acting hydraulic cylinder of HSG series hydraulic cylinder
| models | strock | bore(mm) | the diameter of rod(mm) | push(KN) | tension(KN) |
| HSGK01-160/90E-131 | 715 | 160 | 90 | 321.7 | 219.9 |
| HSGL01-100/60E-131 | 1200 | 100 | 60 | 125.66 | 87.65 |
| HSGK01-80/50E-131 | 700 | 80 | 50 | 101.79 | 70.37 |
| HSGK01-80/50E-131 | 640 | 80 | 50 | 101.79 | 70.37 |
| HSGK01-80/50/E-131 | 550 | 80 | 50 | 101.79 | 70.73 |
| HSGL01-80/50-131 | 500 | 80 | 50 | 80.43 | 54.98 |
| HSGL01-80/50E-131 | 440 | 80 | 50 | 80.43 | 43.41 |
| HSGL01-63/35E-131 | 200 | 63 | 35 | 50 | 34.5 |
| HSGL01-63/35E-131 | 300 | 63 | 35 | 50 | 34.5 |
| HSGL01-50/28E-131 | 140 | 50 | 28 | 31.42 | 21.56 |
Any types of Machinery Model could be designed according to your requirements.
If you're interested in our products, please contact with us.
Certification:
FAQ:
1. Does your products come with a warranty?
Yes, we have one-year warranty.Duringthe period, we can send you replacementfree of charge ifthere is quality problem.
2. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly sendusyour specificationsand drawings.
3. Can I get samples to test before starting cooperation?
Of course, we would like to produce sample hydraulic cylinder foryour /confirm/iation.
4. How many days will samples be finished?
Generally, 5-7 days for samples making.
5.I want to see yourhydraulic cylinders, where is your factory?
Our factory located inQingdaoCity, Shandong Province.
