| Overall Dimension ( L*W*H ) (mm) | 8450×2500×3310 |
| Wheel base (mm) | 3450+1450 |
| Curb weight ( kg ) | 8800 |
| Max Speed :( km/h ) | ≥90 |
| Engine | Model | WP10.340E32, water-cooled,four strokes,6 cylinders straight in line,turbocharged |
| Fuel type | Diesel |
| Min rate of consuming fuel ( g/(kw.h) ) | 250kw.h |
| Rated Power /rotaing ( hp/(r/min) | 340hp /2200rpm |
| Emission | EUROIII |
| Displacement ( ml ) | 9726 |
| Fuel tanker capacity ( L ) | 400L fuel tank |
| Clutch | Model | 430, Single dry frictional disc,Hydraulic boosting |
| Gearbox | Model | 12JS200T mechanical type,based on Fuller Eaton technology ,12 Forward speed gear. |
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake | Engine exhaust brake,With ABS system |
| Park brake | Potential springs pssing on middle and rear wheels |
| Steering system | Model | TAS85,ZF8098 |
| Suspension System | Rear Suspension | Non-free standing stabilization spring,stabilization suspension, |
| frame | Fish belly shape, variable width, variable sections
based on Germany Benz Technology |
| Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, non-driving steering axle
|
| Middle and Rear axle (Mercedes Benz Technology) | HEAVY DUTY TYPE. Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tire | 12.00R20 radial tires |
| Qty of tire | 11 |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V-35A |
| Starter | 5.4Kw/24V |
Cab
| With one sleeper (NG80 Benz Cabin)
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly; |
Interior trimming:
high back seat for driver, one sleepers, standard sleeper box, heating and air conditioning, high roof box, electric glass riser, standard steering wheel, 24V power, radio (with MP3 ), digital instrument, manual adjustment of headlamps, with central clock.
|

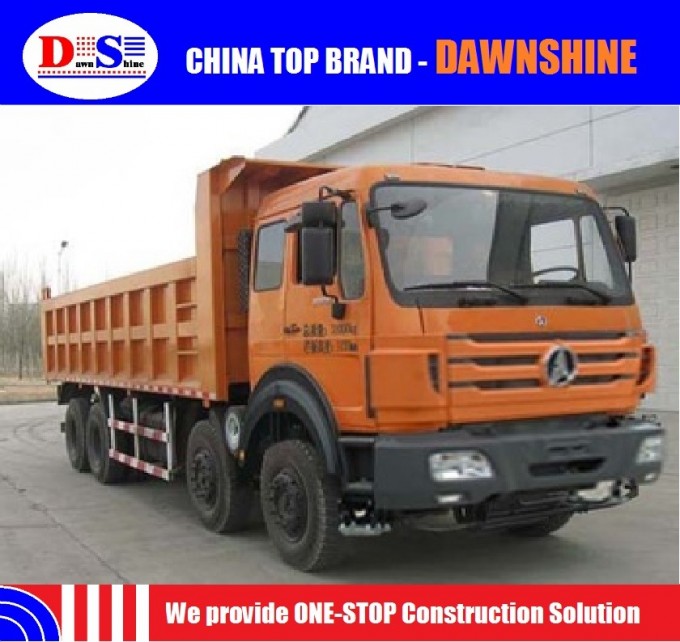

| Tipper /Dump Truck body | 5400x2300x1200mm / 5600x2300x1500mm (8mmx4mm; 10mmx6mm) |
| Tipping Cylinder | HYVA Technology, Front /Middle tipping |
