SAIC-IVECO HonGYAN Company is an experienced heavy duty truck manufacturer. based in Chongqing city, China, we design, manufacture a wide range of heavy duty trucks and special trucks based on heavy duty trucks such as tractor unit, dump truck, cargo truck, tanker truck, and some construction engineering vehicles like concrete mixer truck. SIH is based on China state owned enterprise.
SIH implemented a series of effective quality control measures , introduced advanced IVECO prototype vehicle technology, acquired state-of-the-art production and inspection equipment, employed experienced staff, and strictly implemented the ISO9001:2000 quality management system to monitor every production process. In addition, we provide continuous training to improve employee efficiency, which greatly reduces our production costs, thus enabling us to provide our heavy trucks at lower price.
Chongqing Asia-China Automobile Sales Co., Ltd is a leading sales company of heavy trucks and xcmg equipment products , related accessories,founded in 2002 China, which is one of the biggest authorized agents of Chongqing Hong Yan Automobiles.
We have twelve subsidiary company and offices in China and overseas. The average sales has reached to 2500 units per year in china while the export amount is more than thousands units. And the annual income has surpassed 80 million dollars.Because of excellent quality, flexible sales model, complete unit of accessories, our company set up impssive image in China automobiles field. Recent years, our company is dedicating in extending overseas market. Our products have exported to more than 20 countries, primarily to markets in Vietnam, Tadzhikistan, Saudia Arabia, Algeria, Congo, Nigeria and etc. At the same time, our sales and service team accumulated a lot of experience in international trade and established complete sales and service network in Africa and Central Asia. What's more, we enjoyed excellent reputation among our customers.

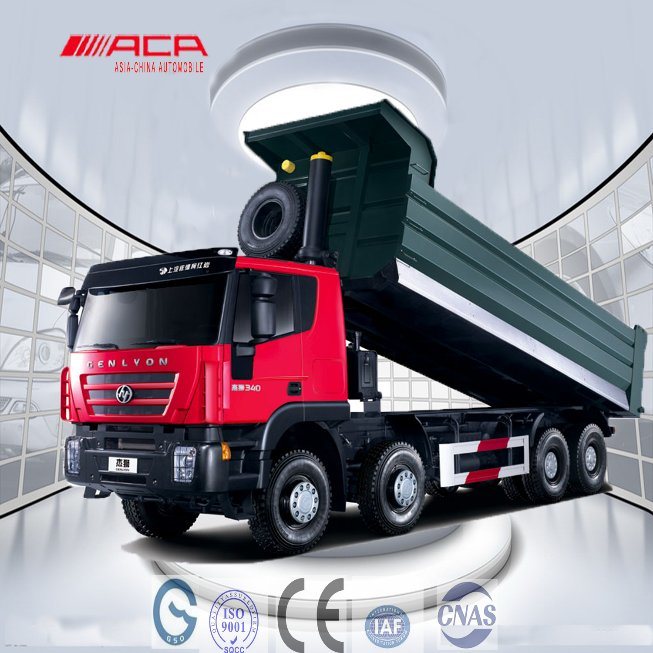

Saic-Iveco Hongyan Genlyon dump truck:
1. Italian advanced design and manufacture techniques;2. Saic-Fiat Ho
ngyan Cursor engine, export back to European and American market;3. Excellent quality, competitive price, with mature spare parts system.
If you have interest in this model, pls feel free to send inquiry, and we will always be glad to quote.
| NO. | SPECIFICATION | PARAMETER |
| 1 | Model | CQ3254HTG384 |
| 2 | Cab | Genlyon Flat-roof Cab, one berth,Left Hand Drive, with AC |
| 3 | Drive | 6×4 |
| 4 | Rated Payload(kg) | 12,780 |
| 5 | Kerb Weight(kg) | 12,090 |
| 6 | Gross Vehicle Weight(kg) | 25,000 |
| 7 | Overall Dimension(mm) | 8,516×2,500×3,510(L*W*H) |
| 8 | Dump Box Dimension(mm) | 5,600×2,300×1,250~1500(L*W*H) |
| 9 | Dump Box Volume (m 3 ) | 16~20 |
| 10 | Thickness of Track Bed | Bottom 8mm,side 6mm |
| 11 | Lifting Cylinder | middle lift/front lift |
| 12 | Max Speed(km/h) | 85 |
| 13 | Wheelbase(mm) | 3,775+1,400 |
| 14 | Engine | Cursor9 380 Saic-Fiat Hongyan |
| 15 | Engine Output(HP) | 380 |
| 16 | Gearbox | 12JSD180T/12JS160T |
| 17 | Steering gear | Germany Technology ZF steering gear |
| 18 | frame | outside width 865mm, longeron cross section 317x(8+8)mm |
| 19 | Front Axle | Iron Cast I-Shaped Axle, Capacity: 7,000 kg |
| 20 | Driving axle | Full floating, double reduction with differential Steyr cast steel driving axle, Capacity:18,000 kg |
| 21 | Tyre | 12.00R20 |
| 22 | Oil Tank | 350L |
