Detailed Description
Tire Truck Radial Tire Heavy Duty Truck Tires, Tbr Tire,Steer Tire Drive Tire Radial Bus Tire Trailer Tires 11R22.5, 12R22.5, 315/80R22.5, 11R24.5, 255/70R22.5, 295/75R22.5, 285/75R24.5, 225/70R19.5, 245/70R19.5, 385/55R22.5, 315/70R22.5,
11.00R20, 12.00R20,385/65R22.5,Competitive Price
Vertical Pattern,suitable for high speed.
Continuous shoulder to pvent irregular wear.
Longitudinal furrow and fine knives in the direction of multi-slot design and make it with excellent heat dissipation and control.
Design and reducing noise performance of treachery moment.
On steering axis shows excellent durability,long service life and low fuel consumption performance.
Apply a good road running bus and a van truck steering wheel and tug boat.
Applicable for bus or truck cornering axle.
Applicable for all round expss way and highway service.
Optimal handing stability and grip on wet road and easy cornering.
Outstanding high speed performance stable road contact from wider tread design,strong wear resistance.
Lamnated tread design lowers crown heat generation under overload and prolongs tires service life.
| Size | Ply Rating | Standard Rim | Load index/Speed code | Section Width(mm) | Overall Diameter(mm) | Max Load(kg) | Pressure(KPa) | Tread Depth(mm) |
|
| S | D | S | D |
| 295/80R22.5 | 16 | 9 | 150/147 M | 298 | 1044 | 3350 | 3075 | 830 | 830 | 17 |
| 295/80R22.5 | 18 | 9 | 154/152 M | 298 | 1044 | 3750 | 3550 | 850 | 850 | 17 |
| 315/80R22.5 | 18 | 9 | 154/151 M | 312 | 1076 | 3750 | 3450 | 830 | 830 | 17.5 |
| 9R22.5 | 14 | 6.75 | 136/134 M | 229 | 974 | 2240 | 2120 | 830 | 830 | 12 |
| 10R22.5 | 14 | 7.5 | 141/139 M | 254 | 1019 | 2575 | 2430 | 790 | 790 | 12 |
| 11R22.5 | 16 | 8.25 | 146/143 M | 279 | 1054 | 3000 | 2725 | 830 | 830 | 14 |
| 11R24.5 | 14 | 8.25 | 146/143 M | 279 | 1104 | 3000 | 2725 | 720 | 720 | 11 |
| 11R24.5 | 16 | 8.25 | 149/146 M | 279 | 1104 | 325 | 3000 | 830 | 830 | 14 |
| 11R24.5 | 16 | 8.25 | 149/146 M | 315 | 1125 | 3250 | 3000 | 830 | 830 | 11 |
| 275/80R22.5 | 16 | 8.25 | 145/143 M | 276 | 1012 | 2900 | 2725 | 750 | 750 | 14 |
| 275/80R22.5 | 18 | 8.25 | 149/146 M | 276 | 1012 | 3250 | 3000 | 850 | 850 | 14 |
| 285/75R24.5 | 14 | 8.25 | 144/141 M | 283 | 1050 | 2800 | 2575 | 760 | 760 | 11 |
| 285/75R24.5 | 16 | 8.25 | 147/144 M | 283 | 1050 | 3075 | 2800 | 830 | 830 | 14 |
| 285/75R24.5 | 16 | 8.25 | 147/144 M | 283 | 1050 | 3075 | 2800 | 830 | 830 | 11 |
| 295/75R22.5 | 16 | 9 | 146/143 M | 298 | 1014 | 3000 | 2575 | 830 | 760 | 14 |
| 295/75R22.5 | 14 | 9 | 144/141 M | 298 | 1014 | 2800 | 2575 | 760 | 690 | 11 |
| 295/80R22.5 | 18 | 9 | 154/152 M | 298 | 1044 | 3850 | 8270 | 850 | 123 | 15 |
| 315/80R22.5 | 18 | 9 | 154/151 M | 312 | 1076 | 3750 | 3450 | 830 | 830 | 15 |

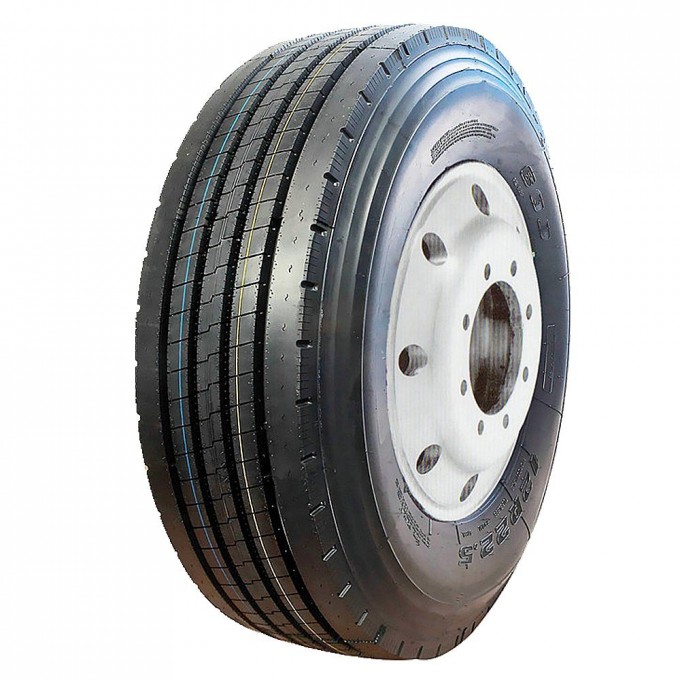

Product Image
