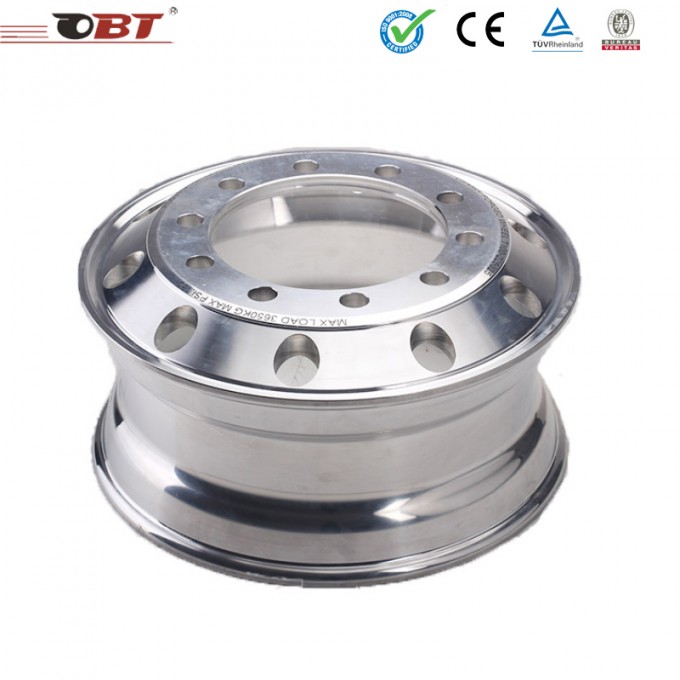

Obt Advanced Truck Trailer Aluminum Rim Wheel 22.5

Obt Advanced Truck Trailer Aluminum Rim Wheel 22.5

Production Features:

1. Have lighter weight, about 1/2 as much as steel wheels.

2. Fuel economy. Forged aluminum wheels are lighter in weight, have better accelerating performance and lower braking energy to save fuel.

3. Can reduce tire and brake drum wear with quicker heat dissipation.

4. Can reduce the maintenance cost of braking system. Quick heat dissipation can protect the braking system and other parts.

5. Higher loading capacity. Compared with steel wheels, forging aluminum wheels have higher loading capacity five times than that of the steel wheels.

6. Can expand the engine longevity by reducing engine load.

7. Have better performance resistance. When under the same impact of external force, forged aluminum wheels suffer far less damage than steel wheels.

Forged Aluminum wheels is suitable for :heavy-duty truck, medium truck, light truck, trailer, dangerous goods vehicle, tank vehicles, low bed vehicles, military and police vehicles, armored vehicles, engineering vehicles, container vehicles, fire vehicles, trailers, special purpose vehicles, long-distance bus, minibus, school bus, and large passenger cars, saloon cars and so on.
Forged aluminum wheels surface treatment:machined finish, outside polished, inside polished, double polished, chrome-plating.

Specification:

Size	OBT Part No.	Inset(mm)	Outset(mm)	P.C.D.(mm)	Holes	PCD(mm)	CBD(mm)
22.5*7.5	OBT22575001	138	162	335	10	32.5	281.2
	OBT22575002	138	162	285.75	10	26.75	220.1
	OBT22575003	138	162	335	10	26	281.2
	OBT22575004	138	162	285	8	32.5R22	221
	OBT22575005	138	162	275	8	32.5	221
	OBT22575006	138	162	275	8	24	221
22.5*8.25	OBT22582501	144	168	285.75	10	26.75	220
	OBT22582503	144	168	335	10	32.5	281.2
	OBT22582504	144	168	335	10	26.75	281.2
	OBT22582505	144	168	335	10	26	281.2
	OBT22582506	144	168	285.75	10	26	220
	OBT22582507	144	168	285.75	10	26	221
	OBT22582510	144	168	335	10	26	281.2
	OBT22582511	144	168	285.75	10	26.75	220
	OBT22582512	144	168	285.75	10	32.5	221
	OBT22582513	144	168	285.75	10	26.75	221
	OBT22582514	144	168	285.75	10	32.5R22	221
	OBT22582515	144	168	285.75	10	26.75	220
	OBT22582516	144	168	285.75	10	26	220
	OBT22582517	144	168	275	8	32.5	221
22.5*9	OBT22590001	152	177	335	10	26.75	281.2
	OBT22590002	152	177	335	10	26	281.2
	OBT22590004	152	177	285.75	10	26	221
	OBT22590005	152	177	285.75	10	26	220
	OBT22590007	152	177	335	10	32.5R22	281.2
	OBT22590008	152	177	335	10	32.5	281.2
	OBT22590010	152	177	335	10	26	281.2
	OBT22590011	152	177	285.75	10	26.75	220
	OBT22590012	152	177	285.75	10	32.5R22	221
	OBT22590013	152	177	285.75	10	32.5	220
	OBT22590014	152	179	285.75	10	26.75	220
	OBT22590015	79	106	285.75	10	26.75	220
22.5*11.75	OBT225117501	120	146	335	10	26.75	281.2
	OBT225117502	120	146	335	10	26	281.2
	OBT225117503	120	146	285.75	10	26	220
	OBT225117504	120	146	285.75	10	26.75	220
	OBT225117505	120	146	335	10	32.5	281.2
	OBT225117506		24	335	10	26.75	281.2
	OBT225117507		24	335	10	26	281.2
	OBT225117508		24	285.75	10	26.75	220
	OBT225117509			285.75	10	26.75	220
22.5*14	OBT24514001	22	53	335	10	26	281.2
	OBT24514002	22	53	285.75	10	26	221

More details pic:
