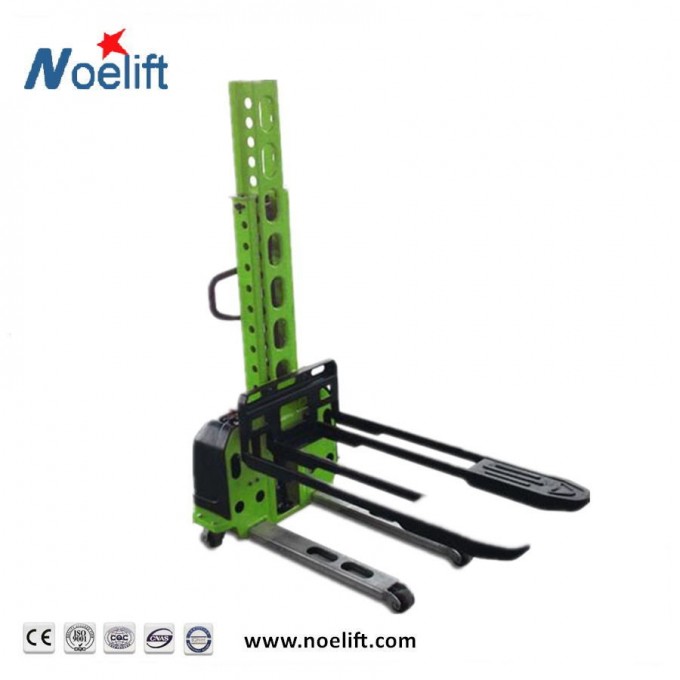

500kg High Grade Self Load Unload Lift Electric Pallet Stacker

Operation video on youtube: https://www.youtube.com/watch?v=M85GuWze6qY


Description

Self loading forklift, load capacity: 500kg, lift height, 800mm, 1m &1.3m optional.
1. Steering Chain auxiliary device;
2. The foot brake, more stable;
3. Sealed batteries free of maintenance;
safe operation and no pollution;
4. Explosion-proof valve design
down more stable and reliable;
5. Over discharge protection, extending battery life.


Parameter

1	Model	CDD05Z
2	Brand/Manufacturer	NOELIFT
3	Operation	Manual Driving, Electrical Lifting
4	Capacity	500Kg	500Kg	500Kg
5	Weight	193Kg	200Kg	219Kg
6	Lift Height	800mm	1000mm	1300mm
7	Height in Lowerd Position	1200mm	1400mm	1600mm
8	Overall length	1600mm	1600mm	1600mm
9	Overall width	786mm	786mm	786mm
10	Fork Length	1250mm	1250mm	1250mm
11	Fork Width	540mm	540mm	540mm
12	Material of Wheels	Polyurethane	Polyurethane	Polyurethane
13	Steering wheel size	100x45	100x45	100x45
14	Loading wheel size	70x60	70x60	70x60
15	Motor Power Lifting	0.7kw	0.7kw	0.7kw
16	Battery	12/45V/Ah	12/45V/Ah	12/45V/Ah
17	Charger Battery	inclusive	inclusive	inclusive
18	Brake Type	Mechanical	Mechanical	Mechanical
19	Lifting speed	80Mm/s	80Mm/s	80Mm/s
20	Descend speed	90Mm/s	90Mm/s	90Mm/s
21	Turning radius	1100Mm	1200Mm	1200Mm
