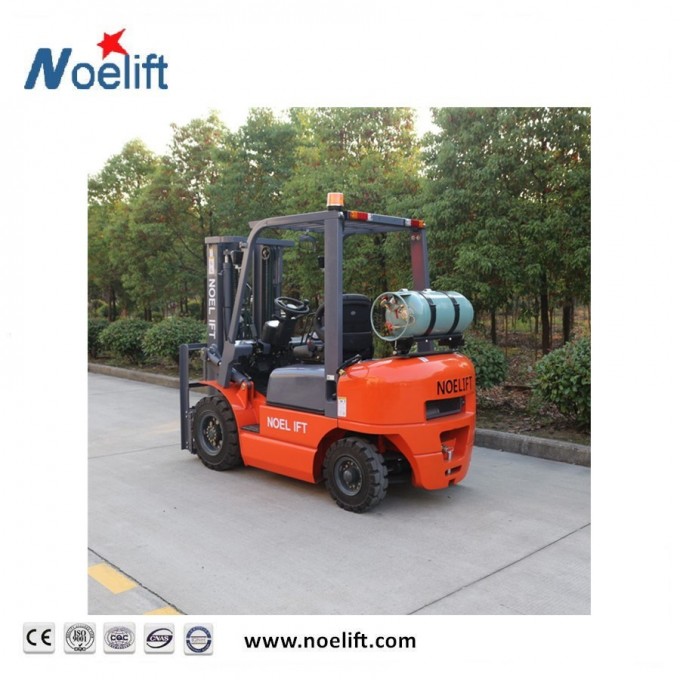

Fuel-Efficient 2ton 2.5ton 3ton LPG Gasoline Forklift Truck Dual Fuel

Product Description

2.0t - 3.5t Gasoline/LPG forklift truck features:

1. Areliable mast
The impact and vibration of mast are reduced significantly by using buffer device. Through finite element analysis plus optimizing the structural parameters, the vibration acceleration is reduced by 40%.

2. More scientific and environmental design
Equipped with high-quality engine, the emission meets the latest European EC and the EPA environmental regulation. The use of Non-asbestos insulation equipment is very effective to lower down the noise.
The innovative design and optimized configuration of the lifting system improve the operator's visibility greatly, and provide aclear and accessible focus of vision to ensure the safety &efficiency of operating.

3. More powerful
Adopt the international electric actuators and makes the truck steering more stable, and output power stronger!

FORKLIFT SPECIFICATIONS

1				NOELIFT
2	Model		Unit	FD30/FG(L)30	FD35/FG(L)35	FD40/FG(L)40	FD50
3	Power type			DIESEL	DIESEL	DIESEL	DIESEL
4	Rated capacity		kg	3000	3500	4000	5000
5	Max lift height		mm	3000	3000	3000	3000
6	Load centre		mm	500	500	500	500
7	Mast extend height		mm	4262	4262	4275	4280
8	Max lift height of fork		mm	3000	3000	3000	3000
9	Mast closed height		mm	2065	2180	2150	2330
10	Free lift height		mm	160	170	150	150
12	Overall length (Without fork)		mm	2682	2693	2895	3105
13	Overall Width		mm	1225	1225	1410	1480
14	Front overhang		mm	479	498	500	565
15	Rear overhang		mm	495	495	495	540
16	Wheel base		mm	1700	1700	1900	2000
17	The height of traction pin		mm	310	310	330	350
18	Min. ground clearance		mm	135	135	130	160
19	Fork Size		mm	1070x125X45	1070x125X50	1070x130X50	1070x150X50
20	The distance between forks		mm	1060/250	1060/250	1290/260	1370/300
21	Tread(front/rear)		mm	1000/970	1000/970	1160/1065	1180/1190
22	Min. Turning Radius(outside)		mm	2400	2420	2700	2780
23	Min. Turning Radius(inside)		mm	200	200	230	270
24	Min. intersecting aisle		mm	2380	2400	2685	3365
26	Speed	Travel (fullload/no load)	km/h	18/19	19/19	18/19	18/19
27		Lifting(fullload/no load)	mm/s	440/480	330/370	350/380	400/450
28		Lowering(fullload/no load)	mm/s	450/500	350/400	350/400	350/400
29	Max.Grade ability(with/without full load)		%	20/20	15/20	15/18	18/20
30	Total weight		kg	4270	4700	5310	6400
31	Weight distribution full load(front/rear)		kg	6543/727	7380/820	8380/930	9540/1360
32	Weight distribution sero load(front/rear)		kg	1708/2560	1880/2820	2120/3190	2630/3770

FORKLIFT DETAILS



FORKLIFT WITH VARIOUS ATTACHMENTS OPTIONAL

such as paper roll clamp, bale clamp, pull/push clamp, tire clamp so on.




Noelift forklifts under ISO9001:2008 and CE norms.

OUR CERTIFICATIONS




NOELIFT FACTORY

Noelift Forklift factory with years experiences, our forklifts already exported to Austria, Saudi, Arabia, USA, Malaysia, Peru so on.
as one of the professional material handling equipment manufacturer, we provide whole product range including diesel/gasoline/LPG forklift truck with load capacities of 1to 10tons and electric/warehouse trucks, which including 1-3.5tons electric forklift trucks, 1-2.5tons electric reach trucks, electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, electric tow tractors, etc. The full range encompassess close to 100 different models.

Welcome to get best material handling equipment solutions from NOELIFT!
We are at your services!
