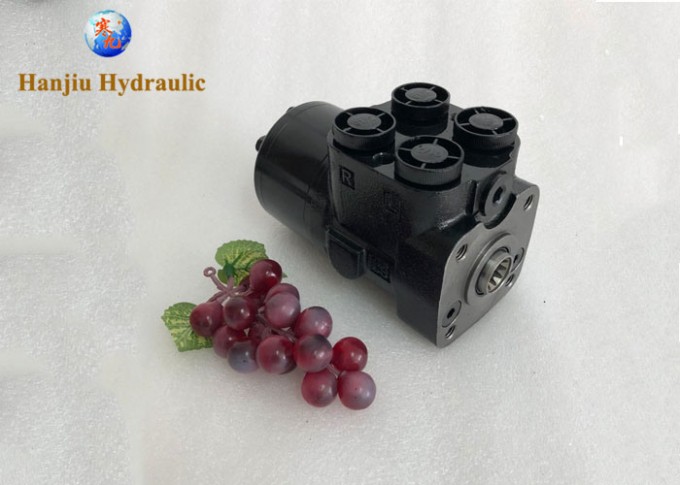

Hydraulic Power Steering For Forklift Delin, Toyota, Komatsu
SCU 101s-1,2,4 series inherits the steering function of 101 series both in structure and principle. The feature of 101s series is to have the following valve functions incorporated inside one housing as follows: the relief valve, the shock valve, the suction valve and the check valve according to the different requirement upon the base of the101 series. This kind of structure is more compact, more convenient in operation.
Features:
101S series hydraulic steering control unit
1. Can match with the OEM number of all machines.
2. Replacement of Danfoss (OSPC), M+S (HKUS/4) series.
3. Including integrated valve (relief valve and checkproof valve)
4.101S Hydraulic steering unit is widely used in the steering control system.
Main Specifications:
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pssure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings (MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings (MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pssure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L(mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Applications:
Hydraulic Steering Control Units (SCU) are widely used in hydraulic rudder of ships, steering of low-speed vehicles, such as tractor, truck, loader, grader, hauler, road roller, forklift ,combined harvester, engineering or road construction machinery etc.
| Hanjiu Hydraulic | Danfoss | M+S | Eaton |
| 101 | OSPB | ||
| 101S | OSPC | ||
| 101S-5T | OSPJ | ||
| 102 | HKU | ||
| 102S | HKUS | ||
| 060 | 45 series |
