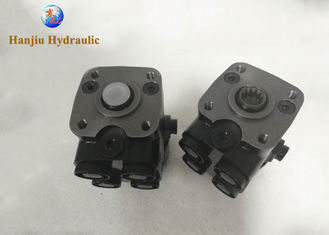

Professional Hydraulic Steering Valve 101S Series Hydraulic Power Steering Pump
Guide unit, hydraulic steering, hydrostatic steering, orbitrol steering valve, are terms for what we call HYDRAULIC STEERING UNIT.
Hanjiu produce hydraulic steering unit, our power unitsare designed for use on low speed vehicles such as forklifts, tractors, loaders, mowers, fishing boats, construction equipment, aircraft ground support vehicles, mining and earthmoving equipment.
Hanjiu power steering = Eaton steering =Charlynn steering =Danfoss steering =John Deere steering =Class steering= Massey Ferguson steering=many more makes commonly found on original equipment machinery.
101S series steering unit are one of our most popular type, founction available ON (open center non-reaction), CN (close center non-reaction), OR (open center reaction) and LS (load sensing).
101S series hydraulic control unit 's shape ,internal structure ,performance are same as Danfoss OSPC**LS, M+S HKUS***, Eaton 401-1***,...
| Product Name | 101S series hydraulic orbital steering valve |
| Displacement (ml/r) | 50, 80, 100, 125, 160, 200, 250, 315, 400ml |
| Max, input pssure (MPa) | 17.5 |
| Max.manual steering torque (N.m) | 130 |
| Relief valve pssure settings (MPa) | 6-----17.5 |
| Shock valve pssure settings | 12---23.5 |
| Max. Cont.pssure in line T (MPa) | 2.5 |
| Power steering torque (N.m) | 1.6---204 |
| Parameters | Series 101S-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pssure(Mpa) | 16 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22 | ||||||||||
| Max.cont.back pssure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Hanjiu' Hydraulics.
