Applications:

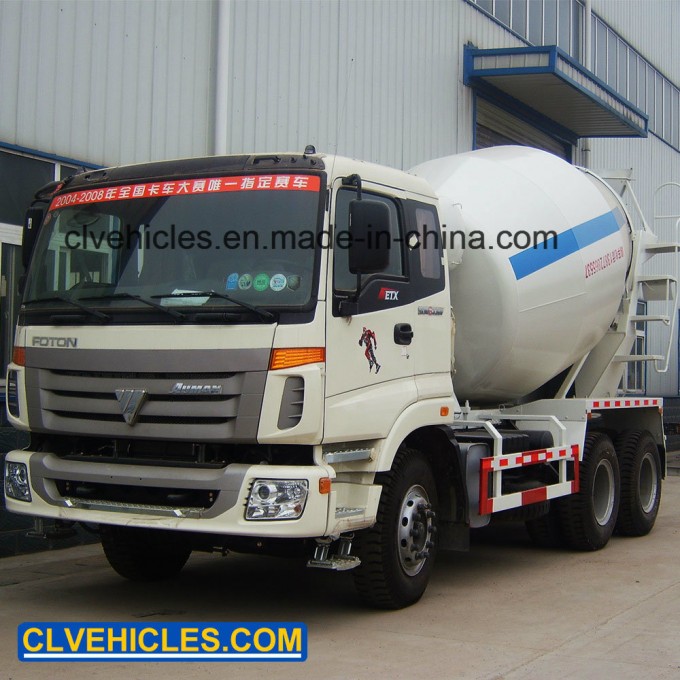

1.Concrete mixer truckis a special truck used to transport concrete used in mixing construction.These trucks are equipped with cylindrical agitators to carry the mixed concrete.During transportation, the mixing cylinder will always be kept rotating to ensure that the concrete carried will not solidify.
2.Mainly used for housing construction, road construction, bridge construction.
Competitive Advantage:
1. Can be customized according to customer requirements
2. High reliability and low failure rate
3. Strong engine performance
4. Low load oil consumption, high strength structural steel for the container.
5. Spare partsare easy to buy
TECHNICAL PARAMETERS| Truck Specification | |||||
| Chassis model | CLW5120GJBA8 | ||||
| Cab | FOTON L1995 Single row cab | ||||
| Driving Type | 4x2 Left/Righthand driving | ||||
| Max Speed (km/h) | 80 | ||||
| Overall dimension(mm) | 7300×2500×3770(mm) | ||||
| GVW(kg) | 12330 | ||||
| Mass in working order (kg) | 7235 | ||||
| Wheelbase(mm) | 3600 | ||||
| F/R track base (mm) | 1810/1800 | ||||
| F/R overhang (mm) | 1250/2250 | ||||
| Approach/Departure Angel | 32/13(°) | ||||
| Tire | 8.25R20 | ||||
| Clutch | Single-plate dry diaphragm spring clutch | ||||
| Steering | Hydraulic steering with power assistance | ||||
| Transmission | 5-speed | ||||
| Axles | Front axle | 3.6T | |||
| Rear axle | 7T | ||||
| Enging | Model | YC4D130-33 | |||
| Fuel Type | Diesel fuel | ||||
| Emissions Standard | Euro3 | ||||
| Type | 4cylinder in line, water cooledturbo charged & intercooled |
||||
| Exhaust(ml) | 4214 | ||||
| Max output power(hp) | 130 | ||||
| Braking system | Service Brake | Compressed air brake | |||
| Park Brake | Spring energy | ||||
| Auxiliary brake | engine exhaust brake | ||||
| Eletric system | 24v | ||||
| Upper-Body specification | |||||
| Drum mixing volume (m3) | 6 | ||||
| Input rate (m3/min) | ≥2.8 | Output rate (m3/min) | ≥1.2 | ||
| Filling rate | 65% | Residualrate | <0.5% | ||
| Reducer Description | |||||
| Reducer brand | Ke Yi (KY-6) | ||||
| Gear ratio | 1:132 | Torque(N . m) | 36000 | ||
| Max input speed(r/min) | 2200 | Output flange Angle(°) | ±5 | ||
| Hydraulic Pump Description | |||||
| Hydraulic pump brand | America brand, SUNNY, HP2VC63HW | ||||
| Max Flow rate (L/min) | 227 | Rated pressure (MPa) | 40 | ||
| Max output power/Rated pressure(Kw) | 151 | Max torque /Rated pressure(N.m) | 401 | ||
| Hydraulic Motor Description | |||||
| Hydraulic motor brand | America brand, SUNNY HAA2FM63 | ||||
| Max Flow rate (L/min) | 315 | Rated pressure (MPa) | 40 | ||
| Weight(kg) | 18 | Max torque /Rated pressure(N.m) | 400 | ||
| Water Supply SystemDescription | |||||
| Water supply type | Air pressure | Working pressure (MPa) | 0.25-0.3 | ||
| Water tank volume (L) | 400 | ||||
Transport
Batch order show
ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.
1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;
2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;
3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.
Our Service
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.
FAQ
Q1: What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the customer’s requirements?
A: Yes, we can produce by your requirements or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
