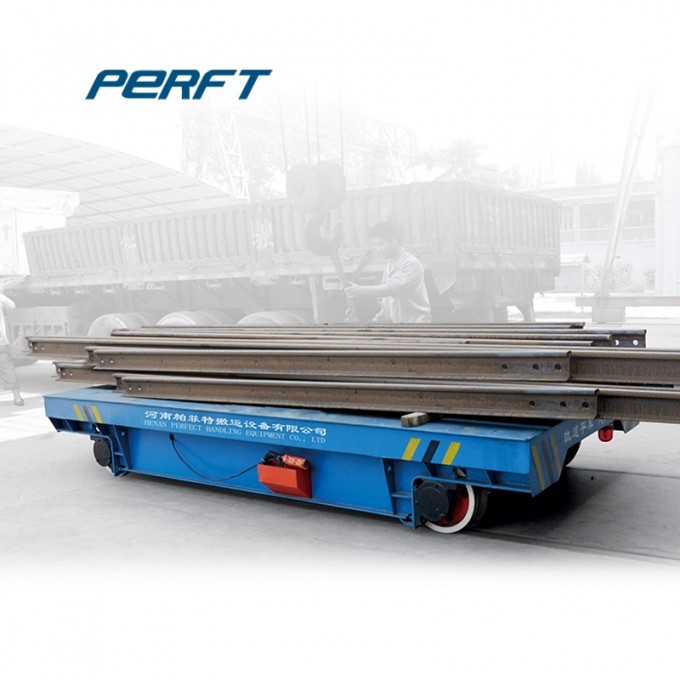

20t Battery Rail Cart Electric Rail Trolley

20t battery rail cart electric rail trolley

Application of Electric Rail Trolley

Assembly Line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
metallurgy industry:With the functions of steady traveling, stepless speed regulation, the cart is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc.
Warehouse transport: The cart is applied to transfer heavy material from one warehouse to another or from warehouse to factory (eg.transfer paper coils in paper mill, transfer large package ), it can travel in all kinds of rails. With automatically operate, it can greatly improve the working efficiency.
Ship industry: Due to the large load capacity, the cart is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.).
The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.
Workshop:The cart is mainly applied in machining workshop, manufacturing workshop, mold workshop to transfer machining parts, finished products, castings etc.
Painting room: The cart should be producing fire during working. In order to avoid explosion, the motor, reducer, electric appliance, pendant and alarm should protected and explosion-proof.




Features of Electric Rail Trolley
----Low noise It causes low noise level.
----Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
----Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
----Suitable for All Kinds of Weight Thebattery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
----Can run on the "C" "S" "L" shape rials Due to the power is from the battery with cable, the running distance is unlimited and can run on types rails.

Product show ofElectric Rail Trolley



Production Process ofElectric Rail Trolley
CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the pliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.


Working Principle ofElectric Rail Trolley
This transfer cart get the power from the battery. The current is supplied to pulling motor through electric control system, which makes the car start, stop, move forward, turn around, change speed, etc. The transfer cart can run on curved rails and can use as ferry car. The battery powered transfer cart is suitable for all kinds of transport occasionsince its travel distance is unlimited and low requirement to the track.



Other Products


Packaging & Shipping

*For lengthis less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.

*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
