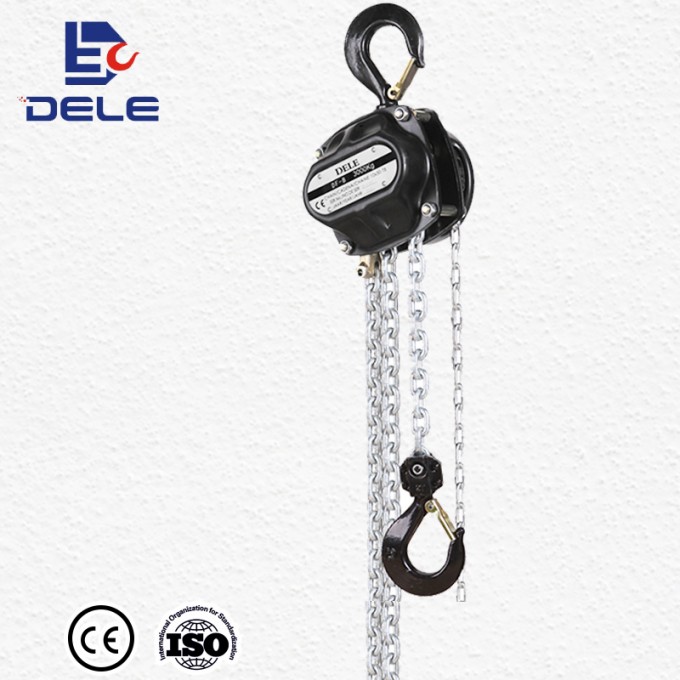

New Design Lifting Tool Df Type Ce Passed Chain Block

DF chain block is new design ,germany Technology
1:suspension and load hooks are made of antiading alloy steel,high strength ,deformation occurs when the cse will be first event of overload without sudden fracture.
2.all spart use high quality material make.and plan coating ,can good be anticorrosive
3.strong the steel cover and plate good to protect inside spart structure
4.roller and gear structure all have cover to good protect,can use in every where.
5.load wheel use good material and producten pcision,good for use load chain accuracy.
6.hook with safety latch securely can roate freely 360degrees .ergonomic handle design engineering so that the hoist is easy to operate.
7:closed design protects the internal components from contamination
8.all parts of the load disc brakes come on by the high quality steel and anti corrosion.

Model	HSH	DF-B25	DF-B50	DF-B100	DF-B150	DF-B200	DF-B300	DF-B500	DF-B1000	DF-B2000
Capacity load	(kg)	250KG	500kg	1000kg	1500kg	2000kg	3000kg	5000kg	10000kg	20000kg
Standard lift	(m)	3	3	3	3	3	3	3	3	3
Load chain Number of falls		1	1	1	1	1	1	2	3	8
Force	(N)	220	240	305	340	360	370	370	380	400
Running testload	(kg)	375	750	1500	2250	3000	4500	7500	15000	30000
Load chain diameter×Number of falls	(mm)	4*12	5*15	6*18	8*24	8*24	10*30	10*30	10*30	10*30
Hang chain diameter×Number of falls	(mm)	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25
Net weight	(kg)	4.5	5.7	11	17	17	26	40	73	125
	(kg/m)	4.8	6	11.5	17.6	17.6	26.5	40.6	73.6	133
	(cm)	24*12.5*12.5	27.5*14.5*15.5	28*17*18.5	31*17.5*22	31*17.5*22	39*19*26	44*24*26	58*46.5*24.5
1	(kg)	0.34	0.541	0.77	1.36	1.36	2.2	4.4	6.6	17.6
1	(kg)	0.9	0.9	0.9	0.9	0.9	0.9	0.9	0.9	1.8
Dimensions(mm)	a	102	122	152	176	176	216	216	244	891
	b	28	34	40	52	52	62	65	70	117
	c	98	118	145	170	170	204	204	204	301
	d	31	31	31	41	41	45	51	54	84
	e	114	119	145	157	157	167	167	167	167
	f	64	65	79	81	81	83	83	83	83
	Hmin	261	311	361	443	443	431	660	705	1026

Payment

Payment term	L/C	l/c amount above 40.000 usd,we can accept L/C at sight
	T/T	EXW	30% T/T in advance,paid the balance before shipment
		FOB
		CIF	30% T/T in advance,paid the balance against copy of B/L
		cfr(c&f)
	paypal	amount lower than 4000usd
	west

Delivery time

15~35days after receiving payment for one container
