Detailed Description
dele clamop
Beam Clamp is a equipment that can quick form hanger or co
nnecting point in I-beam monorail.
The beam clamp should be formed a complete set with chain hoist or other lifting machines.
The beam clamp was installed on the bottom flange of I-beam.
The beam clamp is adopt left and right screw thread co
nstruction for leading-screw.
The scops of adjustments is wide,adjustment is very convenient.
Main parts of support strength are made by alloy steel.
Designed for construction,commercial and industrial vertical or horizo
ntal rigging operations.
Clamp jaw is designed to reduce flange stress by distributing load away from I-BEAM flange edge.
Adjusts with ease to fit a broad range of wide-flange H or standard I beams.
Built-in suspension rod provides lower headroom.
Mount hoist or lift beams with portable light weight clamp.robust all-steel co
nstruction with safety operation.compact size with light,easy to install with minimum headroom,super quick adjustment to any girder width in range. Standard:EN13157
| model | | DL-1000A | DL-2000A | DL-3000A | DL-5000A | DL-10000A |
| capacity | KG | 1000KG | 2000KG | 3000KG | 5000KG | 10000KG |
| beam width | MM | 75-230 | 75-230 | 80-320 | 90-320 | 90-320 |
| n.w | KG | 3.85 | 5 | 9 | 11 | 18 |
| gmw | KG | 4 | 5.2 | 9.3 | 11.4 | 18.5 |
| packing(L*W*H) | cm | 30.6*7.7*24 | 30.6*8.8*24 | 38.5*11.2*32.7 | 38.5*14.4*32.7 | 38.5*13.8*41 |
| Dimensions | A | 75-230 | 75-230 | 80-320 | 90-320 | 90-320 |
| B | 180-375 | 180-375 | 220-498 | 220-498 | 250-514 |
| C | 80 | 90 | 117 | 127 | 139 |
| D | 220 | 220 | 271 | 271 | 271 |
| E | 4 | 6 | 8 | 10 | 12 |
| F | 61.6 | 73.6 | 95.6 | 107.6 | 115.6 |
| G | 17 | 20 | 24 | 27 | 36 |
| H | 25 | 25 | 30 | 35 | 40 |
| M | 45 | 49 | 63 | 67 | 67 |

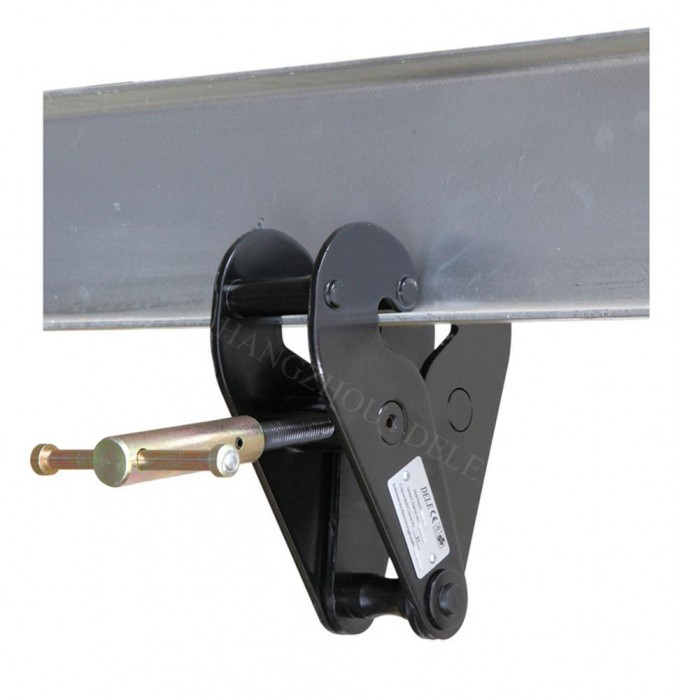

Product Image
