Detailed Description

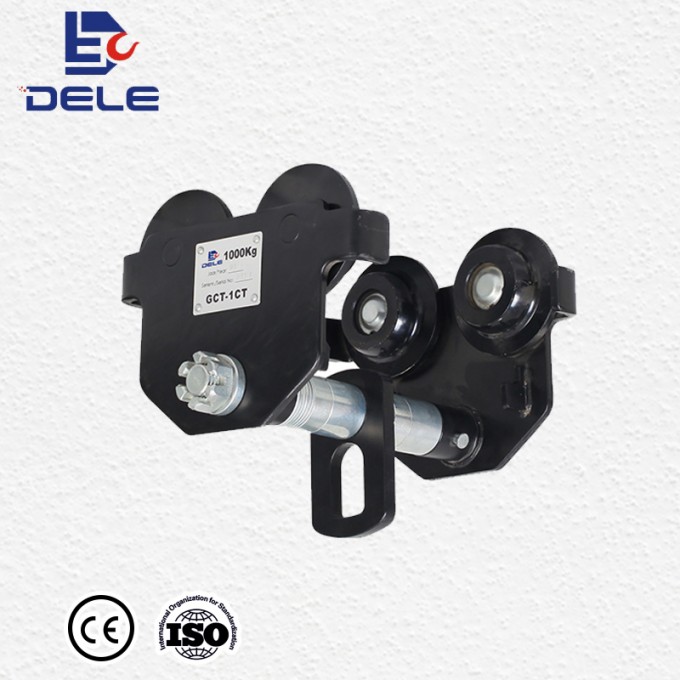

GCT-P Series plain trolley.
Plain trolley,manual trolley
*Capacity from 0.5T-10T.
*Wheels lubricated and equipped with bearings for long life.
*More thickness of the steel plates and strong shaft to ensure the good safety.
*The static test is 4times of capacity, and running test is 1.5times of capacity one by one
*One year warranty.
model | GCT-0.5P | GCT-1P | GCT-2P | GCT-3P | GCT-5P | GCT-10P |
|
| rated load(ton) | 0.5 | 1 | 2 | 3 | 5 | 10 |
|
| test load(KN) | 7.35 | 14.7 | 29.42 | 44.13 | 61.29 | 122.58 |
|
| Min.bending radius(m) | 0.9 | 1 | 1.1 | 1.3 | 1.4 | 1.7 |
|
| dimensions(mm) | A | 195 | 207 | 240 | 252 | 294 | 375 |
| B | 179 | 206 | 233 | 276 | 304 | 389 |
| C | 120.5 | 145 | 176 | 207 | 237 | 306.5 |
| D | 30 | 36 | 42 | 58 | 64 | 80 |
| recommended I-steel(mm) | 75-125 | 75-125 | 100-150 | 100-150 | 125-175 | 125-210 |
|
| packing size(mm) | 210x190X130 | 230x220X150 | 260x250X190 | 300x280X230 | 320x320x260 | 390x410x320 |
|
| weight(kg) | 5.8 | 8 | 14.6 | 24.2 | 38.4 | 78 |
|
