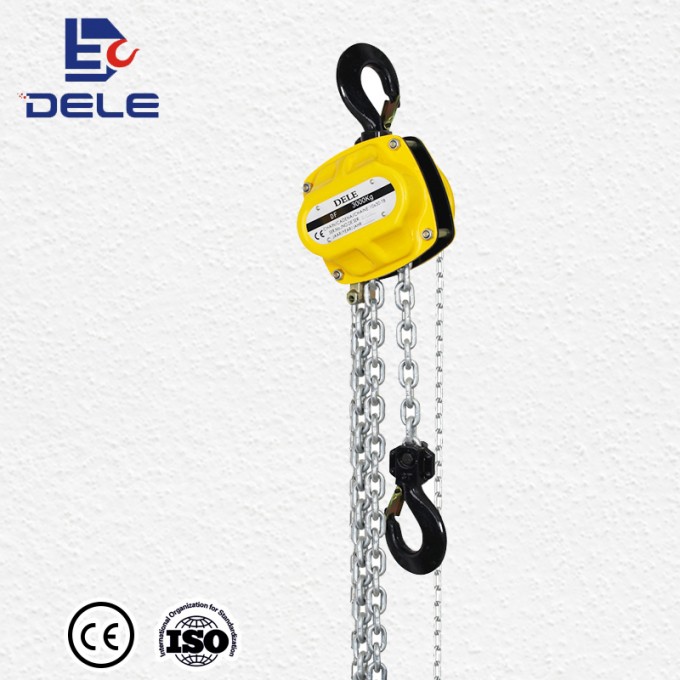

Df 5ton Sigle Fall Df Chain Hoist

Gear:they are innovated symmetrical arrayed highspeed synchronous gears,and are made from international standard gear steel. Compared with common gears,they are more wearable and steadier,and more laborsaving.
Chain:adopts high strong chain and high pcision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands abetter feeling;multi-angle operation(with 45°).
Hook:made of high-class alloy steel,it has high strength and high security;by using newy desing,weight will never escape.
Limit Switch:using limit switch component in designation to protect chain and ensure security.
Components:main components are all made of high-class alloy steel,with high pcision and security.
framework:slight design and more beautiful;with less weight and smaller work area.
Plastic Plating:by adopting advanced plastic plating technology inside and outside,it lookslike anew one after years of operation.
Encloser:made of high-classed steel,more firmly and dexterous.
1:Chain hoist Capacity range from 0.5ton to 50 ton
2:Hoist has overload protection system.
3:Fitted with High strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance
(comply with EN 818, safety factor 4)
4: Suspension and load hooks are made of alloy steel,35CrMo treatedheat and fitted with heavy duty safety
latches, fitting groove and inspection points.
5:Ergonomic handle design so that the hoist is easy to operate.
6:Heavy duty guide rollers for avoiding slippage of load chain.
7: Rugged construction featuring steel gear case and hand wheel cover for hand chain operation

Model	HSH	DF-B50	DF-B100	DF-B150	DF-B200	DF-B300	DF-B500	DF-B500	DF-B1000	DF-B2000	DF-3000	DF-5000
Capacity load	(kg)	500kg	1000kg	1500kg	2000kg	3000kg	5000kg	5000kg	10000kg	20000kg	30000kg	50000kg
Standard lift	(m)	3	3	3	3	3	3	3	3	3	3	3
Load chain Number of falls		1	1	1	1	1	1	2	3	8	12	12
Force	(N)	240	305	340	360	370	370	370	80	380	400	390
Running testload	(kg)	750	1500	2250	3000	4500	7500	7500	15000	30000	45000	75000
Load chain diameter×Number of falls	(mm)	5*15	6*18	8*24	8*24	10*30	11.2*31	10*30	10*30	10*30	10*30	11.2*31
Hang chain diameter×Number of falls	(mm)	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25
Net weight	(kg)	5.7	11	17	17	26	37	40	73	176	258	425
packing weight	(kg/m)	6	11.5	17.6	17.6	26.5	38.5	40.6	73.6	200	285	465
packing size	(cm)	27.5*14.5*15.5	28*17*18.5	31*17.5*22	31*17.5*22	39*19*26		44*24*26	58*46.5*24.5
add 1m load chain N.W	(kg)	0.541	0.77	1.36	1.36	2.2	2.5	4.4	6.6	17.6	26.4	30
add 1m hand chain N.W	(kg)	0.9	0.9	0.9	0.9	0.9	0.9	0.9	0.9	1.8	1.8	1.8
Dimensions(mm)	a	122	152	176	176	216	260	216	244	429	533	570
	b	34	40	52	52	62	65	65	70	125	150	190
	c	118	145	170	170	204	248	204	204	105	105	125
	d	31	31	41	41	45		51	54	376	373	445
	e	119	145	157	157	167	184	167	167	222	220	279
	f	65	79	81	81	83	96	83	83	113	109	140
	Hmin	311	361	413	413	431	576	660	705	1100	1139	15000

Payment

Payment term	L/C	l/c amount above 40.000 usd,we can accept L/C at sight
	T/T	EXW	30% T/T in advance,paid the balance before shipment
		FOB
		CIF	30% T/T in advance,paid the balance against copy of B/L
		cfr(c&f)
	paypal	amount lower than 4000usd
	west

Delivery time

15~35days after receiving payment for one container

We welcome use trade assurance,you`ll enjoy: 100% product quality protection 100% on-time shipment protection 100% payment protection for your covered amount
