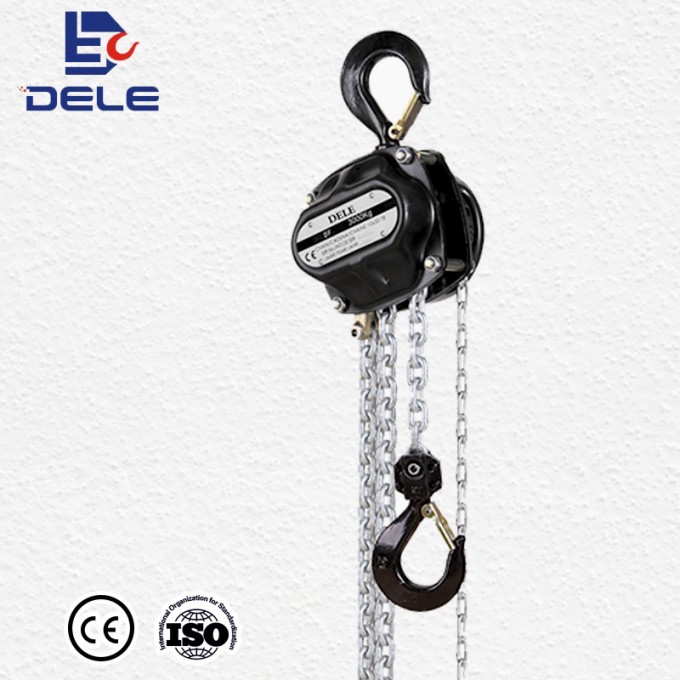

Df Type Chain Pulley Block with G80 Load Chain

Introduct:
1:suspension and load hooks are made of antiading alloy steel,high strength ,deformation occurs when the cse will be first event of overload without sudden fracture.
2.all spart use high quality material make.and plan coating ,can good be anticorrosive
3.strong the steel cover and plate good to protect inside spart structure
4.roller and gear structure all have cover to good protect,can use in every where.
5.load wheel use good material and producten pcision,good for use load chain accuracy.
6.hook with safety latch securely can roate freely 360degrees .ergonomic handle design engineering so that the hoist is easy to operate.
7:closed design protects the internal components from contamination
8.all parts of the load disc brakes come on by the high quality steel and anti corrosion.


DF chain hoist make by standard: EN13157
Chain hoist capacity range from 0.5 ton to 50 ton.
Compact sized design product suitable for all application
Suspension and load hooks are made of alloy steel,35CrMo treated heat and fitted with heavy duty safety latches, fitting groove and inspection points.
Machined chain sprocket and gears provide smoother, more efficient operation.
Hook with safety latch securely can rotate freely 360 degrees.
Ergonomic handle design so that the hoist is easy to operation.
Hoist has overload protection system.
Gears are made up of 20CrMnTi material, which ensures toughness and better strength.
Fitted with high strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (comply with EN818, safety factor 4) *Load chain marked with T8 marks as per EN 818-7.
Heavy duty guide rollers for avoiding slippage of load chain.
Rugged construction featuring steel gear case and hand wheel cover for hand chain operation.
All hoists tested at 1.5 times of WLL


SPECIFICATIONS

Model	HSH	DF-B50	DF-B100	DF-B150	DF-B200	DF-B300	DF-B500	DF-B500	DF-B1000	DF-B2000	DF-3000	DF-5000
Capacity load	(kg)	500kg	1000kg	1500kg	2000kg	3000kg	5000kg	5000kg	10000kg	20000kg	30000kg	50000kg
Standard lift	(m)	3	3	3	3	3	3	3	3	3	3	3
Load chain Number of falls		1	1	1	1	1	1	2	3	8	12	12
Force	(N)	240	305	340	360	370	370	370	380	380	400	390
Running testload	(kg)	750	1500	2250	3000	4500	7500	7500	15000	30000	45000	75000
Load chain diameter×Number of falls	(mm)	5*15	6*18	8*24	8*24	10*30	11.2*31	10*30	10*30	10*30	10*30	11.2*31
Hang chain diameter×Number of falls	(mm)	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25	5*25
Net weight	(kg)	5.7	11	17	17	26	37	40	73	176	258	425
packing weight	(kg/m)	6	11.5	17.6	17.6	26.5	38.5	40.6	73.6	200	285	465
packing size	(cm)	27.5*14.5*15.5	28*17*18.5	31*17.5*22	31*17.5*22	39*19*26		44*24*26	58*46.5*24.5
add 1m load chain N.W	(kg)	0.541	0.77	1.36	1.36	2.2	2.5	4.4	6.6	17.6	26.4	30
add 1m hand chain N.W	(kg)	0.9	0.9	0.9	0.9	0.9	0.9	0.9	0.9	1.8	1.8	1.8
Dimensions(mm)	a	122	152	176	176	216	260	216	244	429	533	570
	b	34	40	52	52	62	65	65	70	125	150	190
	c	118	145	170	170	204	248	204	204	105	105	125
	d	31	31	41	41	45		51	54	376	373	445
	e	119	145	157	157	167	184	167	167	222	220	279
	f	65	79	81	81	83	96	83	83	113	109	140
	Hmin	311	361	443	443	431	576	660	705	1100	1139	15000

Product details





Our Advantages :
A. We are professional manufacturer
B. CE certificate tested by TUV
C.Forges and hear treated load hooks with batch traceability and stretch indicators
D.360 degree hand rotation with stroke to ratchet indicators
E. Double pawl brake linings
F.Forged safety latch
G.Sealed roller bearings

We dele lifting are aprofessional manufacturer of electric chain hoist, chain block, lever block&other lifting equipments! Through more than 8years' dedication, we've been the leading manufacturer of lifting industry in China!
Our company has achieved ISO9001 &CE certifications. Our products have been successfully exported to Europe, America, the Middle East, Africa &Southeast Asia.
We warmly welcome clients from all over the world to cooperate with us&develop worldwide market together! We also hope we can have the chance to establish long-term
