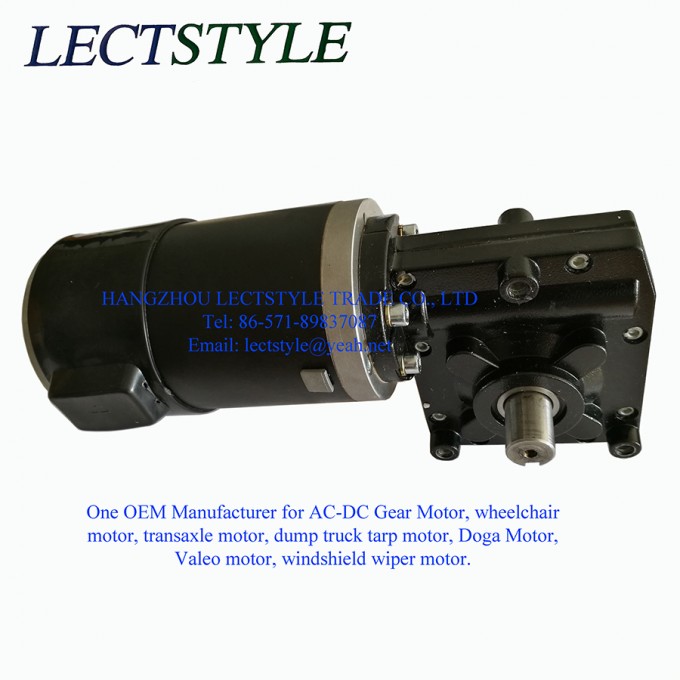

12V 24V 300W Electric Pedestrian Pallet Truck Worm Gear Reduction Motor

We are one OEM Manufacturer for various worm-gear motors, clay target trap machine motor, ATA trap machine motor, powering golf trolleys motor, worm gear motor on electronic jigging fishing real, dump truck tarp motor, dump truck gear motor, polishing concrete floor motor, pedestrian pallet truck motor etc
1. Motor type: Permanent magnet DC
2. Rated speed: 1500rpm-5000rpm
3. Protection: IP44, IP55, IP66
4. Voltage: 12V, 24V
5.Gear Ratio: 30:1, 50:1, 60:1, 75:1
6.Output speed: 35rpm-45rpm, 40rpm-45rpm, 70-80rpm, 100rpm-120rpm, 160rpm-180rpm
7. Output power: 320W, 380W, 500W, 750W, 1000W
8. Gearbox: worm and wheel
9. Insulation: Class F
10. Efficiency: 65%

Our Core range of DC motors and gearboxes are specifically designed to be interchangeable and versatile, this helps us keep lower stock levels while achieving the customization necessary for so many applications. The core offer has also enabled us to offer excellent pricing levels for low quantities, often prototypes are very expensive due to lack of economies of scale we have tried to help with this as much as possible. HANGZHOU LECTSTYLE can offer bespoke units for larger quantities and offer a Supply Chain service where we work closely with our customers to identify the optimal delivery schedule in accordance with OEM production levels. If you are looking for DC motors and gearboxes you have come to the right place, our expert technical sales staff will recommend the best possible option for both your application and your pocket. Contact us now to discuss your application.

LECTSTYLE Motor Related Services Include:
•We can provide AC, DC motors and motor gearbox combinations up to 3000W and 250nm for small and large orders.
•We create bespoke deisgns for orders over 1000 units.
•We deliver & supply on time (In accordance to strict OEM production Schedules)
•We produce motors to your specifications
•Our units undergo rigorous performance and application testing before dispatch
•We help customers with the design of applications
•We hold various motor spares

Why You Should Use LECTSTYLE For Your Motor Requirments?
•Extensive Range
•Manufactured to Spec
•Able to handle any size order large or small
•High Factory Capacity
•Quantity Discounts

Our production workshop:

Model	Voltage	Power	current	torque	output speed	Reduction ratio
240W-90ZYJ-Q	12V	240W, 200W	40A, 20A	22.5N.m	50rpm,100rpm	50:1, 30:1
350W-90ZYJ-08	12V	350W	50A	22.5N.m	75rpm	50:1
220W-80ZJY-Y	12V	220W	25A	11N.m	45rpm	50:1
130W-73ZYJ-AS	48V	130W	4A	7 N.m	88 rpm	25:1
		130W	4A	11 N.m	55 rpm	40:1
320W-73ZYJ-08	12V	320W	45A	36N.m	42rpm	50:1

Our products:


Our assemble workshops:

HANGZHOU LECTSTYLE TRADE CO., LTD is responsible for exporting the above products, and we also import some important products from oversea markets.
Our company has got the right of import and export from the Government department.
It is necessary to get your specific requirement when contacting us, for example of motor, voltage, power, speed, output torque, connecting type and size of shaft, outside structure drawing or relevant pictures etc. And then we will give the accurate offers.
Therefore, hope to get your feedback soon.
