We are one OEM Manufacturer for various worm-gear motors,electric broadcast spader motor, windshield wiper motor, DOGA motor, vehicles-window regulator motor, sweeper motor, wheelchair motor, electric transaxle motor, dump truck tarp motor, BLDC Motor, electric trailer motor, electric golf trolleymotor etc
Note: these parameters are done according to different customer's requirement1. Motor type: Permanent magnet DC
2. Rated speed: 1500rpm-5000rpm
3. Protection: IP44, IP55, IP66
4. Voltage: 12V, 24V
5.Gear Ratio: 30:1, 50:1, 60:1, 75:1 etc
6.Output speed: 15rpm, 35rpm-45rpm, 40rpm-45rpm, 70-80rpm, 100rpm-120rpm, 160rpm-180rpm
7. Output power: 120W, 180W, 250W,320W, 380W, 500W, 750W, 1000W
8. Gearbox: worm and wheel
9. Insulation: Class F
10. Efficiency: 65%

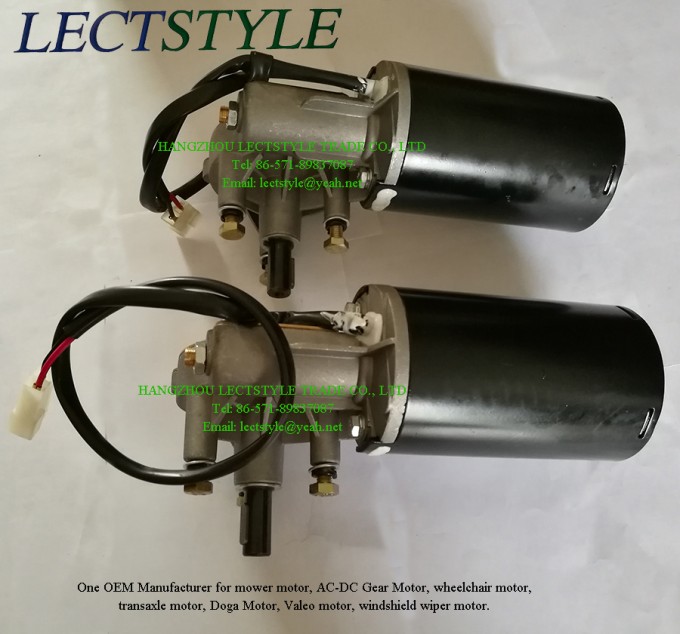

For example, LST1730/273024V/12V 120W Loaders Front Windscreen DC Wiper Motor
Honda, Hyundai, ISUZU, KIA, MAZDA, MITSUBISHI, NISSAN, SUZUKI, TOYOTA, VOLVO,Chevrolet Front windshield wiper motor etc
Features:
1. Swing output;
2. Compact, series design;
3. Co
nvenient installation, small space occupation;
4. Multi functio
nal selectivity combination (Reset, with switch, single or double speed)
Application:
1. Co
nstruction machinery cab.
2. Motorcycle windshield.
3. Agricaltural vehicles.
4. Rear window of all kinds of vehicle.
Our production workshop:
Our inspection workshop:
Our assembled workshop:
Our products:
Our package way:
Raw material of wiper motor: copper, iron, aluminum alloy, plastic, etc.
Working temperature: -40°c - 65 °c
We follow QC/T413-2002 Basic Technical Requirements of Automotive Electrical Equipments, QC/T29090-1992 Automotive Wiper Motor Technology Requirements.
Our Services
Free samples are for serious customer.
Your OEM sample and ODM design are welcomed.
Please let us know in time if there is any problems with our products, we will solve the problem at the first time.
| Technical parameters: |
| Model | | LST1730 | LSD2730 |
| RatingVoltage | UN | 12V | 24V |
| RatingPower | PN | 120W |
| NoLoadCurrent | IN | 6.5A/12A |
| NoLoadSpeed | nN | 40/50±5RPM |
| LoadCurrent | ID | 1.5/1.8A |
| LoadSpeed | nD | 30/45±5RPM |
| WipingAngle | a° | 45,50,55,58,60,65,70,75,80,85,90,95,100, |
| 105,110,115,120,125,000,000 |
| ProtectionCircuit | EMCoroverloadprotection |
| ProtectionClass | | IP33 |
| Weight | W | 3.26kg |
| Wiper motor connector: |
| Connector type | Red wire | Black wire | Green wire | Yellow wire |
| 4 holes 4 wires | Positive | Negative | Low speed | Reset |
