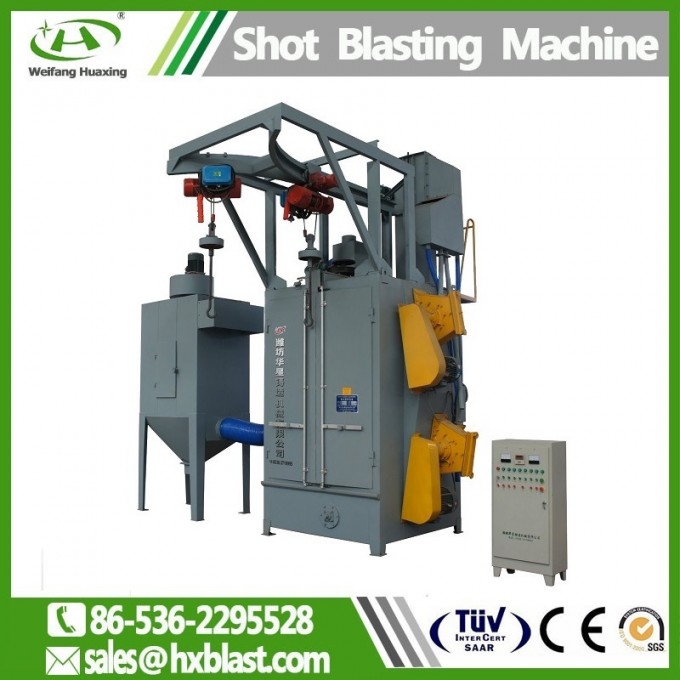

Double Hooks Shot Peening Machine for Bicycle Parts/Frame

Double Hooks Shot Peening Machine for Bicycle Parts/frame
1. Bicycle parts/frame shot blasting machine
2. Hook shot blasting with two blast wheel
3.H shaped steel shot blasting machine



Q37 Series hook shot blasting machine parameters:

Item		Unit	ModelQ376	ModelQ377	ModelQ378	Model Q3710	ModelQ3720
Cleaning room inncer size		mm	1200*1200 *1680	1340*1340* 1680	1680*1680* 2030	1860*1860* 2350	2200*2200* 3500
Workpiece size		mm	φ700*1200	φ800*1200	φ1000*1500	1200*2000	φ1500*2500
Impeller head amount		set	2	2	2	2	3
Shot blasting quantity		kg/min	2*100	2*200	2*250	2*250	3*250
Power		kw	2*7.5	2*11	2*15	2*15	3*15
Hook weight		kg	500	800	1000	1000	2000
Grinding materials		mm	According to craft	According to craft	According to craft	According to craft	According to craft
Productivity	Castings	Pcs/Min	5~12	5~12	5~12	5~12	5~12
	Forgings	Pcs/Min	5~10	5~10	5~10	5~10	5~10
Dust air volume		m/h	5000	5000	6000	8000	10000
Main machine size (L*W*H)		mm	1550*1300 *2260	1750*1500* 2260	2000*1800* 3000	2200*2000* 3060	2400*2400* 4400
Total power (excl.dust removing)		kw	~18	26	34	34	51
Note:1. Cleaning room size can be changed according to customers' requirement and cleaned workpiece size 2. Hanging weight, hook quantity, and hanging ways should be configured according to requirements

Product introduction:
The series hook type cast (spray) pill cleaning machine is based on extensive research at home and abroad according to the actual needs of users and design, it has the following advantages: the international advanced cantilever centrifugal impeller with large quantity of shot blasting and high blasting speed, can significantly improve the cleaning efficiency and obtain the good cleaning quality. The full drawings of the simulated projectile and the shot blasting machine are all drawn by computer aided design (CAD), and the selection and layout of the projectile is more reasonable. The hook has the function of lifting, running and rotating indoors. The cleaning room is protected by the wear-resistant plate, and the service life is greatly improved, the appearance is beautiful and the replacement is easy. The Q75 series increases the shot peening device for further injection of the complex workpiece.
Purpose:
Q37 series hook type shot blasting machine adopts the bottomless pit form, convenient installation, centrifugal blasting machine with large blast volume and high blasting speed of patented technology, advanced structure, good cleaning effect, clean indoor department all adopt wear-resistant cast iron shield protection, the service life is greatly improved, the appearance is beautiful and easy to replace. Suitable for many varieties, surface cleaning and blasting forging and steel structure of small batch fortification, medium and small castings surface adhering sand and core sand surface cleaning; also suitable for heat treatment asurface cleaning with strengthening; especially suitable for long, afraid of collision of the thin-walled cleaning.
Hook Shot Blasting Machine Working:

Weifang Huaxing Machinery Co.,Ltd.

Introduction:
Weifang Huaxing Machinery Co. Ltd. is located in Shandong province Linqu County Road Su Dongcheng Development Zone, covers an area of 33350 square meters, construction area of 16000 square meters, including pparation workshop, assembly workshop, assembly workshop, machining workshop, molding workshop, casting workshop, heat treatment workshop, electrical assembly workshop, atotal of eight workshops, atotal of astaff of 276 people, engineering design personnel 62 people. The annual output of various cast (spray) pill cleaning machine more than 600 sets; molding sand handling and sand regeneration complete production line 40; various types of shot blasting machine more than 5200 units, special cast iron wear-resistant parts 1100 tons; 600 tons of gray iron ductile iron. It is an industrial entity which integrates development, development, design, production and management. It has formed aprofessional manufacturer of metal surface cleaning, complete set of equipment for casting machinery and related accessories production.
It is amember of the enterprise management association of China's machinery industry and the "high-tech enterprise" at the provincial level.
Main product:
Series crawler shot blasting machine
Series hook type shot blasting machine
Series rotary table shot cleaning machine
Series roller table cleaning machine
Series trolley passing cleaning machine
Series of Catenary suspension continuous type
Series stepping electric hoist ring rail type shot blasting machine
Series steel pipe inner wall and outer wall blasting cleaning machine
Molding complete water production line with resin sand and water glass sand
Complete water production line for recycling of old sand
Sandblasting room, sandblasting machine
Various types of high efficiency Shot Peen
Low chromium, medium chromium, high chromium and ZGMn13 special wear resistant cast iron for all kinds of casting machinery and mining machinery; cast steel, ball cast iron and gray cast iron fittings.
Various environmental type cyclone type, cloth bag type, filter cartridge type dust remover.
And to undertake the design, production, transformation and overhaul of the foundry machinery.
Application:
It is suitable for machinery, auto parts, metal products, decoration parts, household appliances, furniture and other industries. Widely used in the current cleaning equipment of shot blasting, because of the reasonable design, convenient maintenance and low cost, it is highly recommended by the broad masses of customers.

Q: Are you trading company or amanufacturer?
A: We are factory.

Q:What are your terms of payment?
A: 100% payment < = 10000USD, >10000 USD 30% T/ Tin advance, balance beforeshipment

Q: What's your p sale service?
A: 1. Advisory support
2. Technical solutions and quotations
3. Visit the customer's factory and negotiate.
4. Customers visit our factory and check the production.

Q: How long is the feedback of your company after sale?
A: In 0-24 hours
Hook shot blasting machine accessories:
