Huaxing Plain Carbon and Low Alloy Precise Steel Casting Pumps Hanging Chain Shot Blasting Machine

Huaxing Plain Carbon and Low Alloy Precise Steel Casting Pumps Hanging Chain Shot Blasting Machine
1. pumps shot blasting
2. Steel castings cleaning equipments
3. Precise steel castings peening
4. Low alloy workpiece cleaning


Catenary shot blasting cleaning machine applied in Pumps areas:

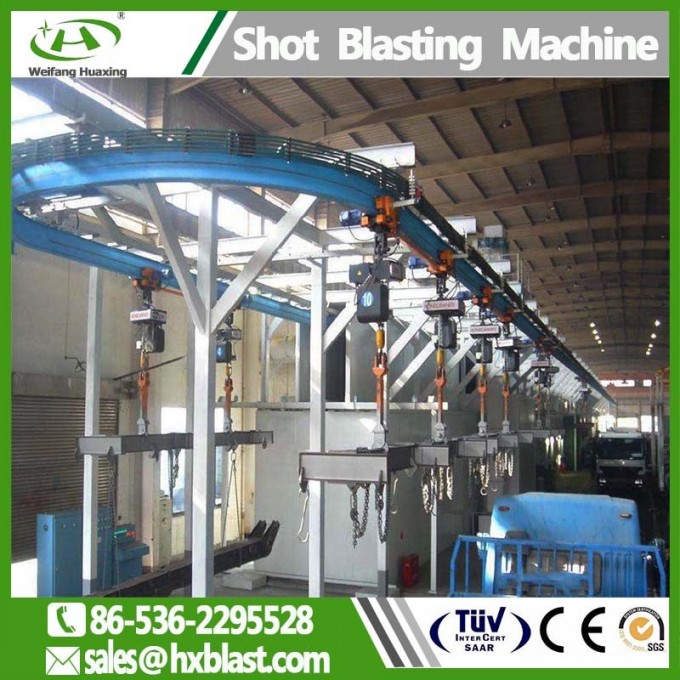

Continuous catenary shot blasting cleaning machineadvantages:
Suspending chained shot blasting machine is most suitable for cleaning small iron castings, steel ones, forgings, and stamped parts, especially for forgings and castings. Its purpose is removing its surface sand burning, iron rust, oxide skin, dirt, and so on, let the metal surface appear metal natural color, eliminating workpiece inner stress, improving its adhesive force when painting, and finally reach purpose of improving quality of workpiece surface and inner.


Continuous catenary shot blasting cleaning machineapplications:
Suspending chained shot blasting machine divides Q38 Series suspending chained continuous ones, and Q48 Series suspending chained stepping ones. Workpiece can be continuous and stepping operation following with suspending chain, with high efficiency, reliable operation, it can realize good cleaning for workpiece whose surface and inner cavity is complex, such as engine block, cylinder cover, motor casing. It is ideal choice for automobile, tractor, diesel engine, motor, valve industries and so on.

Continuous catenary shot blasting cleaning machinespecifications:

Item		Unit	Q382	Q383	Q385	Item	Model Q485
Hook max hang capacity		kg	150	250	500	workpiece size	φ1000*150
workpiece size		mm	φ500*1000		φ700*1500	Max workpiece weight	500kg
Single hook interval		mm	600	800	800	Total air volume	38000m3/h
Sling chain operation speed		m/min	0.5~0.65	0.5~0.65	0.8~0.93	Compssed air pssure	0.4Mpa
productivity		hooks/h	38~49	38~49	60~70	Shot storage content	3200kg
Impeller head		set	4	4	5	Dimension (L*W*H)	15000*5900*6800mm
Shot blasting qty		kg	4*240	4*240	6*250	Impeller head power	6*15kw
Power		kw	60	60	90	Max shot blasting	6*250kg
Sling chain self rotation	driving wheel speed	r/min	0.19~0.25	0.19~0.25	0.30~35
	rotation	r/min	3.1~4.0	3.1~4.0	4.15
	power	kw	1.1	1.1	1.1
Dedusting air volume		m3/h	12000	12000	25600
Total power		kw	~94.5	~94.5	~130

Our shot peening machine factory:


Introduction:
Weifang Huaxing Machinery Co. Ltd. is located in Shandong province Linqu County Road Su Dongcheng Development Zone, covers an area of 33350 square meters, construction area of 16000 square meters, including pparation workshop, assembly workshop, assembly workshop, machining workshop, molding workshop, casting workshop, heat treatment workshop, electrical assembly workshop, atotal of eight workshops, atotal of astaff of 276 people, engineering design personnel 62 people. The annual output of various cast (spray) pill cleaning machine more than 600 sets; molding sand handling and sand regeneration complete production line 40; various types of shot blasting machine more than 5200 units, special cast iron wear-resistant parts 1100 tons; 600 tons of gray iron ductile iron. It is an industrial entity which integrates development, development, design, production and management. It has formed aprofessional manufacturer of metal surface cleaning, complete set of equipment for casting machinery and related accessories production.
It is amember of the enterprise management association of China's machinery industry and the "high-tech enterprise" at the provincial level.
Main product:
Series caterpillar shot blasting machine
Series hook type shot blasting machine
Series rotary table shot cleaning machine
Series roller ball cleaning machine
Series trolley passing ball cleaning machine
Series of suspending chain continuous type, hanging chain step type, suspension chain set Throwing Shot cleaning machine.
Series stepping electric hoist ring rail type shot blasting machine
Series steel pipe inner wall and outer wall blasting cleaning machine
Molding complete water production line with resin sand and water glass sand
Complete water production line for recycling of old sand
Sandblasting room, sandblasting machine
Various types of high efficiency Shot Peen
Low chromium, medium chromium, high chromium and ZGMn13 special wear resistant cast iron for all kinds of casting machinery and mining machinery; cast steel, ball cast iron and gray cast iron fittings.
Various environmental type cyclone type, cloth bag type, filter cartridge type dust remover.
And to undertake the design, production, transformation and overhaul of the foundry machinery.
Application:
It is suitable for machinery, auto parts, metal products, decoration parts, household appliances, furniture and other industries. Widely used in the current cleaning equipment of shot blasting, because of the reasonable design, convenient maintenance and low cost, it is highly recommended by the broad masses of customers.

Q:Are you atrading company or amanufacturer?
A:We are factories.

Q:How long is your delivery time?
A:It is generally 5-15 working days if the goods are in stock. Or 15-60 days if the goods are not in stock, it is based on the quantity and machine model.

Q:What are your terms of payment?
A:100% payment < = 10000USD, 30% T/ Tin advance, balance beforeshipment >10000 USD

Q:What's your p sale service?
A:1. Advisory support
2. Technical solutions and quotations
3. Visit the customer's factory and negotiate.
4. Customers visit our factory and check the production.

Q:How long is the feedback of your company after sale?
A:In 0-24 hours
