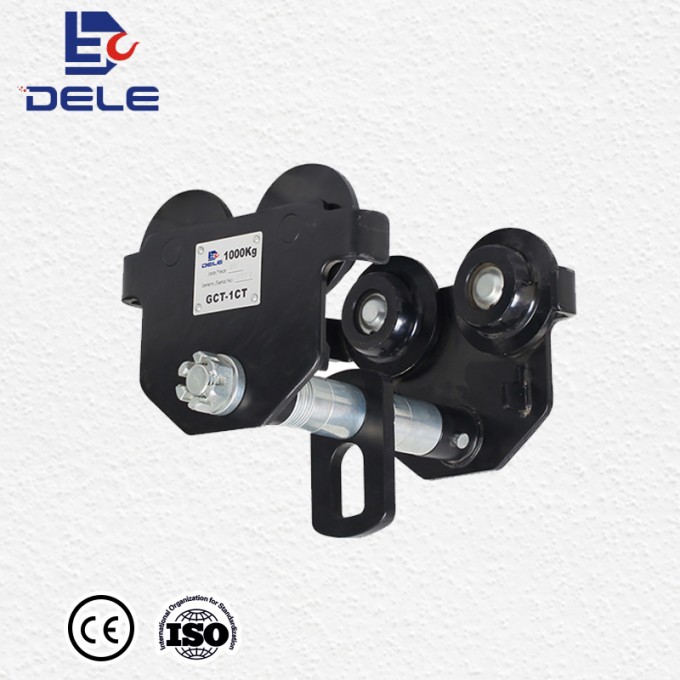

Supply 20t Gct Trolley Hand Truck

Use:this series of hand monorail car drive by hand catenary, walking the i-steel rail on the bottom flange of the hand chain hoist or other lifting machinery hanging at the bottom of the car, can be composed of manual lifting transportation vehicles, device on the straight or curve of monorail overhead lines or manual single beam, bridge, cantilever crane, widely used in factories, mines, docks, docks, warehouses and room to install the machine, such as lifting goods, especially suitable for no power equipment maintenance work.
Features:1. Job security, easy maintenance. 2. Compact structure, small size for installation; Wheel rim spacing can be simple and easy adjustment according to the requirements of track width, easy to use. 3. The wheel is equipped with rolling bearings, high transmission efficiency and small hand pull. 4. The wheel tread with special shape, can 1:6 and inclined rail surface under the slope or flat road on the surface of rail. 5. The wheels design with rim, can drive on with small curvature radius corners.

model		GCT-0.5A	GCT-1A	GCT-2A	GCT-3A	GCT-5A	GCT-10A	dimensions(m)
								A	B	C	E	F	K
rated capacity(t)		0.5	1	2	3	5	10	264	216	195	31	~3	110
test load(KN)		6.25	1	25	37.5	62.5	125	335	260	239	32.5		136
MIN.RADUS OF CURVE(M)		0.9	12.5	1.1	1.3	1.4	1.7	371	300	286	31		161
adjustable beam width(mm)		64-152	64-203	88-203	102-203	114-203	125-203	393	345	336	35		185
N.W(KG)		8.6	15.4	23	40	50	97	436	390	393	37		220
