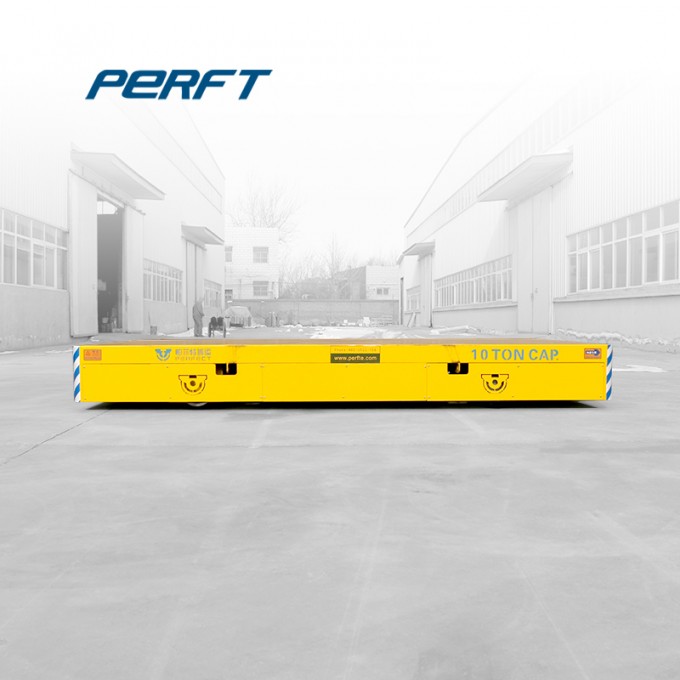

Rail Transfer Wagon Trolley for Heavy Duty Delivery

Rail Transfer Wagon Trolley for Heavy Duty Delivery


Introductionof Rail Transfer Wagon TrolleyOur BDG series rail guided transfer trolley get its power from railway. The 380V alternating-current is transformed into safe current 36V. The current collectors mounted on trolley get the 36V current from the railway and transmit it into electronic box and thus to make the car start, stop, move forward and move backward. Combined with PLC system, full automatic operation is available. It's widely used, life long, safe and flexible.



Production Process ofRail Transfer Wagon Trolley
CNC Cutting
The steel plate is transported from warehouseto CNC cutting workshop for cutting.
Preliminary Assembling
Workers putthe cut steel plate together according to the design drawing.
Welding
Weld the steel plate with automatic welding machine after the pliminary assembling.
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be testedwithout loadand then with load. After the inspection, the cart will be transported to storage area.


Advantages ofRail Transfer Wagon Trolley
Maybe you will have a consideration before buying a car, I recommend you our products to you strongly for the following reasons:
Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Ourvehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.



Parameter ofRail Transfer Wagon Trolley

Model		BDGZ-2t	BDGZ-16t	BDGZ-30t	BDGZ-50t
Rated Load(t)		2	16	30	50
Table Size (mm)	Length(L)	2000	4000	4500	5500
	Width(W)	1500	2000	2200	2500
	Height(H)	450	500	600	650
Wheel base(mm)		1200	2800	3200	4200
Rail Inner Gauge(mm)		1200	1435	1435	1435
Wheel Diameter(mm)		270	350	400	500
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	50	50
Running Speed(min)		0-25	0-20	0-20	0-20
Motor Power(kw)		1	2	3.5	5
Transformer Power(KVA)		3	6.8	10	20
Transformer Quantity		1	1	1	1
Running Distance(m)		70	70	70	50
Max Wheel Load(KN)		14.4	64.5	174	343.8
Reference Weight(t)		2.8	5.5	8	14.6
Recommended Rail Model		P15	P24	P43	QU100

Factory and Customer Visit
We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO.
Currently, our products not only have been sold inChina, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc.We are becoming more and more popular around the world and get high evaluations from our cooperators.
